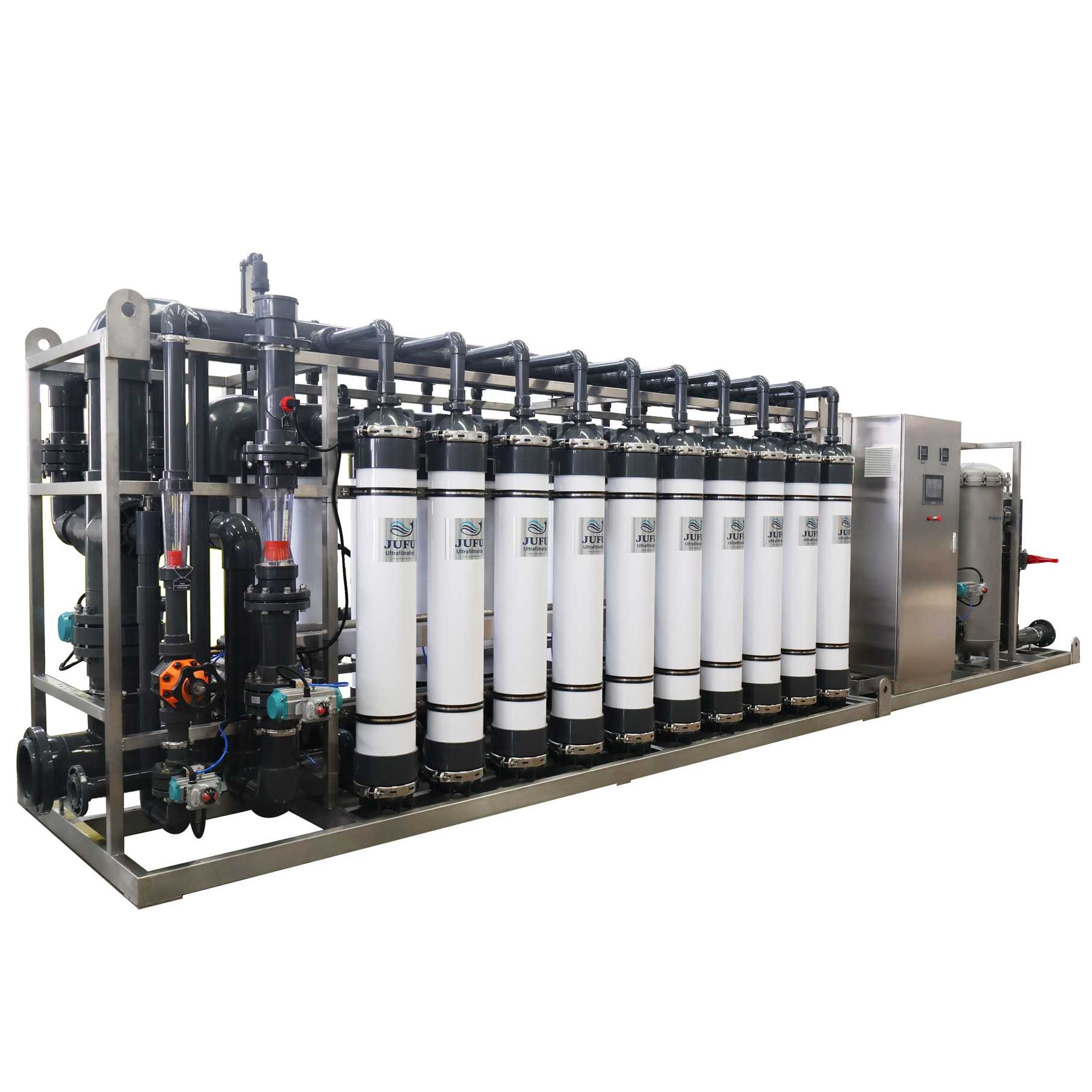

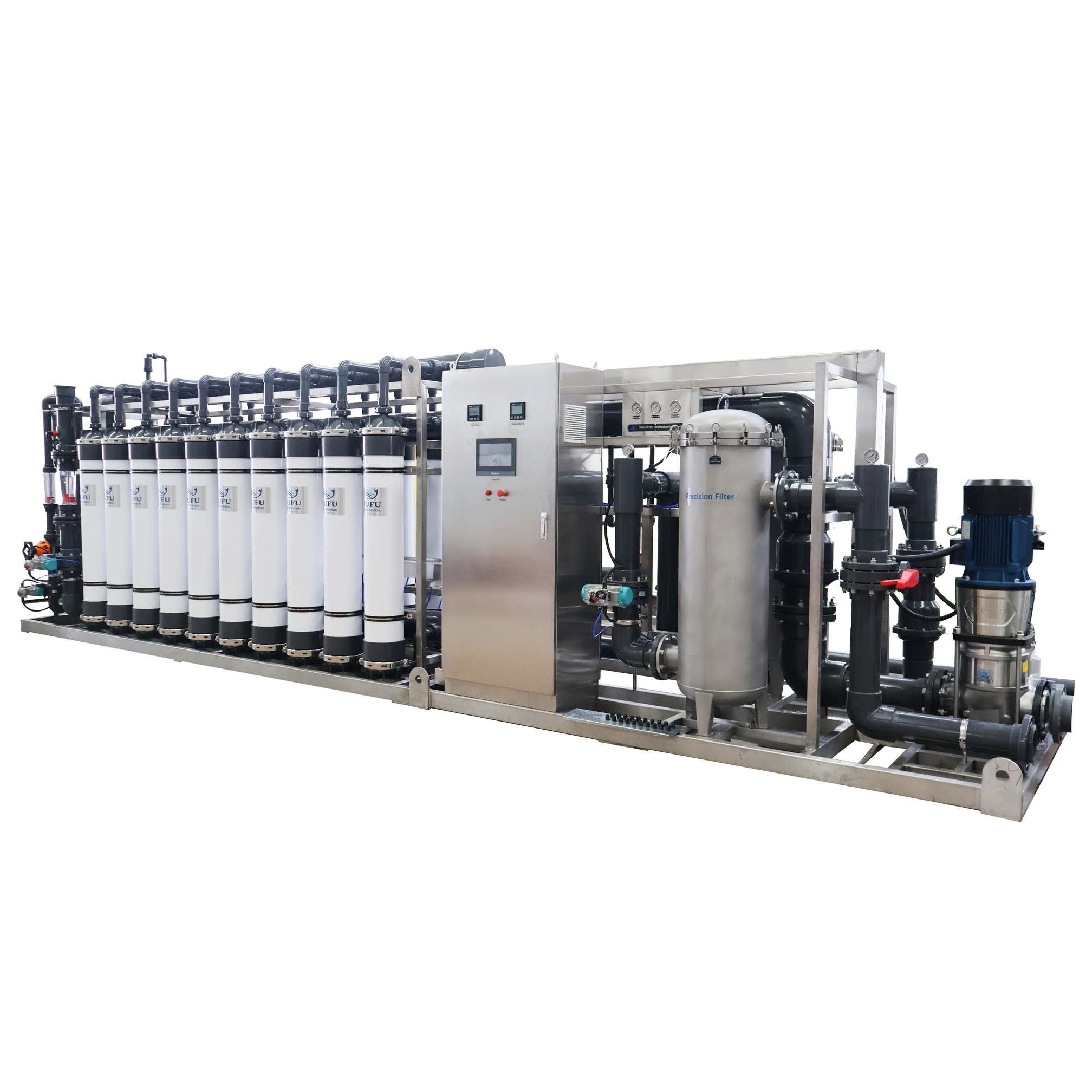

50TPH Ultrafiltration Water Purification System
1.Model: JFUF-50T
2.ISO9001 & CE certified
3. Capacity: 50ton/hour
4. Membrane type: PVDF
5. Control type: PLC control
6.CIP control type: Auto
7. Applicable industries: Water factory, Hotels,Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Food & Beverage Shops
8. Pre-shipment testing: Provide
9. Installation guidance: Online Video meeting
10. Warranty: 12 months
11. Package: Wooden case
12. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
Ultrafiltration System in Golf Irrigation
Ultrafiltration systems remove suspended solids, colloids, bacteria, and viruses from water, providing pretreatment for irrigation systems. This helps reduce nozzle clogging, extend equipment life, and ensure the quality of irrigation water.
By adopting ultrafiltration systems, golf courses can significantly enhance the quality of irrigation water and the reliability of irrigation systems while reducing environmental impact.

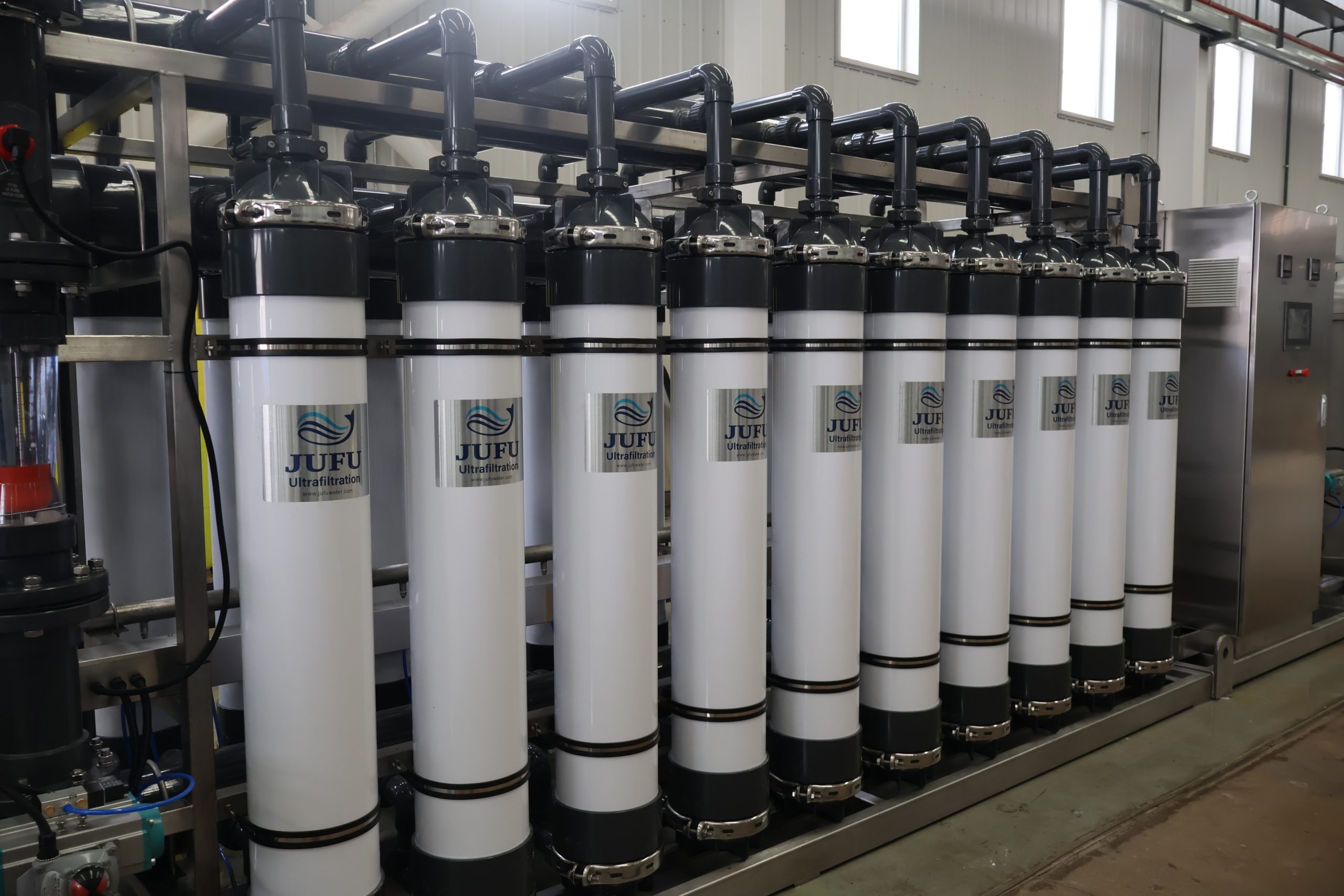

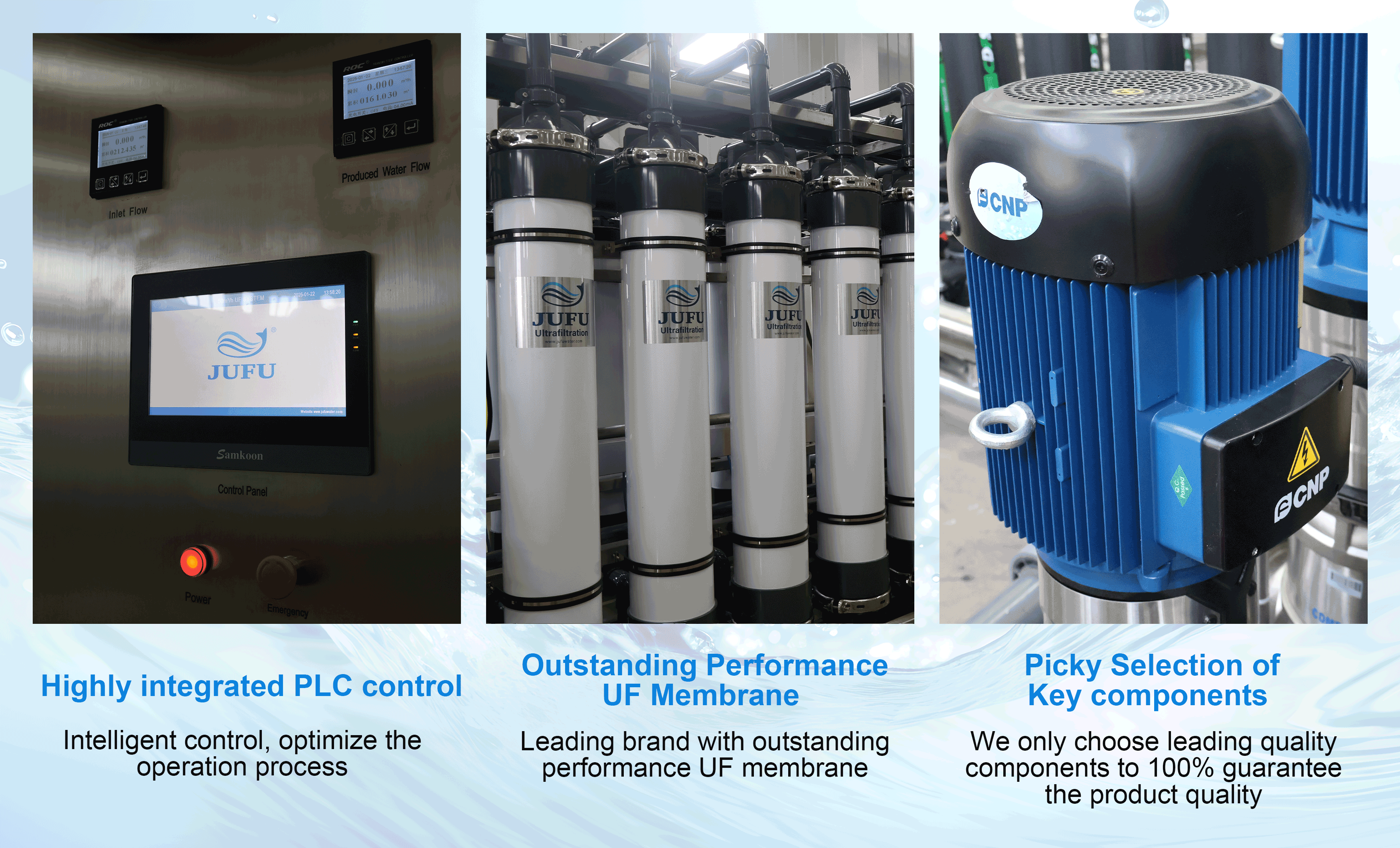

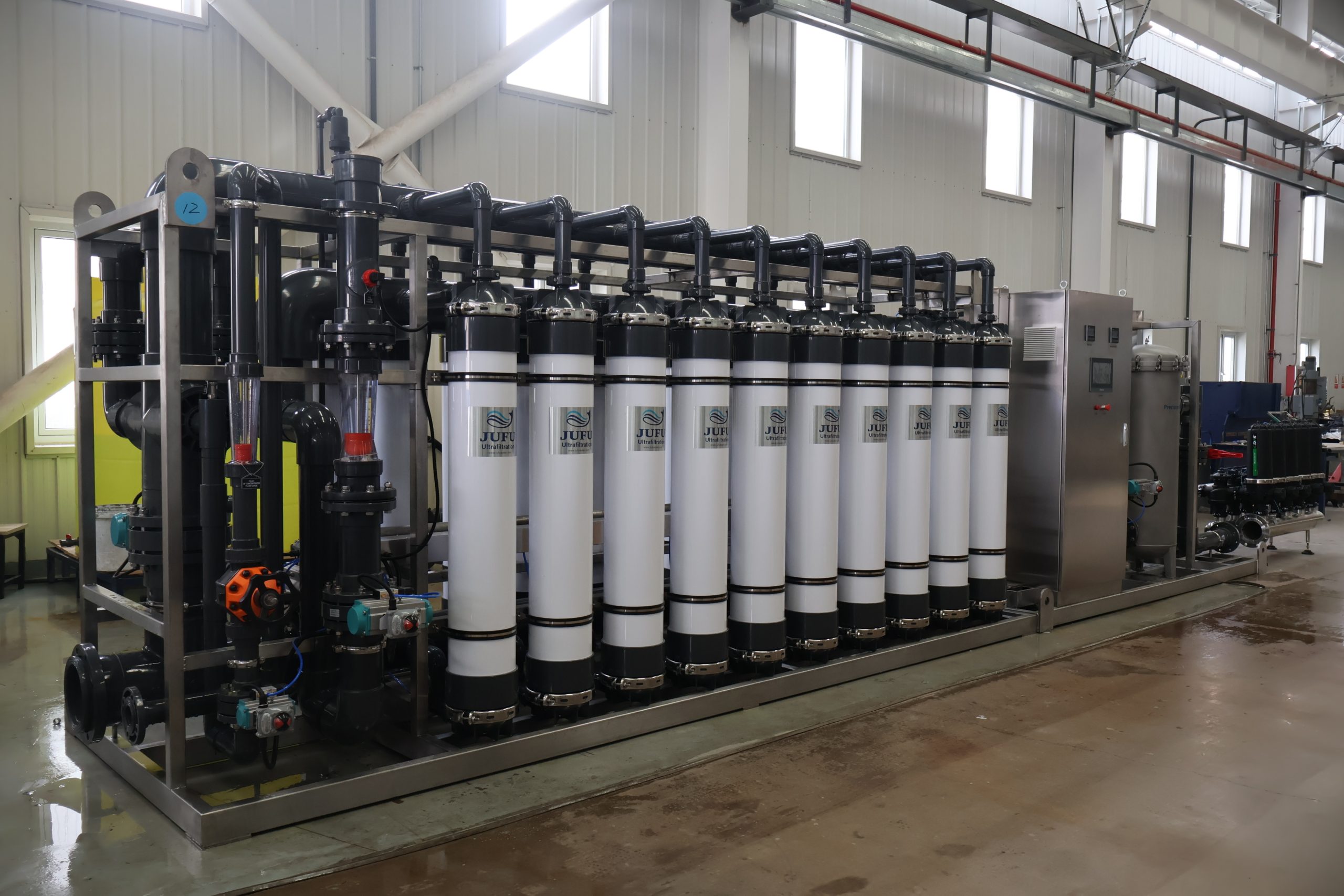

The details of 50TPH Ultrafiltration system
Specification of Ultrafiltration system
| Model | JFUF-50T | Membrane size | 10″ |
| Membrane Type | Outside in | Membrane material | PVDF |
| Recovery Rate | 95% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 0.02-0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Feed Water Quality | Turbidity＜50NTU Free Chlorine Concentration<1.0mg/L SS＜50mg/L | Power Consumption | 33KW/11KW |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control |
| Features | With backwash pump, cleaning pump.The ultrafiltration membrane can accurately retain tiny impurities in
water,including bacteria, viruses, colloids and most suspended solids, etc., which ensures the purity and safety of the effluent water.
|
||
Work Flow Chart
Application advantages of ultrafiltration systems
- Improve Irrigation Efficiency：By removing impurities from the water, ultrafiltration systems reduce nozzle clogging and enhance the overall efficiency of the irrigation system.
- Protect the Environment：By removing pollutants from the water, ultrafiltration systems help minimize environmental impact and protect the ecosystems surrounding the golf course.
- Reduce Maintenance Costs：Reducing nozzle clogging and equipment damage lowers the maintenance costs of the irrigation system.
Selection and Maintenance of Ultrafiltration System
- When selecting an ultrafiltration system, consider the quality of the water source, irrigation needs, and budget. For example, ultrafiltration systems can effectively remove impurities from water sources with high solid content, reducing damage to the irrigation system.
- Regular maintenance of ultrafiltration systems is key to ensuring their long-term stable operation, including regular cleaning and filter replacement.
