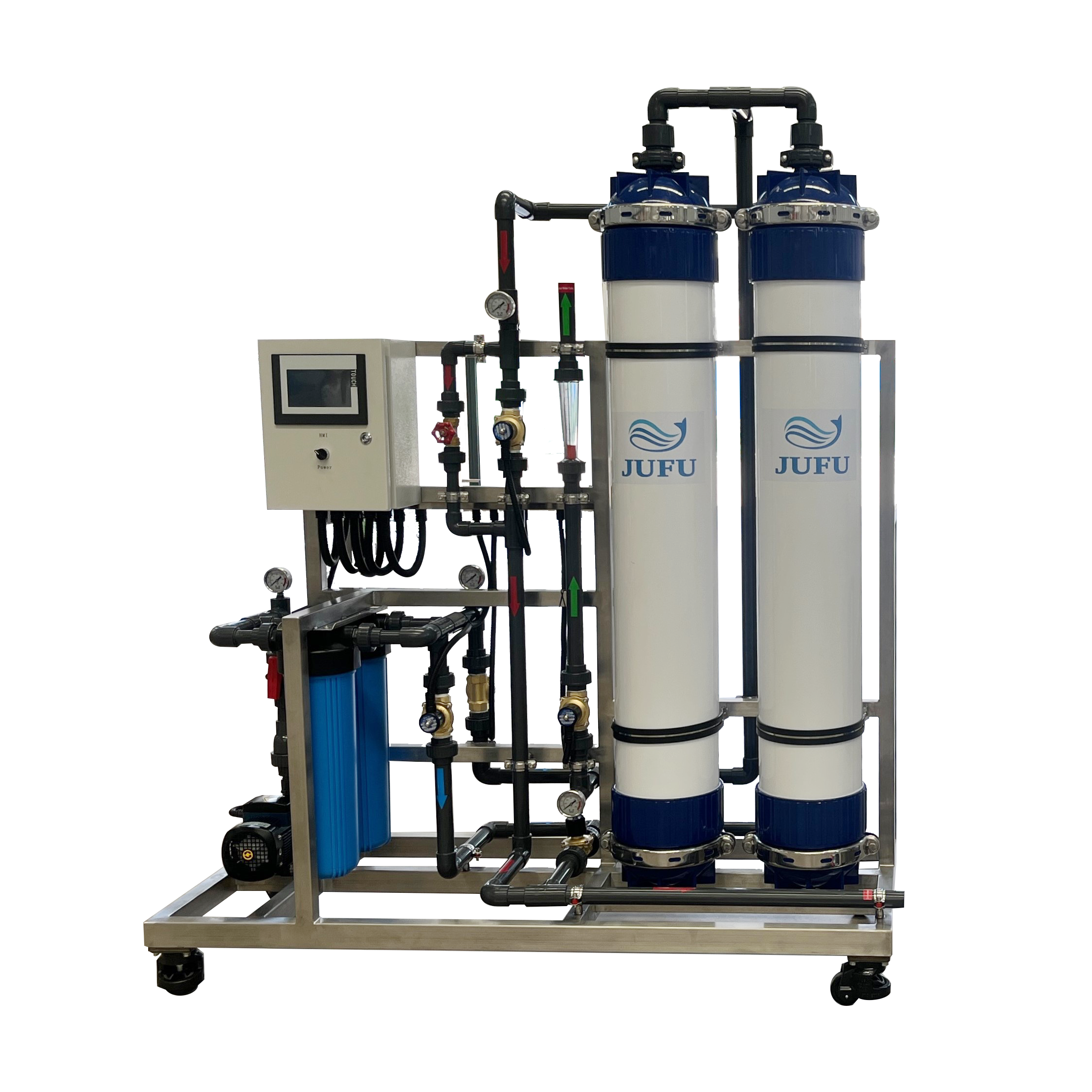

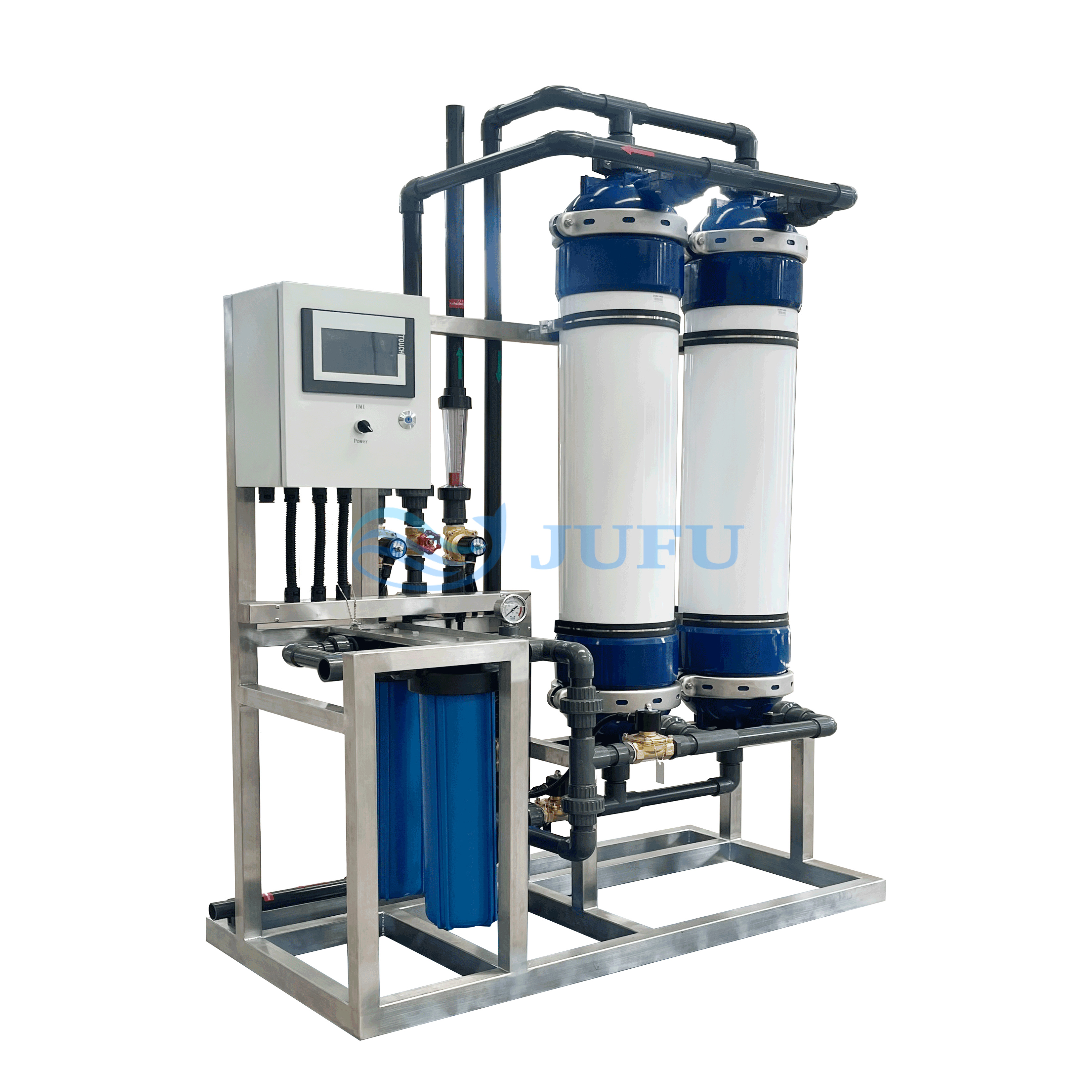

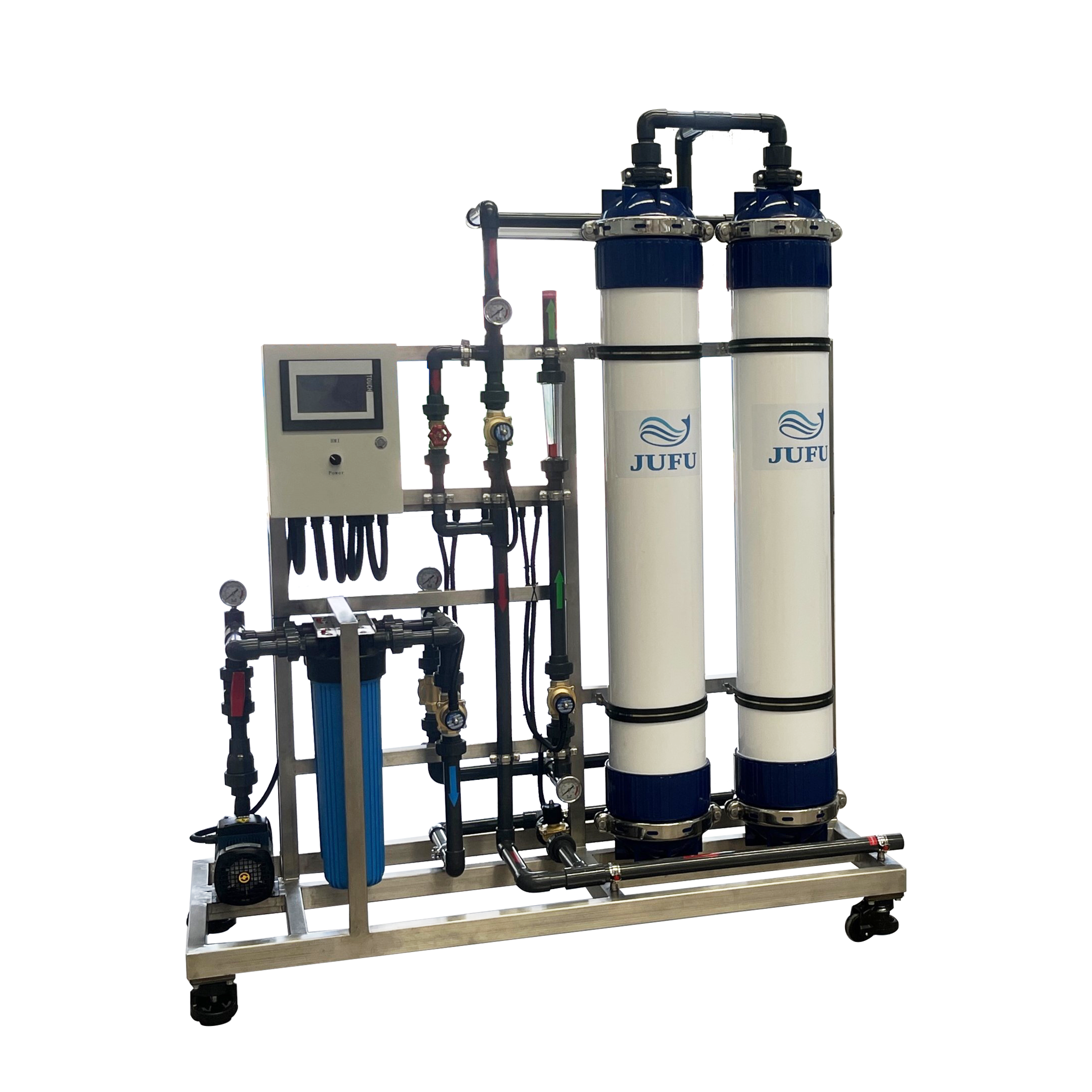

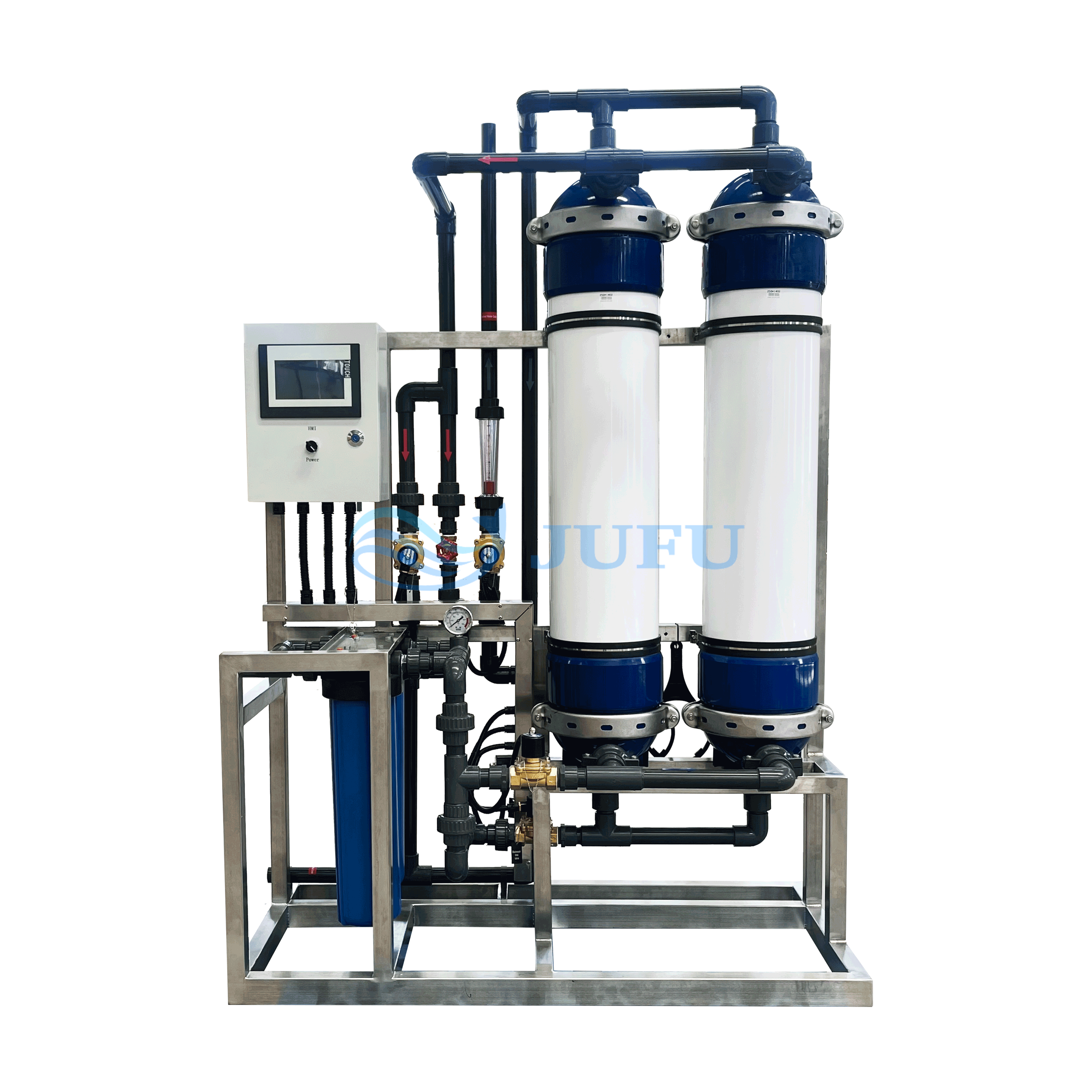

4000LPH UF Water Treatment Plant
1. Model: JFUF-4000L
2. ISO9001 & CE certified
3. Capacity: 4000liter/hour
4. Membrane type: PVC
5. Control type: Touch control
6. Applicable industries: Water factory, Hotels,Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Food & Beverage Shops
7. Pre-shipment testing: Provide 7. Installation guidance: Online Video meeting
8. Warranty: 12 months
9. Package: Wooden case
10. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
UF Equipment feed water requirements
The feed water should have a continuous residual chlorine content of less than 1.0 mg/L.
The feed water should not contain anti-foaming agents.
The feed water should not contain algae.
The feed water should not contain settable solid impurities, polymers or abrasive particles.
The influent water should not contain silicone lubricants or other chemicals containing a silicone base.
The feed water should not contain ozone.
The feed water should not contain organic solvents or any other agents that cause damage to the membrane material or structure.

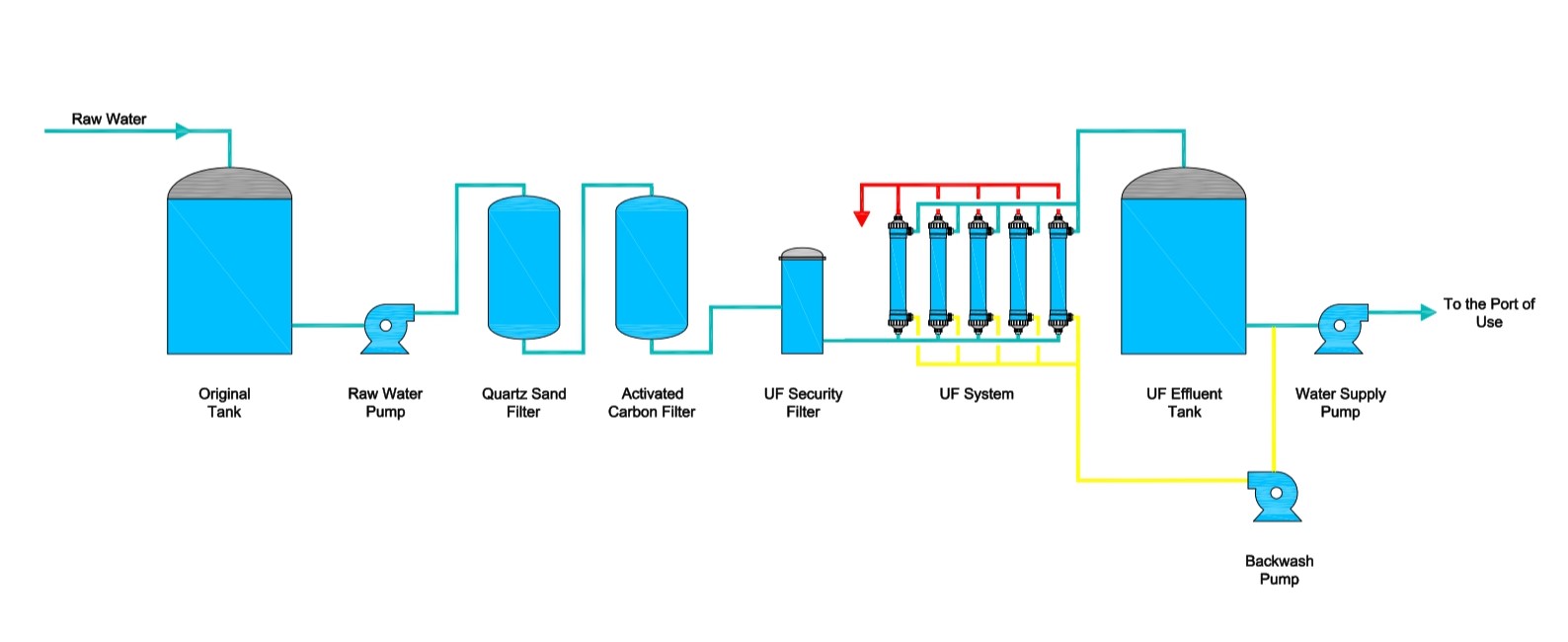

Ultrafiltration flow chart
Specification of ultrafiltration
| Model | JFUF-4000L | Membrane size | 10” |
| Membrane Type | Inside out | Membrane material | PVC |
| Recovery Rate | 95% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Feed Water Quality | Turbidity＜50NTU
Free Chlorine Concentration<1.0mg/L SS＜50mg/L |
Power Consumption | 1.5kW |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control |
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||
Ultra-Filtration system Advantages
- High precision and good water quality
Gradient membrane pore structure, lower water resistance, outer dense cortex.
Extreme 0.03um membrane pore, good quality of produced water.
- External pressure structure, easier and more thorough cleaning
External pressure structure, easier and more thorough cleaning Membrane module adopts external pressure structure which is not easy to be clogged, with better water flow distribution, larger filtration area, higher dirt-holding capacity, which makes module cleaning easier and more thorough.
- Constant flow mode, simple operation
Membrane modules are often operated in a constant flow mode, and the differential pressure of the permeable membrane will gradually increase with the operation time.
At this time, the flux can be restored by means of regular backwashing, gas washing and chemical cleaning.
- Permanent hydrophilicity and high resistance to contamination
Hydrophilic polymer modification, high flux of produced water
Anti-bacterial nanomaterials for better anti-pollution properties.

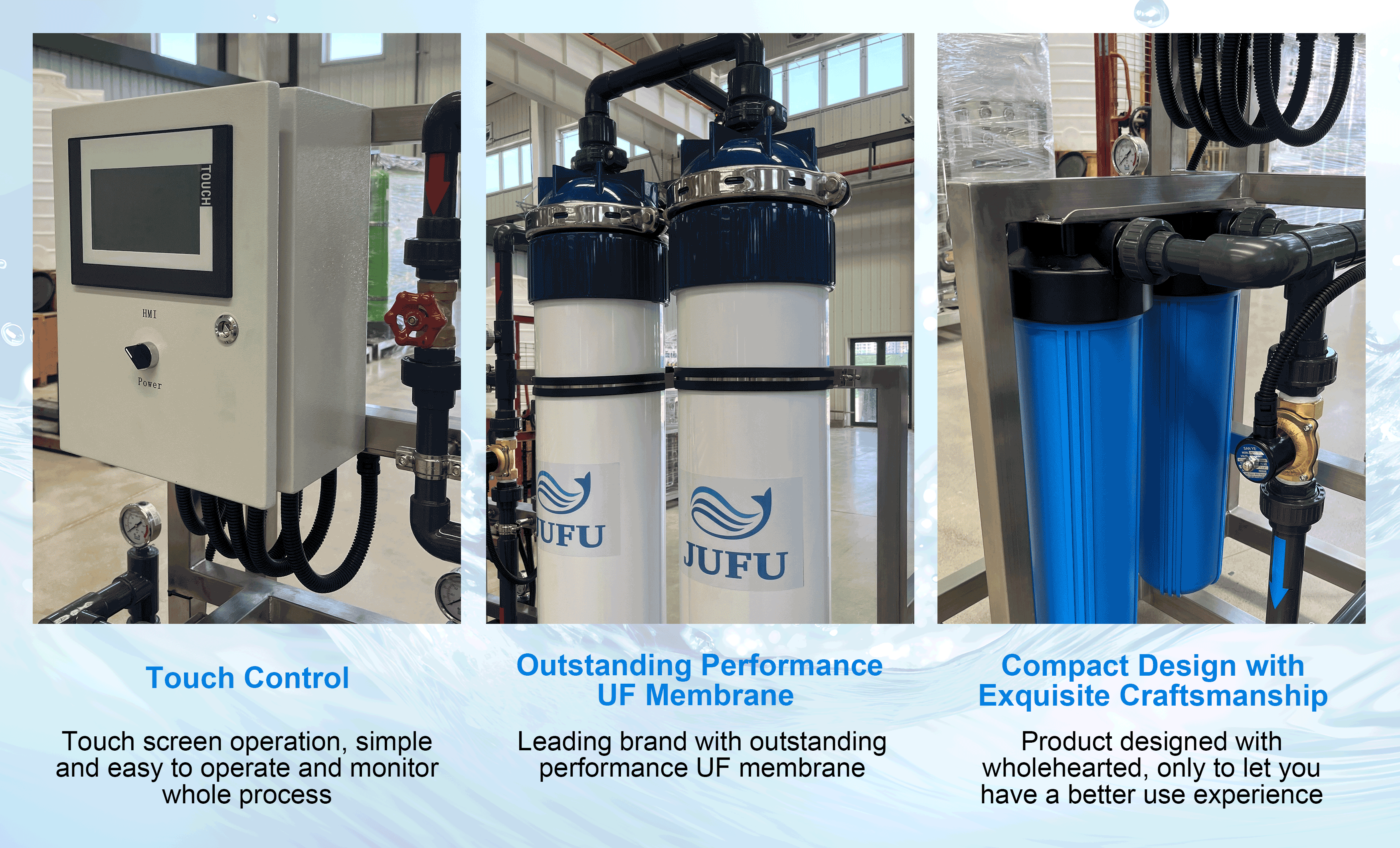

The details of 4000LPH Ultrafiltration system
Common Causes of Ultrafiltration Damage
- Aging of the filter cartridge: the high efficiency ultrafiltration membrane will be aging after a long time of use, thus reducing the filtration efficiency.
- Cartridge clogging: poor water quality or more suspended solids in the water will lead to clogging of the cartridge, making the ultrafiltration membrane can not work properly.
- Broken filter cartridge: installing or dismantling the filter cartridge with force will lead to broken filter cartridge, which will affect the filtration effect of ultrafiltration.
- Inconsistent water quality of the filter cartridge: Some ultrafiltration cartridges are designed for specific water quality, using non-standard water quality may lead to damage to the ultrafiltration.
