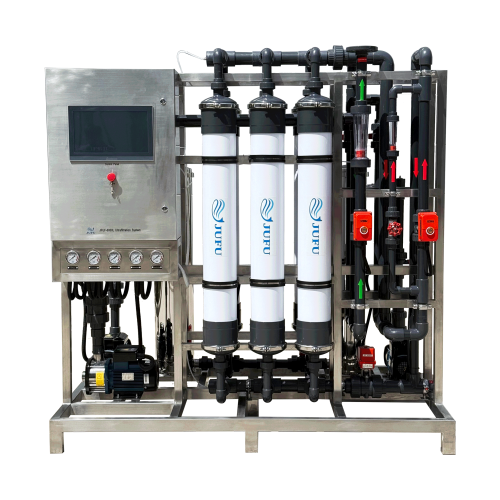

1000LPH PLC Touch Control Ultrafiltration Water Filtration System
1. Model: JFUF-1000L
2. ISO9001 & CE certified
3. Capacity: 1000liter/hour
4. Membrane type: PVC/PVDF
5. Control type: Touch control
6. Applicable industries: Water factory, Hotels,Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Food & Beverage Shops
7. Pre-shipment testing: Provide
8. Installation guidance: Online Video meeting
9. Warranty: 12 months
10. Package: Wooden case
11. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
1000LPH Ultra Filtration Water Treatment System (with Pre-treatment & PLC Touch Control)
High Efficiency | Intelligent Control | Stable Operation | Energy Saving & Environmentally Friendly
This system uses advanced ultrafiltration (UF) technology, combined with a pre-treatment unit and an intelligent PLC touch control system, to ensure pure, safe water quality and efficient automated management, applicable to a wide range of industries and scenarios.
Advanced Ultrafiltration Technology
The system adopts high-quality ultrafiltration membrane, which can remove suspended solids, colloids, bacteria, viruses, macromolecules, organic matter and other impurities in the water, while retaining minerals beneficial to the human body, to ensure that the water is clear and safe.

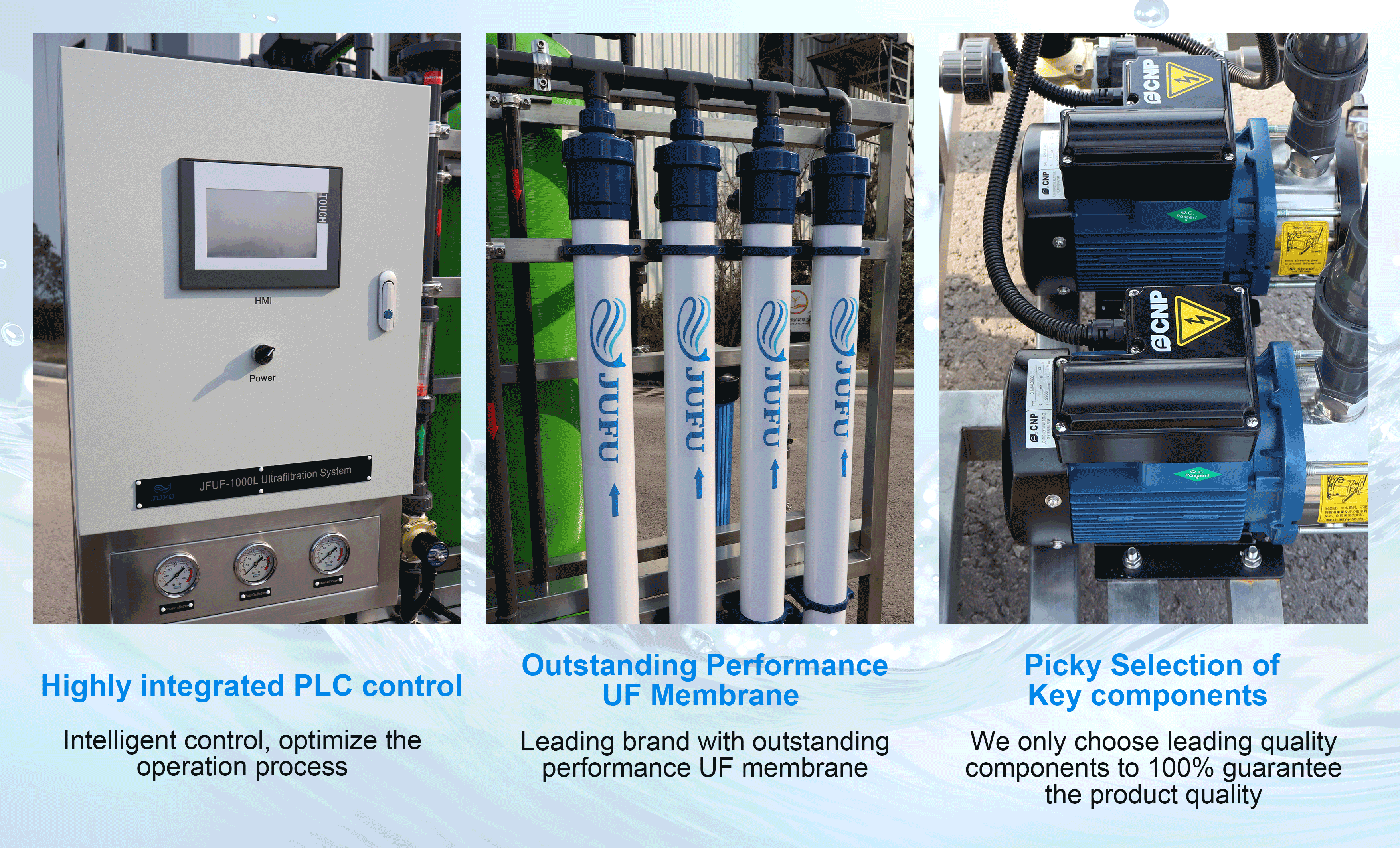

Intelligent PLC touch control
- Fully automatic operation: PLC touch screen to realize automatic monitoring, parameter adjustment, fault alarm and other functions, without frequent manual intervention.
- Real-time data monitoring: flow, water quality, pressure and other data at a glance, easy to operate and maintain.
- Intelligent cleaning and maintenance reminders: support for automatic backwashing, chemical cleaning function, to extend the service life of the equipment, to maintain the best operating conditions.
High-efficiency pretreatment system
- Quartz sand filtration: effectively removes large particles of impurities and suspended solids in the water and reduces turbidity.
- Activated carbon filtration: adsorb odor, residual chlorine, organic pollutants in the water, improve the taste of water.
Economical Energy Saving & Environmentally Friendly Design
- Low-energy operation: optimize energy design to reduce power consumption and operating costs.
- High-efficiency water recycling rate: reduces wastewater discharge, meets environmental standards and saves water.
- Convenient maintenance: modular design, compact system, small footprint, simple installation and maintenance.

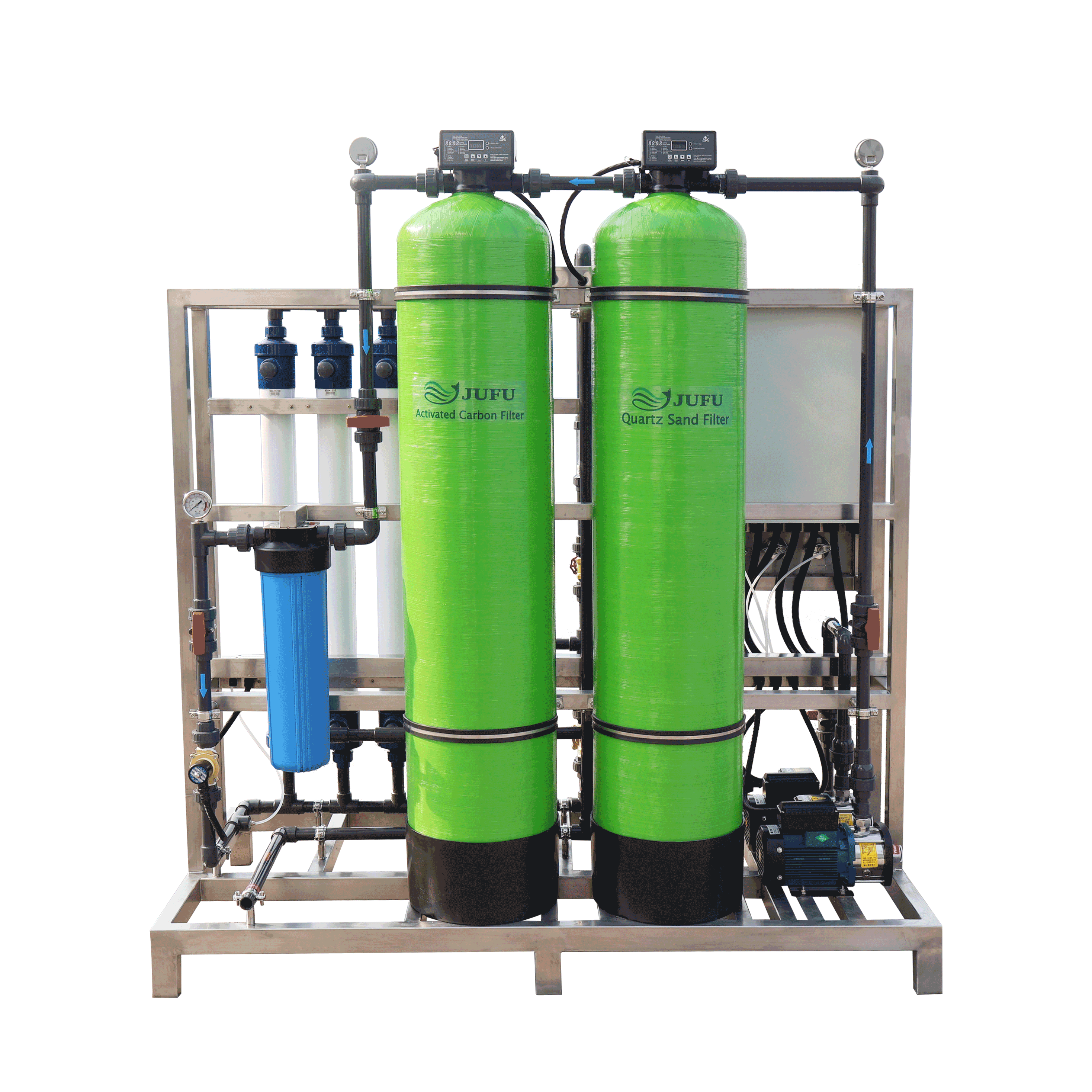

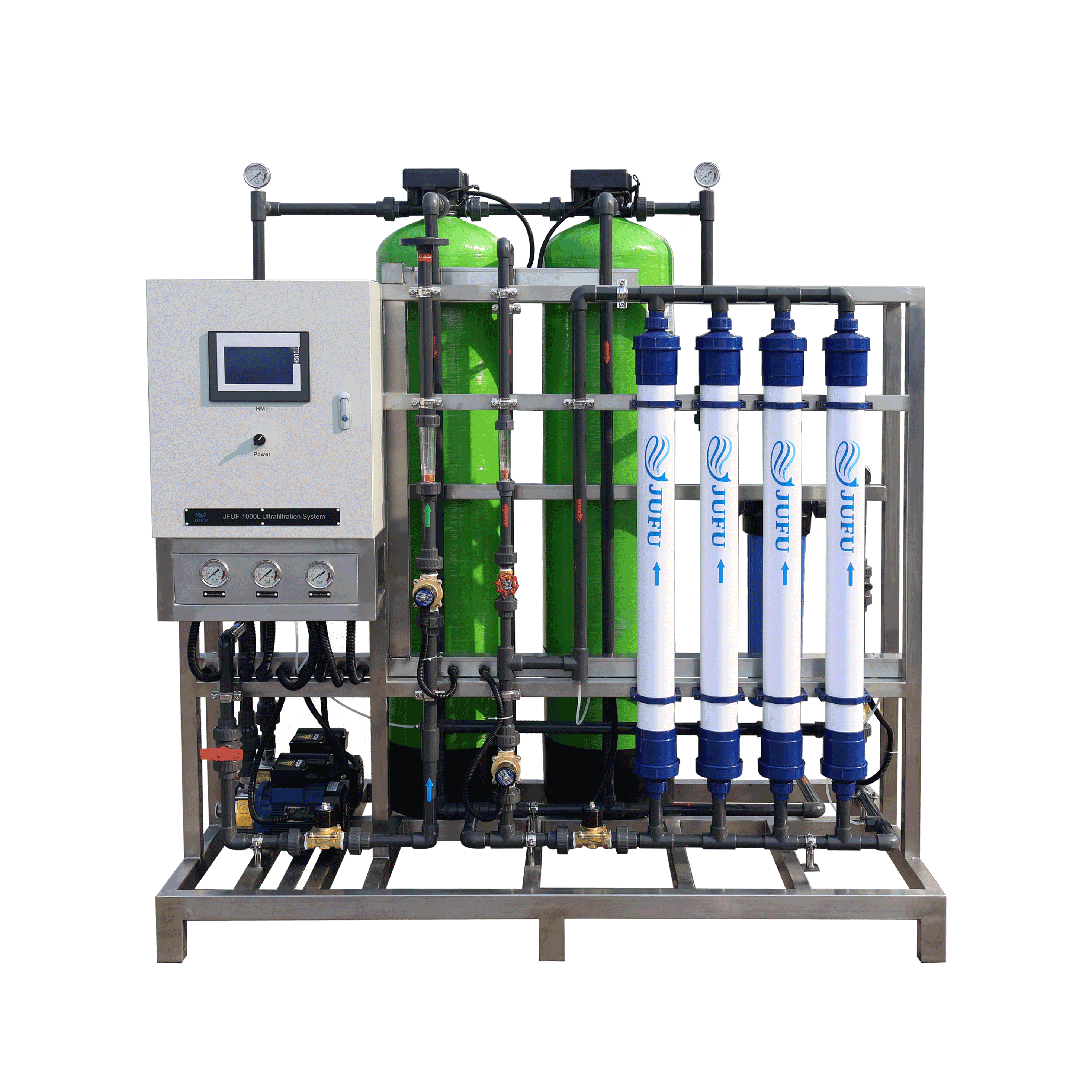

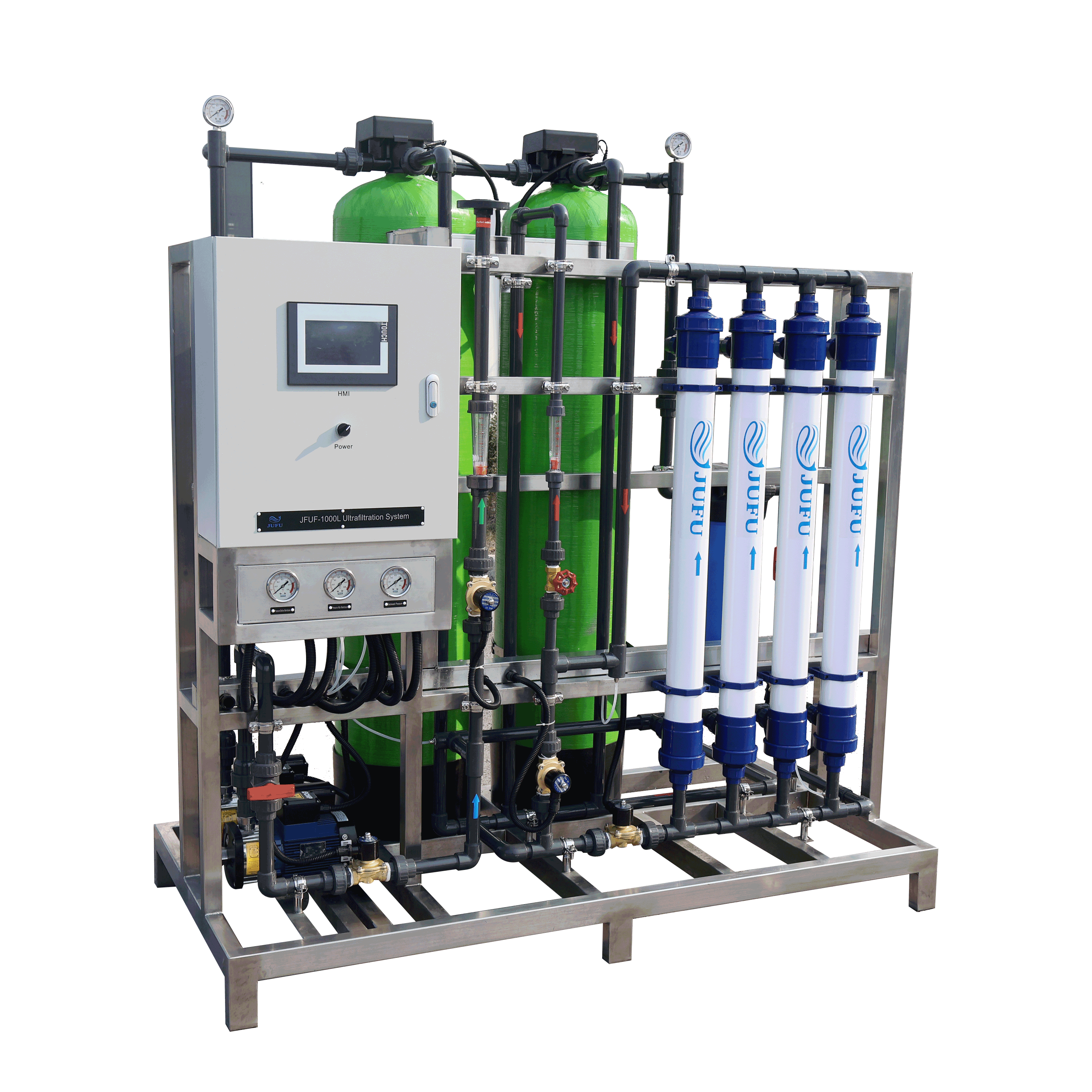

The details of 1000LPH Ultrafiltration system
Specification of Ultrafiltration system
| Model | JFUF-1000L | Membrane size | 4” |
| Membrane Type | Inside out | Membrane material | PVC |
| Recovery Rate | 95% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Feed Water Quality | Turbidity＜50NTU
Free Chlorine Concentration<1.0mg/L SS＜50mg/L |
Power Consumption | 0.5kW |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control |
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||

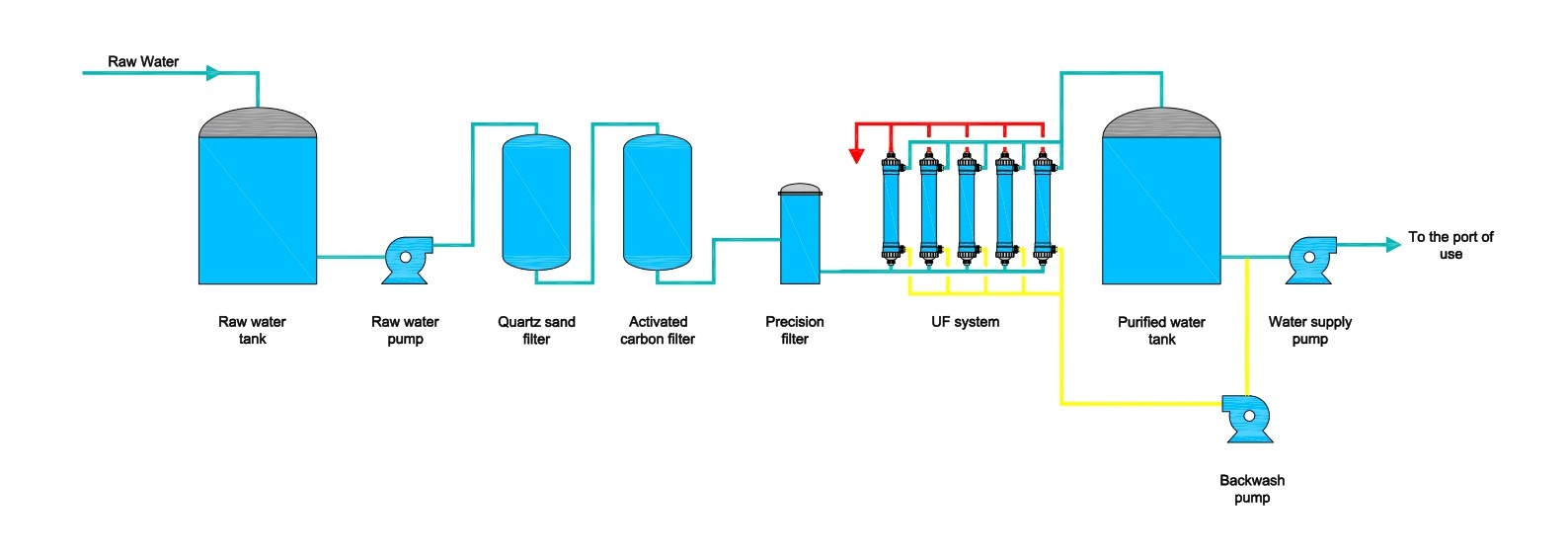

Work Flow Chart
