40TPH Industrial Ultrafiltration System

Advantages of PVDF UF membrane

This equipment is a seawater purification equipment, fully automatic design, using PVDF ultrafiltration membrane.

PVDF (polyvinylidene fluoride) ultrafiltration membranes have become a top choice for many applications due to their unique properties and advantages. Not only does this material have excellent chemical stability and mechanical strength, but it also exhibits excellent filtration results. five advantages of PVDF ultrafiltration membranes that make them the top choice in filtration technology.

1.Chemical Stability

The primary advantage of PVDF ultrafiltration membranes is their excellent chemical stability. The membrane is resistant to most acids, alkalis and organic solvents, allowing it to remain stable and functional in extreme chemical processing environments.

2.Mechanical Strength

Another outstanding advantage of PVDF UF membranes is their high mechanical strength. This means that the membrane is able to resist physical damage, including tearing, abrasion and pressure changes over a long period of time, thus ensuring its long-term reliability.

3.Filtration Efficiency

PVDF ultrafiltration membranes provide highly efficient filtration performance. It effectively removes suspended particles, bacteria and viruses from water while maintaining a high water flux, which is essential for improving filtration efficiency and saving energy consumption.

4.Contamination Resistance

The contamination resistance of PVDF membranes is another major advantage. The surface nature of the material makes it less susceptible to contaminant adsorption, which reduces the frequency and difficulty of cleaning and improves the service life of the membrane.

5.Economy and Application

The economy of PVDF UF membranes is one of the reasons for their popularity, considering their durability and low maintenance requirements. In addition, the wide range of applications for this membrane, from water treatment to the food industry, is further proof of its suitability and effectiveness in different situations.

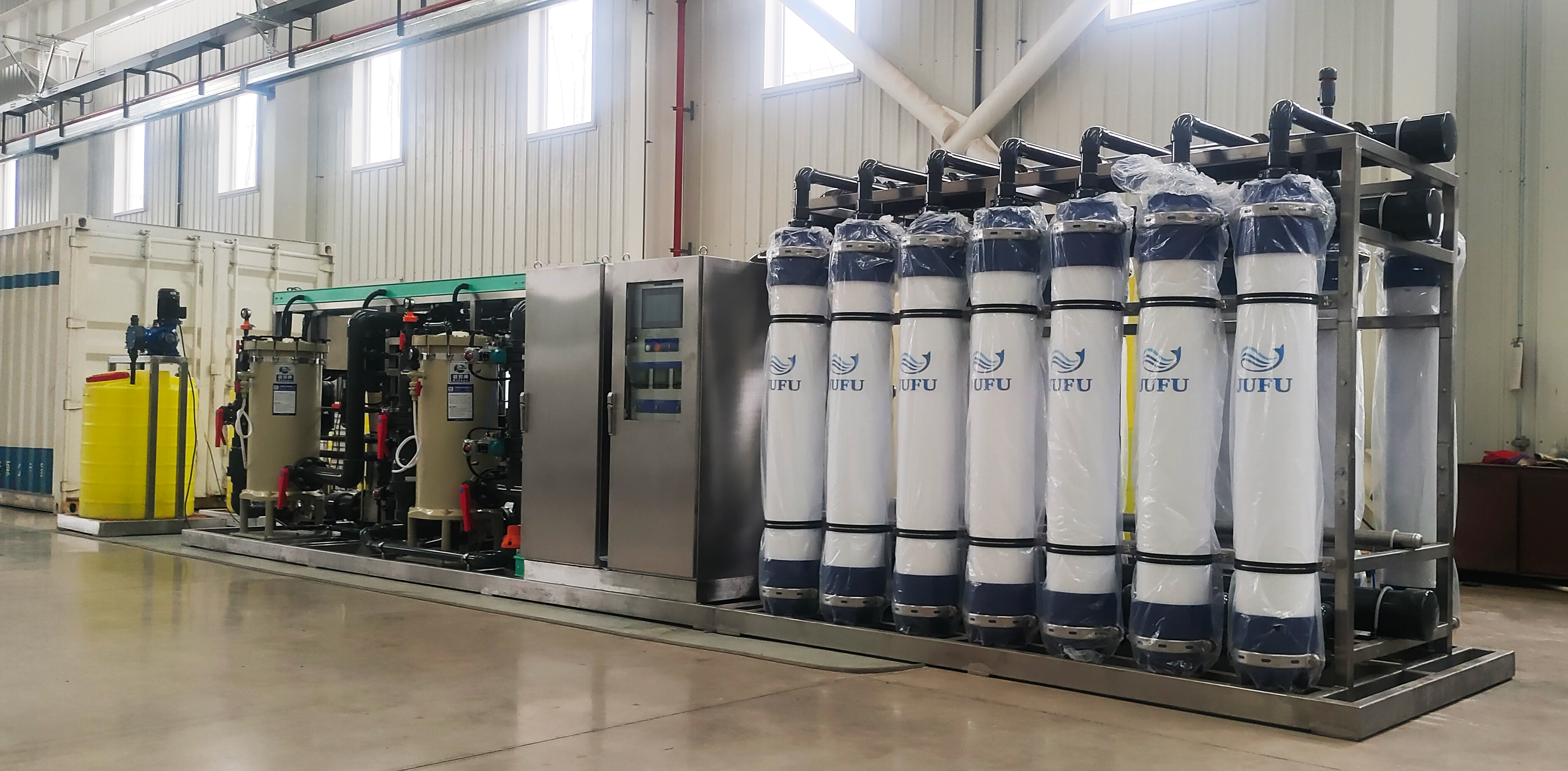

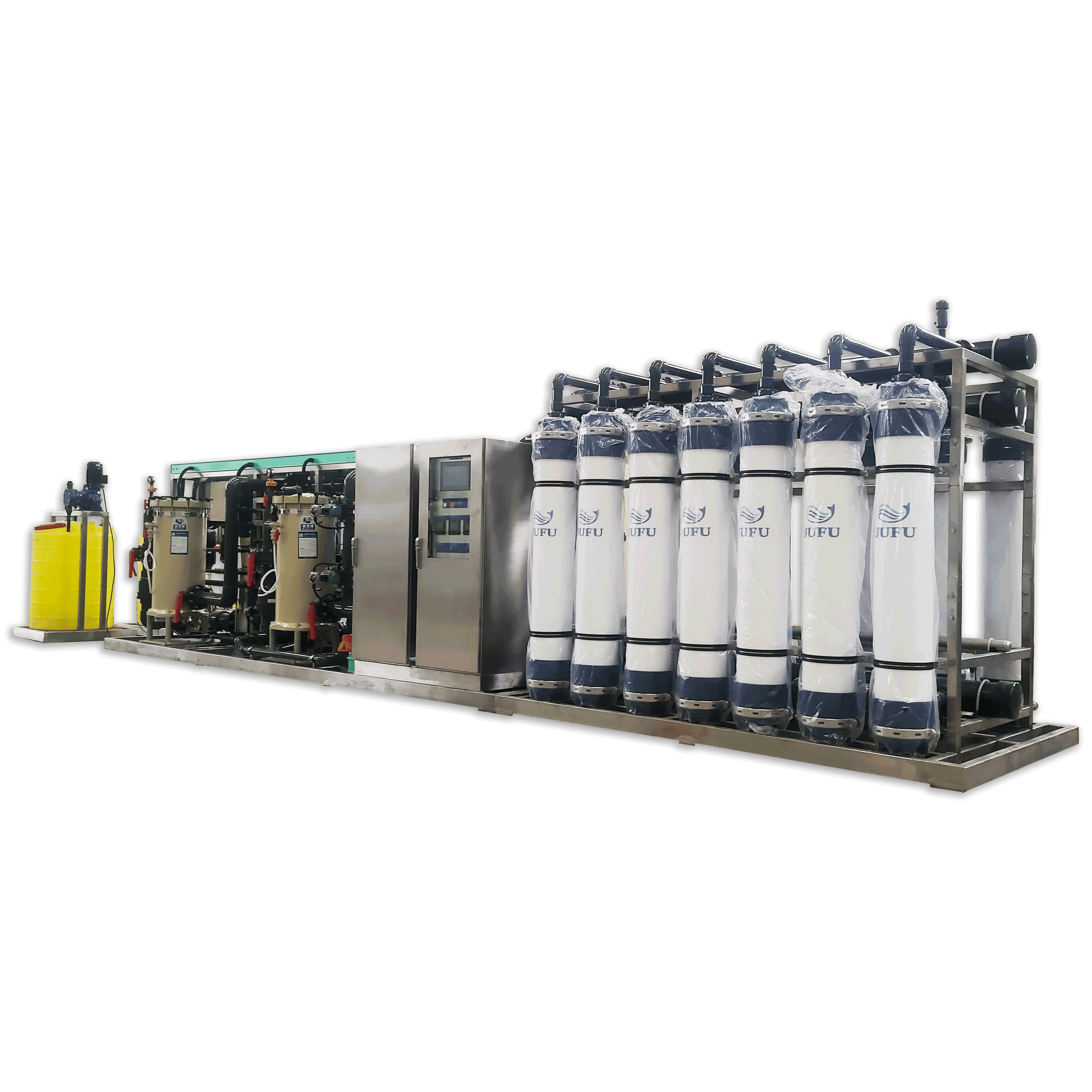

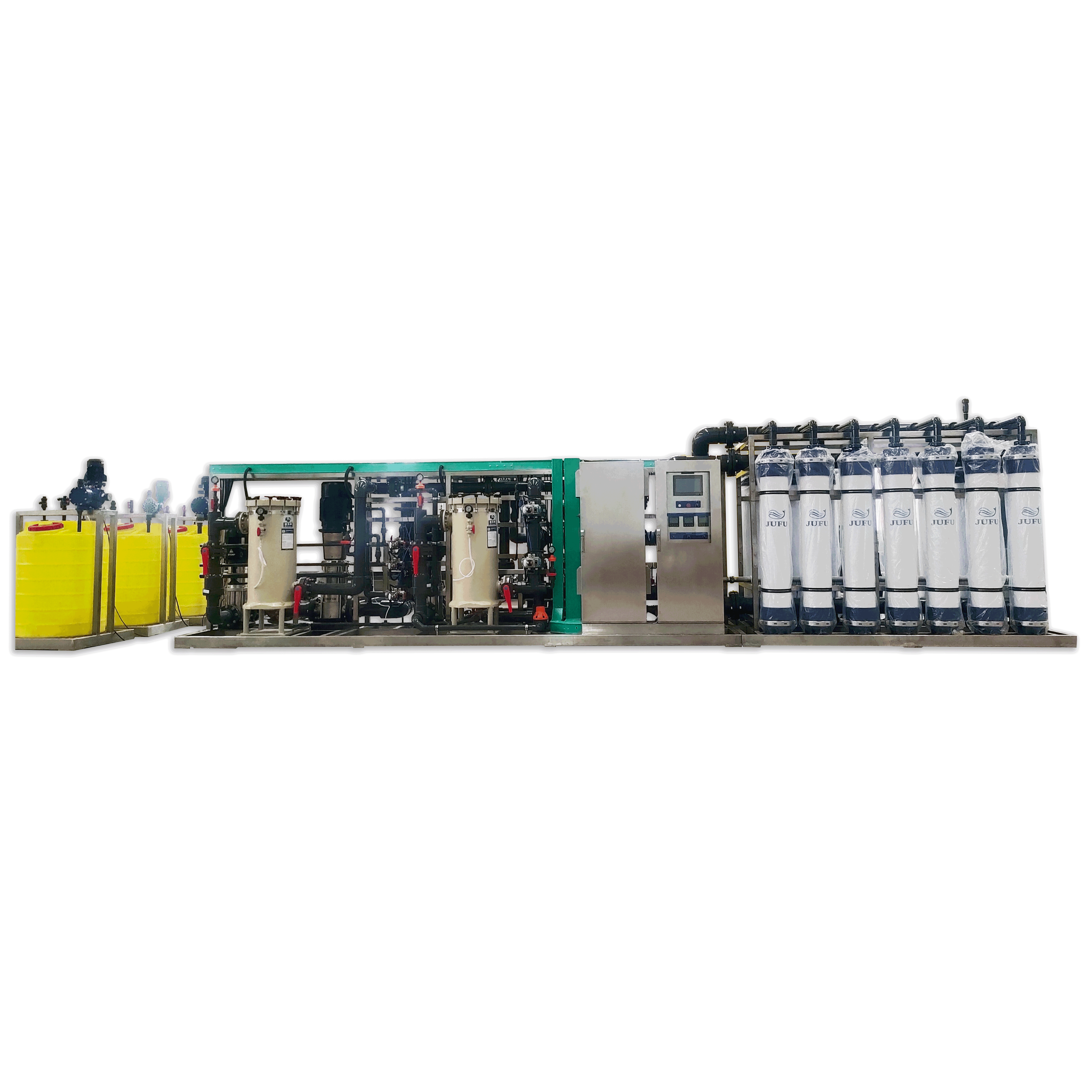

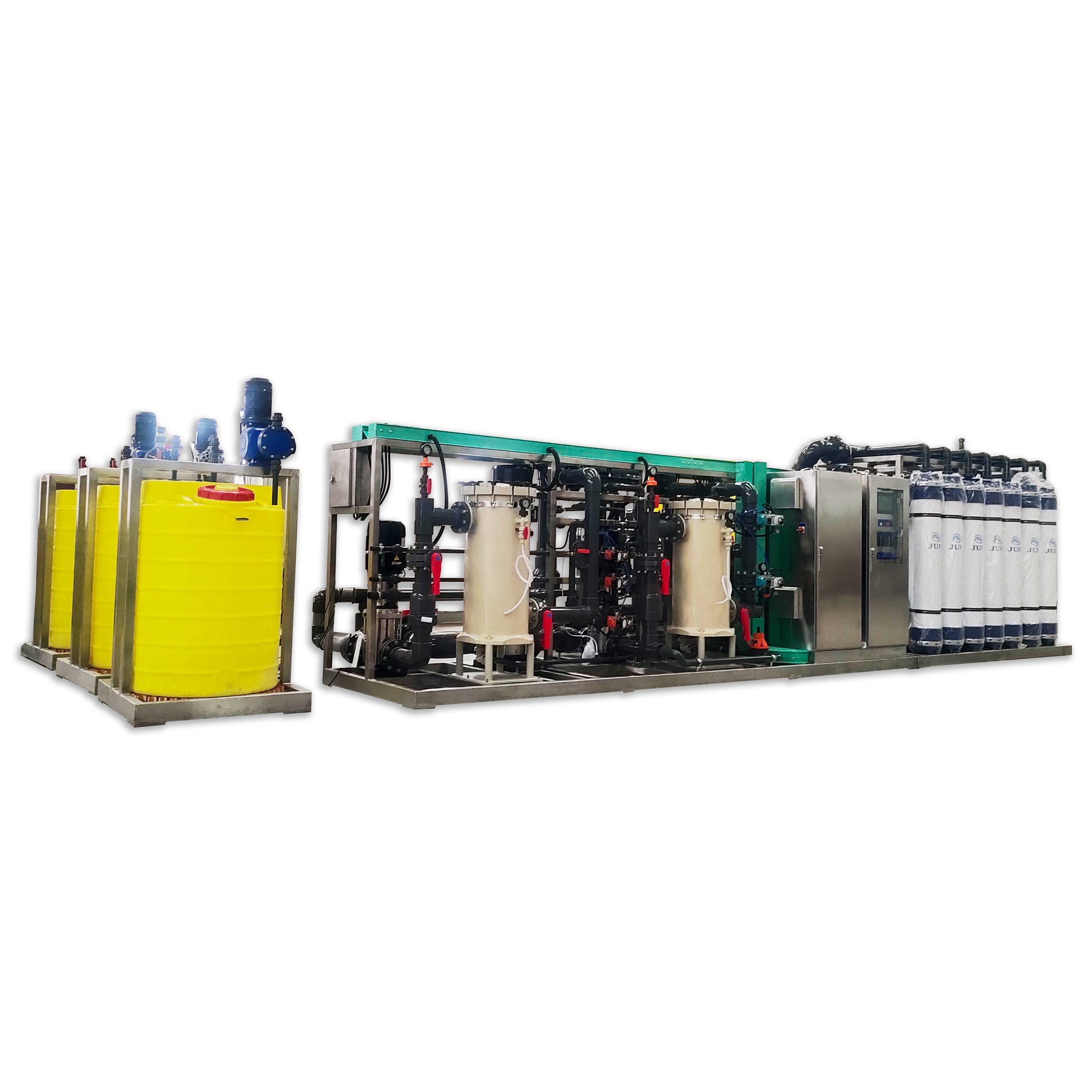

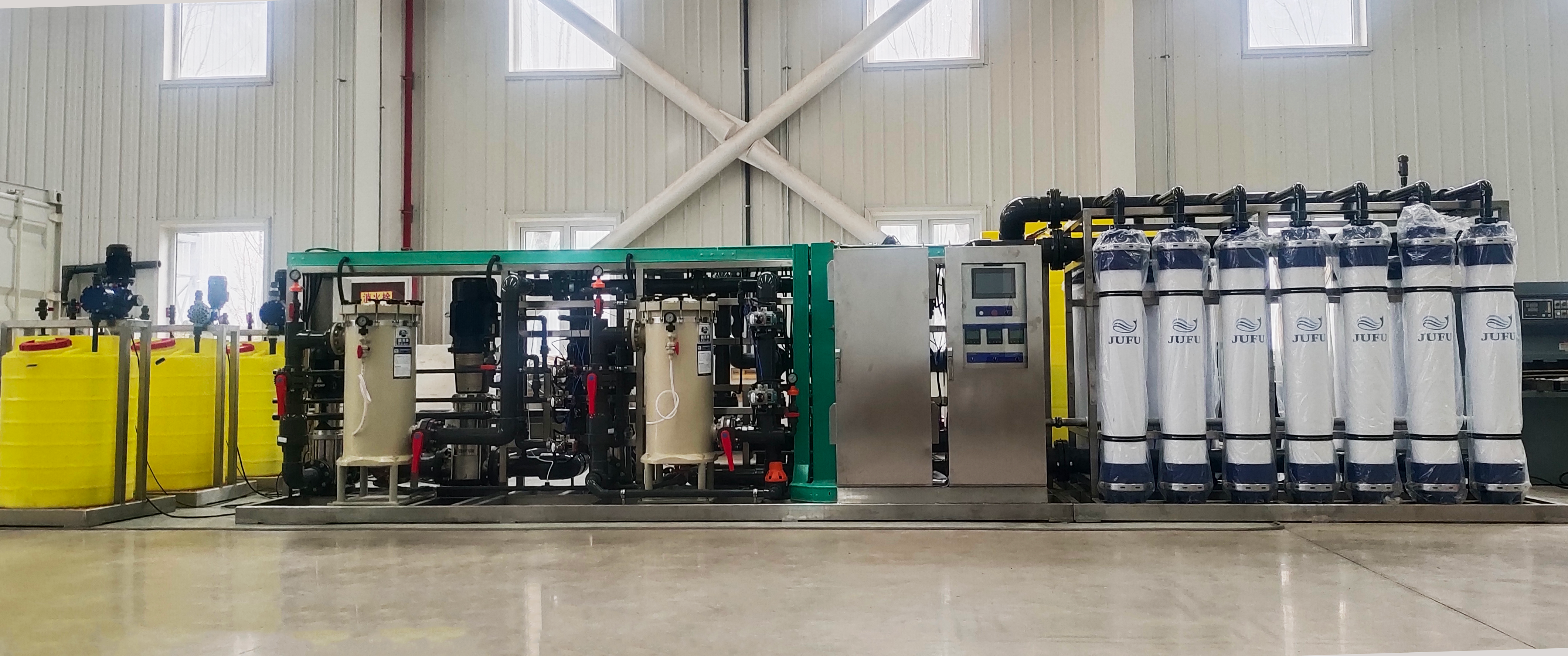

The details of 40TPH Ultrafiltration system

Specification of Ultrafiltration system

Model	JFUF-40TPH	Membrane  size	10”
Membrane  Type	Inside out	Membrane material	PVDF
Recovery Rate	95%	Power Supply	Single-phase:  110/120/220V  50/60Hz
Operating Pressure	0.02~0.2MPa		Tri-phase: 110/220/380/415V 50/60Hz
Feed Water Quality	Turbidity＜50NTU     Free Chlorine Concentration<1.0mg/L  SS＜50mg/L	Power Consumption	30kW
Filtration Accuracy	0.1micron	Control Type	PLC control
Features	Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.

Work Flow Chart

Common Causes of Ultrafiltration Damage

1. Aging of the filter cartridge: the high efficiency ultrafiltration membrane will be aging after a long time of use, thus reducing the filtration efficiency.
2. Cartridge clogging: poor water quality or more suspended solids in the water will lead to clogging of the cartridge, making the ultrafiltration membrane can not work properly.
3. Broken filter cartridge: installing or dismantling the filter cartridge with force will lead to broken filter cartridge, which will affect the filtration effect of ultrafiltration.
4. Inconsistent water quality of the filter cartridge: Some ultrafiltration cartridges are designed for specific water quality, using non-standard water quality may lead to damage to the ultrafiltration.

What can JUFU water do for you?

JUFU water has many years of international project experience in Seawater Desalination.

We have a first-class technical team to customize services for your project. Whether you are a small residential or a large industrial project such as a municipality or community, you can find the most economical and effective solution at JUFU Water.

We are committed to providing a one-stop solution from “Sea Water” to “Fresh Water” for the world.
