1000LPH Ultra Filtration Plant

When to choose an ultrafiltration system?

1. Filtration precision: according to the water source and water quality to be purified, choose the appropriate filtration precision. If the water quality is good, only need to filter larger particles and suspended solids, then you can choose ultrafiltration equipment.
2. Applicable water sources: different water purification equipment for different water sources. If you use tap water and other clean water sources, ultrafiltration equipment can meet the demand.
3. water quality: poor quality of raw water in the case of ultrafiltration equipment is generally only applicable to washing, bathing and other non-drinking purposes.
4. Maintenance cost: the filter element of ultrafiltration equipment is simple and the maintenance cost is low.

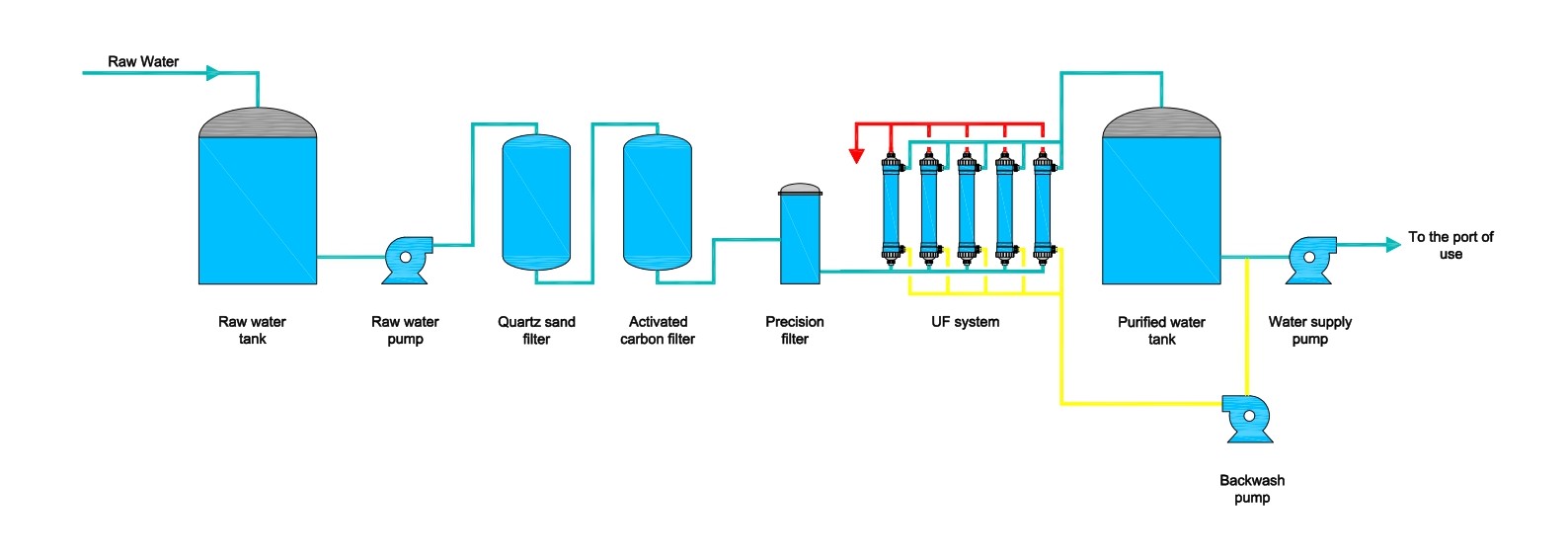

Work Flow Chart

Specification of ultrafiltration

Model	JFUF-1000L	Membrane  size	4”
Membrane  Type	Inside out	Membrane material	PVC
Recovery Rate	95%	Power Supply	Single-phase:  110/120/220V  50/60Hz
Operating Pressure	0.02~0.2MPa		Tri-phase: 110/220/380/415V 50/60Hz
Feed Water Quality	Turbidity＜50NTU     Free Chlorine Concentration<1.0mg/L  SS＜50mg/L	Power Consumption	0.5kW
Filtration Accuracy	0.01micron	Control Type	Manual control / Auto control
Features	Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.

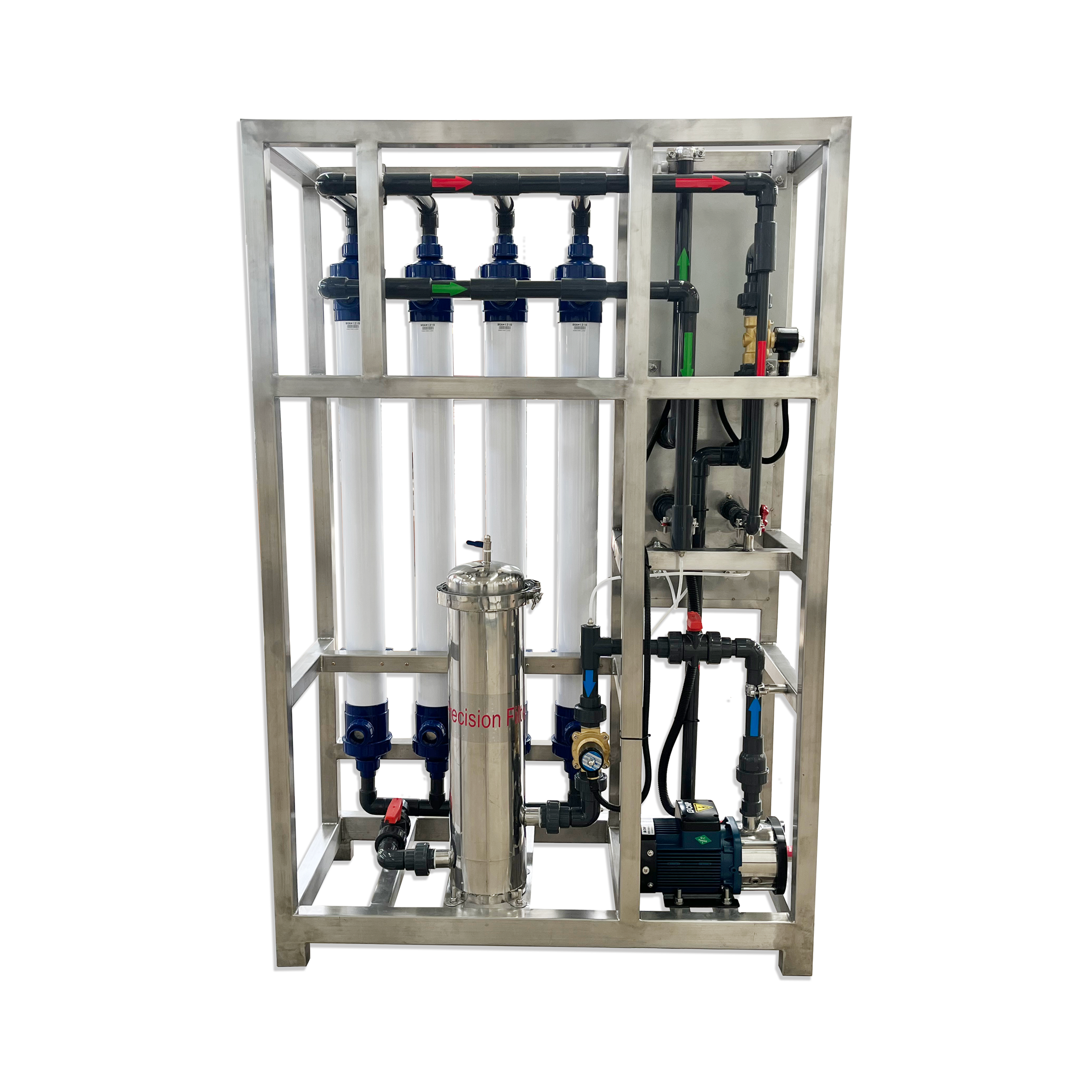

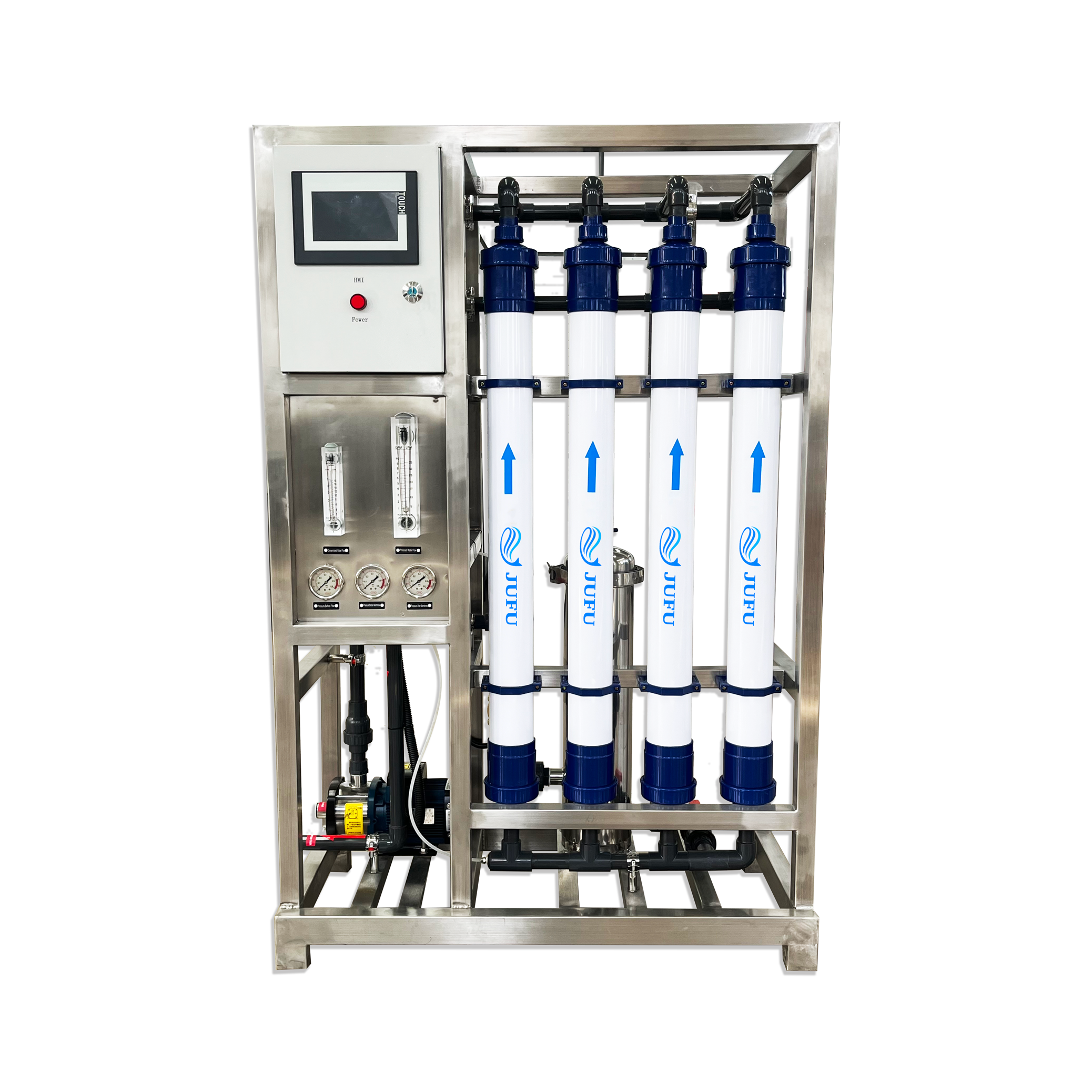

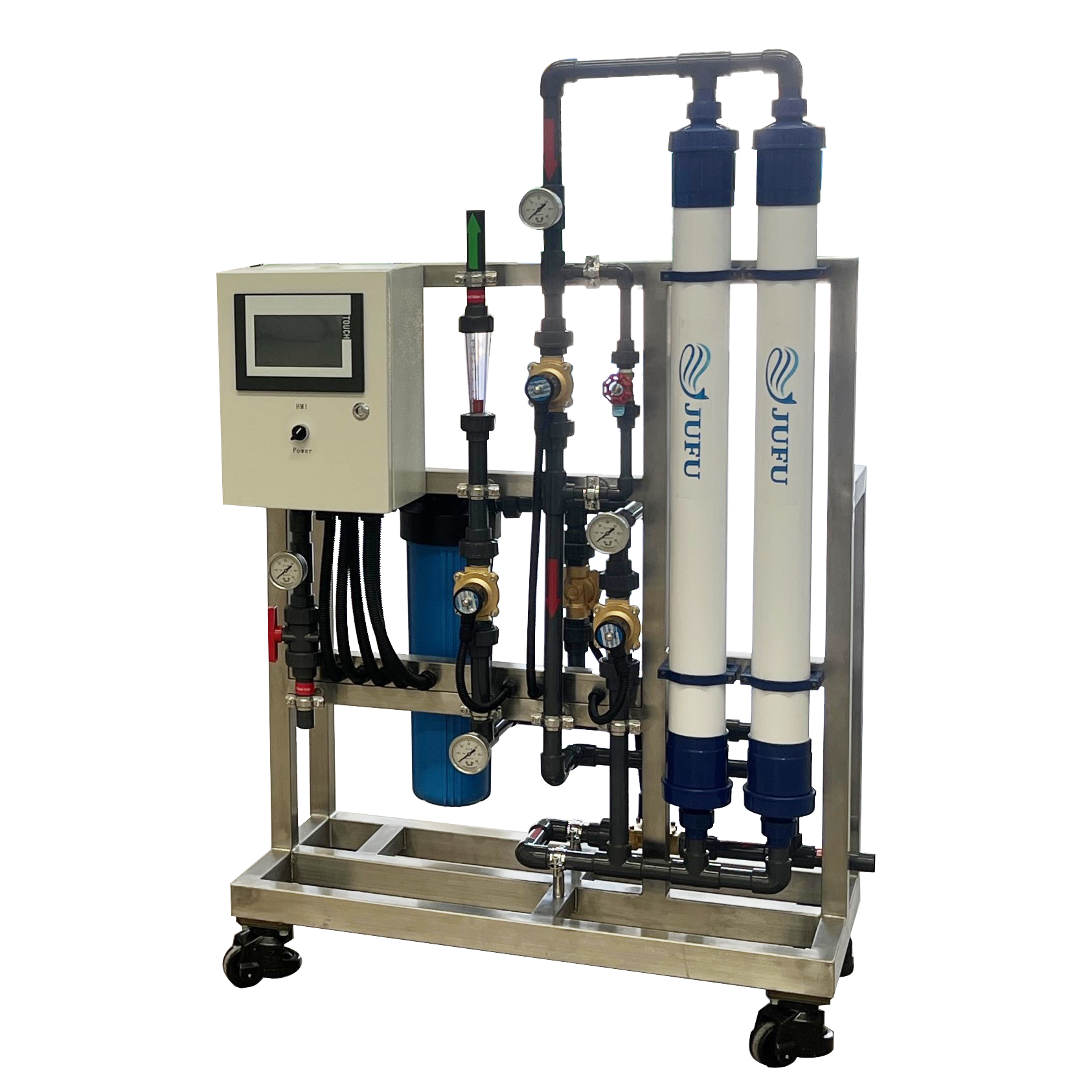

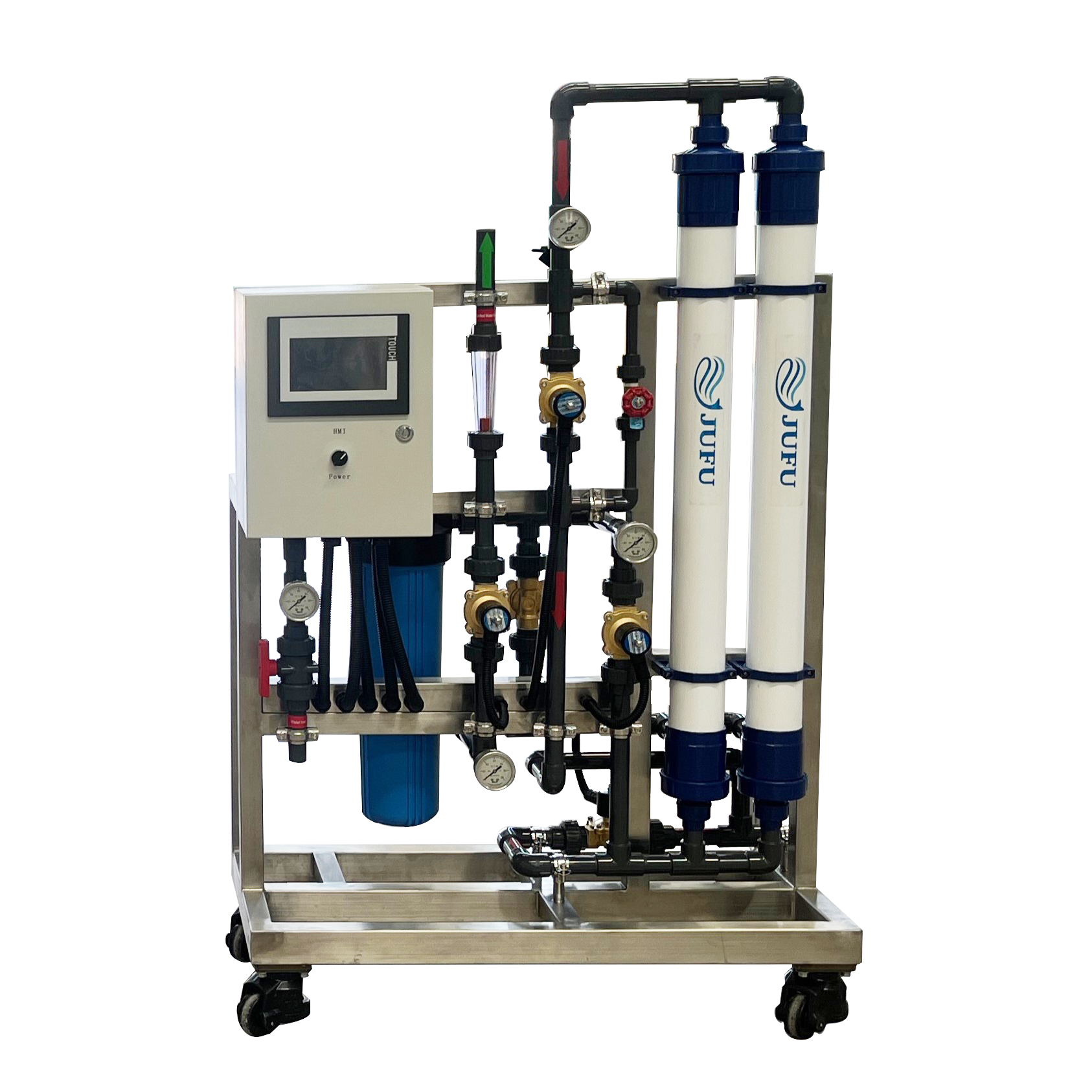

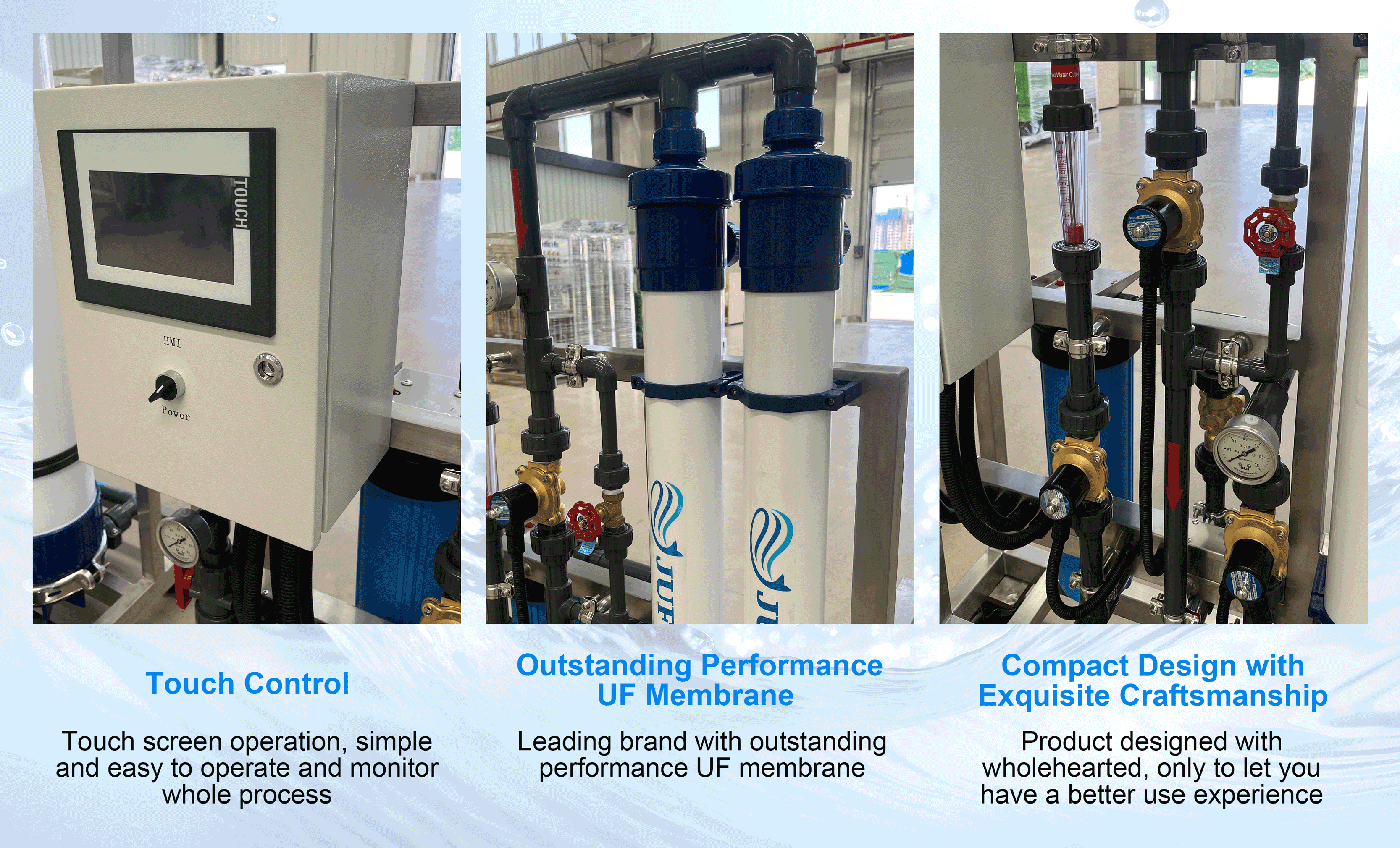

The details of 1000LPH Ultrafiltration system

PVC ultrafiltration membrane advantages

The advantages of PVC ultrafiltration membrane include better pressure resistance and flexibility, not easy to be broken by external forces, so the ultrafiltration membrane filament is not easy to break, relatively good quality; good corrosion resistance, relatively long service life; does not cause secondary pollution; not easy to absorb water, easier to clean.

PVC ultrafiltration membrane, due to its excellent compressive properties and flexibility, can maintain good performance in the environment of large changes in external pressure, not easy to rupture or fracture, thus ensuring the stability of the ultrafiltration process and long-term use. In addition, PVC material has good corrosion resistance and can maintain stability in a variety of chemical environments, extending the service life of the ultrafiltration membrane. Due to its food-grade material properties, PVC ultrafiltration membranes are suitable for use in areas such as food and pharmaceuticals that require a high degree of purity without introducing additional contamination. In terms of cleaning, due to its non-absorbent property, it can be cleaned more easily to maintain the performance and purity of the ultrafiltration membrane.

Maintenance method of ultrafiltration system

1. Regular cleaning: It is recommended that the ultrafilter be cleaned regularly, and the cleaning cycle is generally 3 months. When cleaning, you can remove the cartridge and rinse the surface of the cartridge with water, do not wipe it with excessive force.
2. Pay attention to the replacement of the cartridge: different types of ultrafilter cartridges have different use cycles, it is recommended to replace the cartridge according to the instructions.
3. Pay attention to the water quality: Before using, you should know the quality of tap water and buy the ultrafiltration cartridge that meets the water quality. In the process of use, it is recommended to avoid the use of water sources containing large amounts of suspended solids and organic matter.
4. Avoid excessive force on the cartridge: When installing or disassembling the ultrafiltration cartridge, avoid excessive force to avoid breakage of the cartridge.
5. Replace the sealing ring regularly: If the sealing ring is aged or broken, it will lead to water leakage and affect the service life of the ultrafiltration cartridge. It is recommended to replace it once a year.

In short, regular maintenance can extend the service life of the ultrafilter and ensure its normal work. If you find that the ultrafilter is working abnormally, clean or replace the cartridge in time.
