10TPH Ultrafiltration System High-Efficiency Water Treatment Equipment
1.Model: JFUF-10T
2.ISO9001 & CE certified
3. Capacity: 10ton/hour
4. Membrane type: PVDF
5. Control type: PLC control
6.CIP control type: Auto
7. Applicable industries: Water factory, Hotels,Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Energy & Mining, Food & Beverage Shops
8. Pre-shipment testing: Provide
9. Installation guidance: Online Video meeting
10. Warranty: 12 months
11. Package: Wooden case
12. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
10TPH Ultrafiltration System – Advanced Industrial Water Treatment Solution
As a leading water treatment company, we offer the 10TPH Ultrafiltration (UF) System, designed with advanced membrane technology to meet industrial, commercial, and municipal water treatment needs. This system efficiently removes suspended solids, bacteria, viruses, and colloidal particles, ensuring stable and high-quality output water. It is ideal for boiler feed water, pure water pretreatment, wastewater reuse, and more.
Key Advantages
- High-Efficiency Filtration – Removes fine particles and improves water purity
- Energy-Saving & Eco-Friendly – Low energy consumption for cost-effective operation
- Smart Control System – PLC automation for real-time monitoring and precise control
- Modular Design – Scalable and adaptable for different water treatment applications
Applications
- Industrial Water Treatment – Ensures high-quality process water and extends equipment lifespan
- Municipal Water Treatment – Enhances drinking water safety and supply efficiency
- Wastewater Reuse – Promotes sustainability through water recycling
- Food & Beverage / Electronics Manufacturing – Provides ultra-pure water for high-standard production
Our 10TPH Ultrafiltration System delivers a high-efficiency, stable, and intelligent water treatment solution. Visit our website for more details or contact us for customized solutions and technical support.

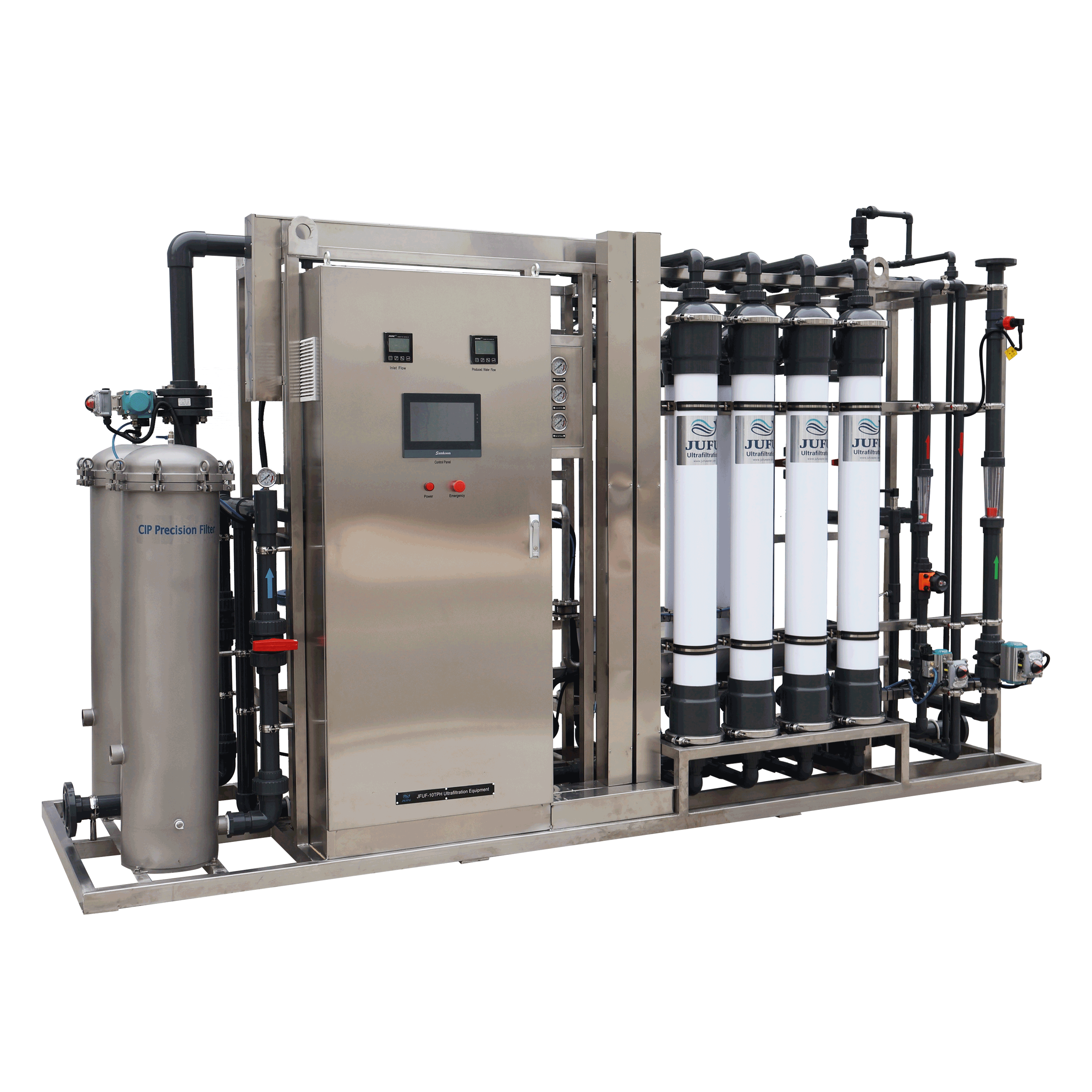

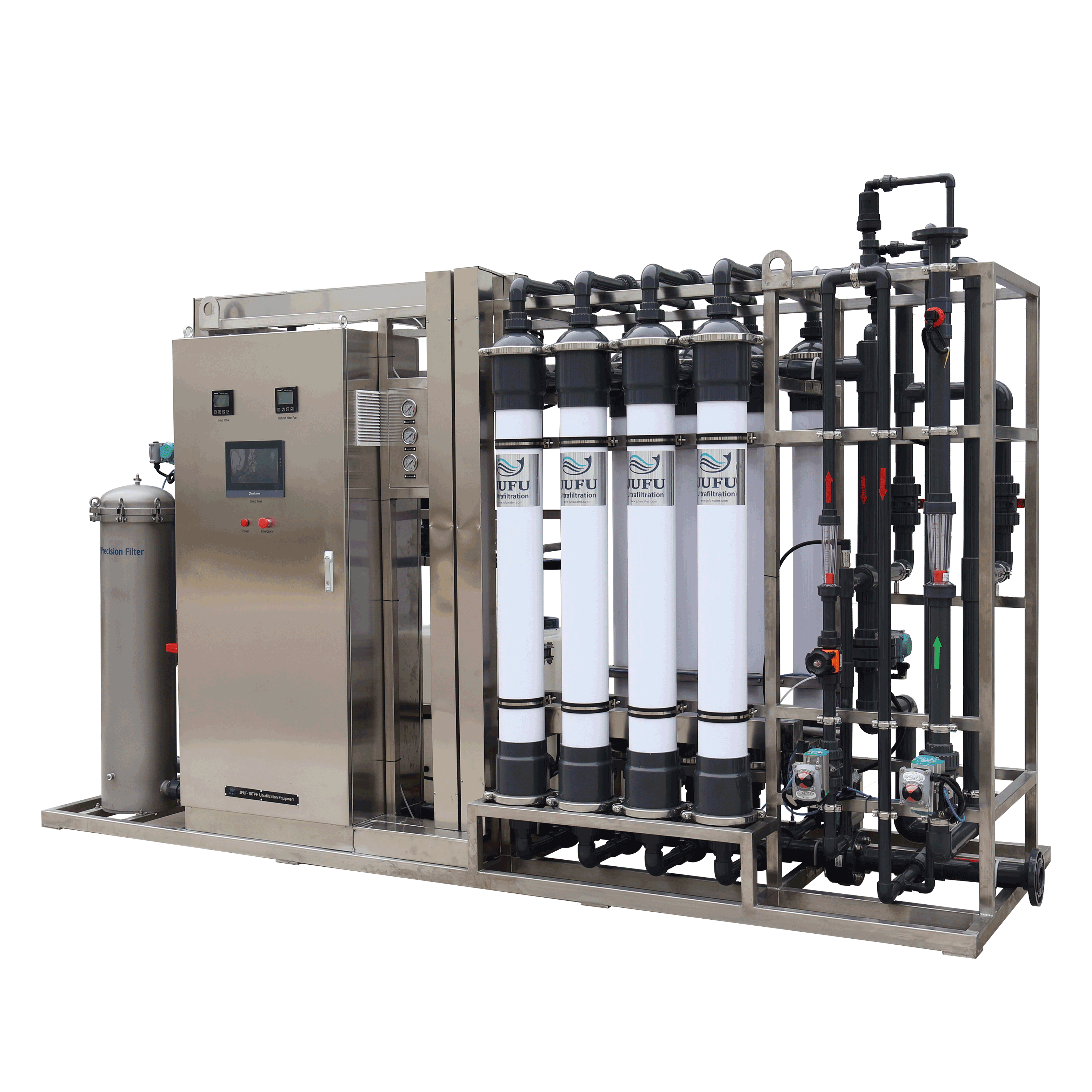

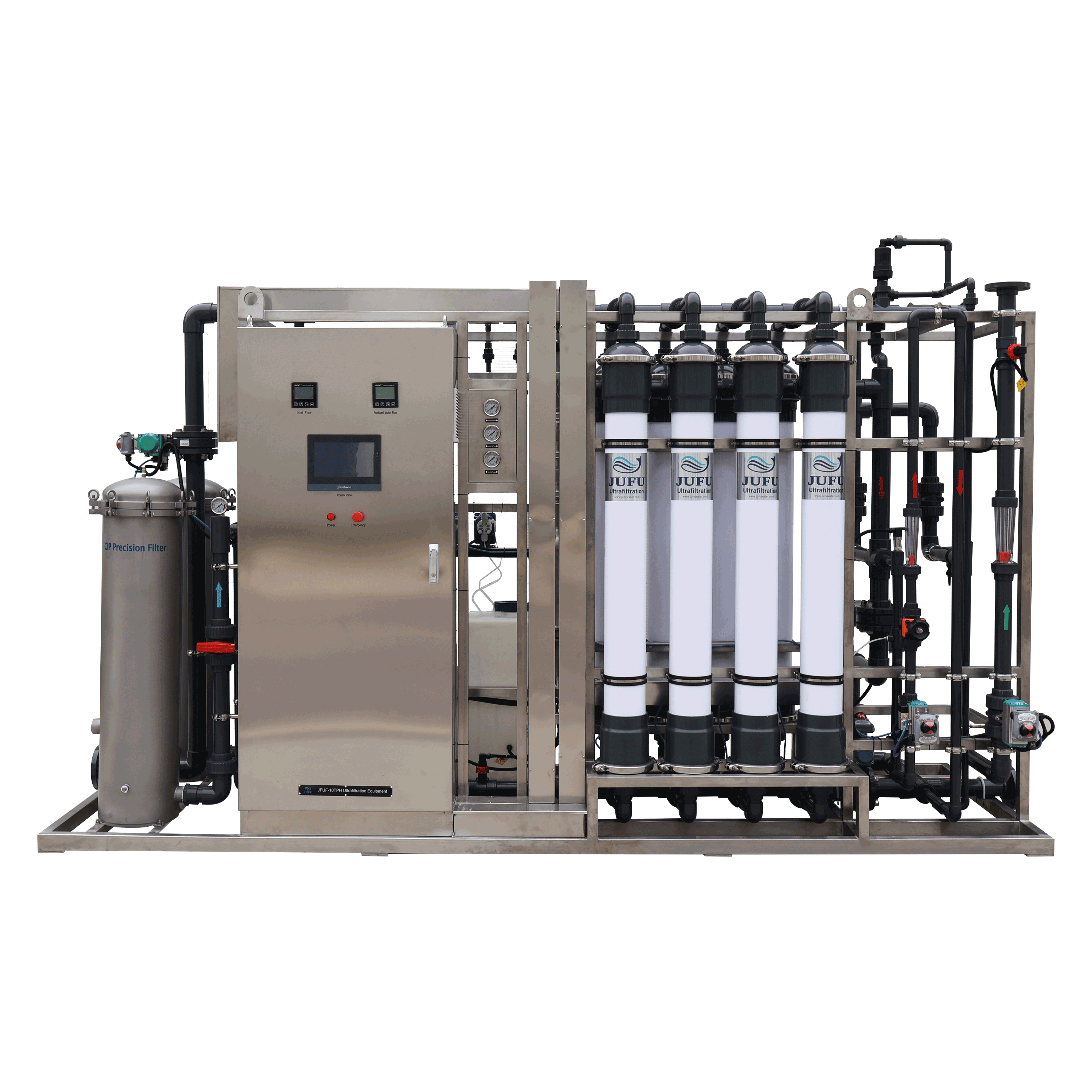

The details of 10TPH Ultrafiltration system
Specification of Ultrafiltration system
| Model | JFUF-10T | Membrane size | 6” |
| Membrane Type | Outside in | Membrane material | PVDF |
| Recovery Rate | 95% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 0.02~0.2MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Feed Water Quality | Turbidity＜50NTU
Free Chlorine Concentration<1.0mg/L SS＜50mg/L |
Power Consumption | 6KW/3KW |
| Filtration Accuracy | 0.01micron | Control Type | Manual control / Auto control |
| Features | With backwash pump, cleaning pump.The ultrafiltration membrane can accurately retain tiny impurities in water, including bacteria, viruses,
colloids and most suspended solids, etc., which ensures the purity and safety of the effluent water. |
||

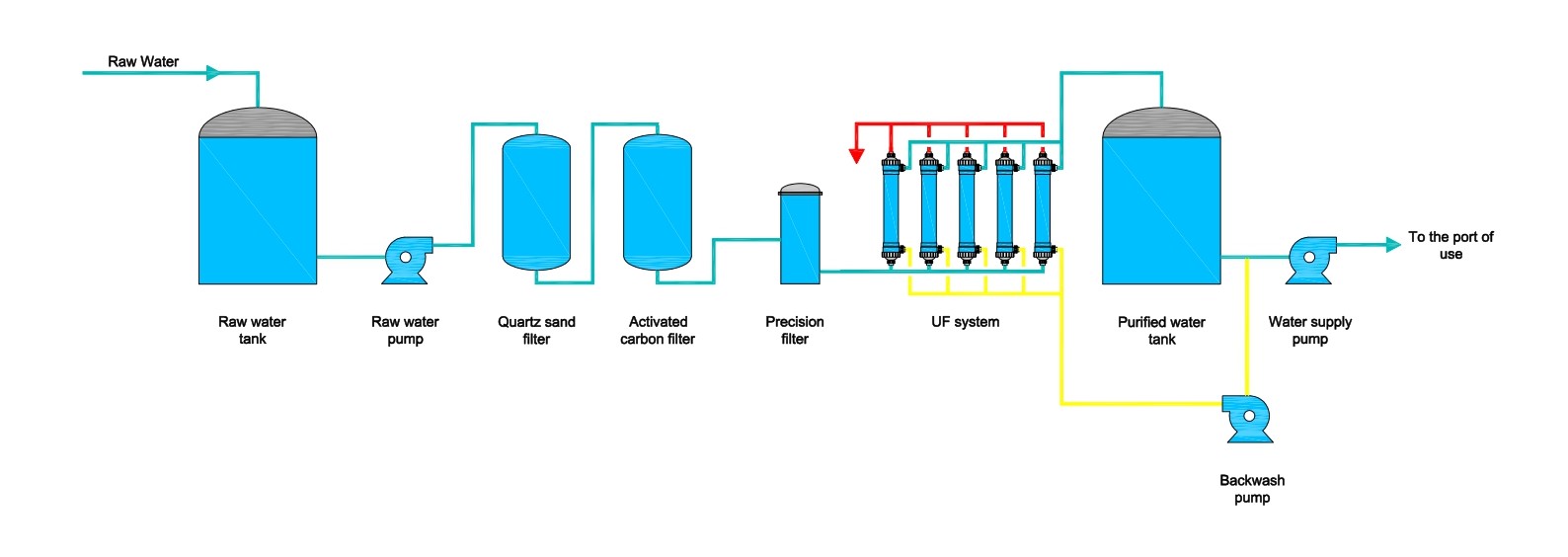

Work Flow Chart
Application advantages of ultrafiltration systems
- Improve Irrigation Efficiency：By removing impurities from the water, ultrafiltration systems reduce nozzle clogging and enhance the overall efficiency of the irrigation system.
- Protect the Environment：By removing pollutants from the water, ultrafiltration systems help minimize environmental impact and protect the ecosystems surrounding the golf course.
- Reduce Maintenance Costs：Reducing nozzle clogging and equipment damage lowers the maintenance costs of the irrigation system.
