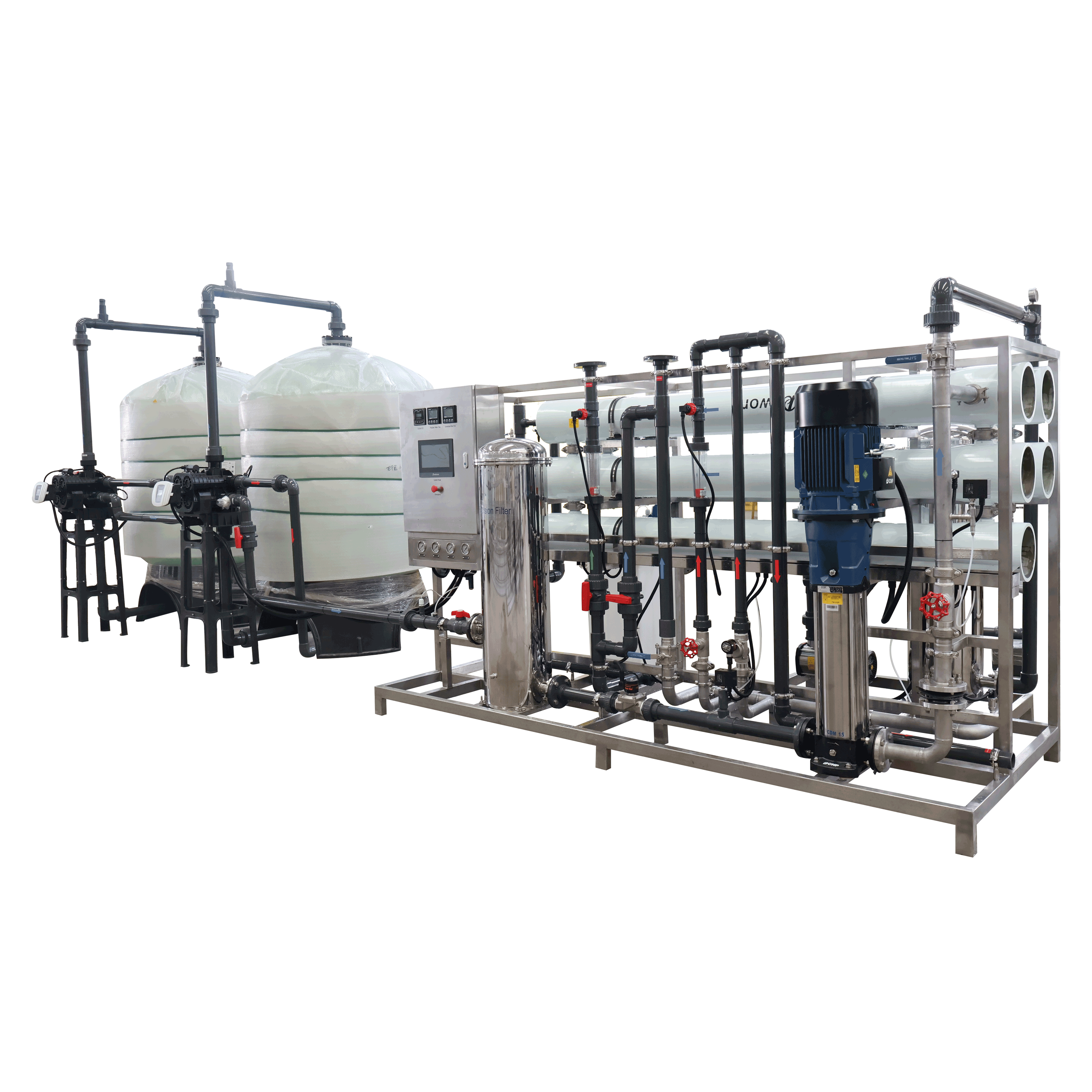

JUFU 10m³/h Industrial PLC Touch Control Water Treatment with Membrane Cleaning System
1. Model: JFRO-10T
2. ISO9001 & CE certified
3. Capacity: 10t/hour
4. Desalination rate: 99%
5. Recovery rate: 75%
6. Membrane size: 8040
7. Control type: Auto
8. Applicable industries: Hotels, Food & Beverage factory, Farms, Restaurant,Water shop
9. Pre-shipment testing: Provide
10. Installation guidance: Online Video meeting
11. Warranty: 12 months
12. Package: Wooden case
13. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia

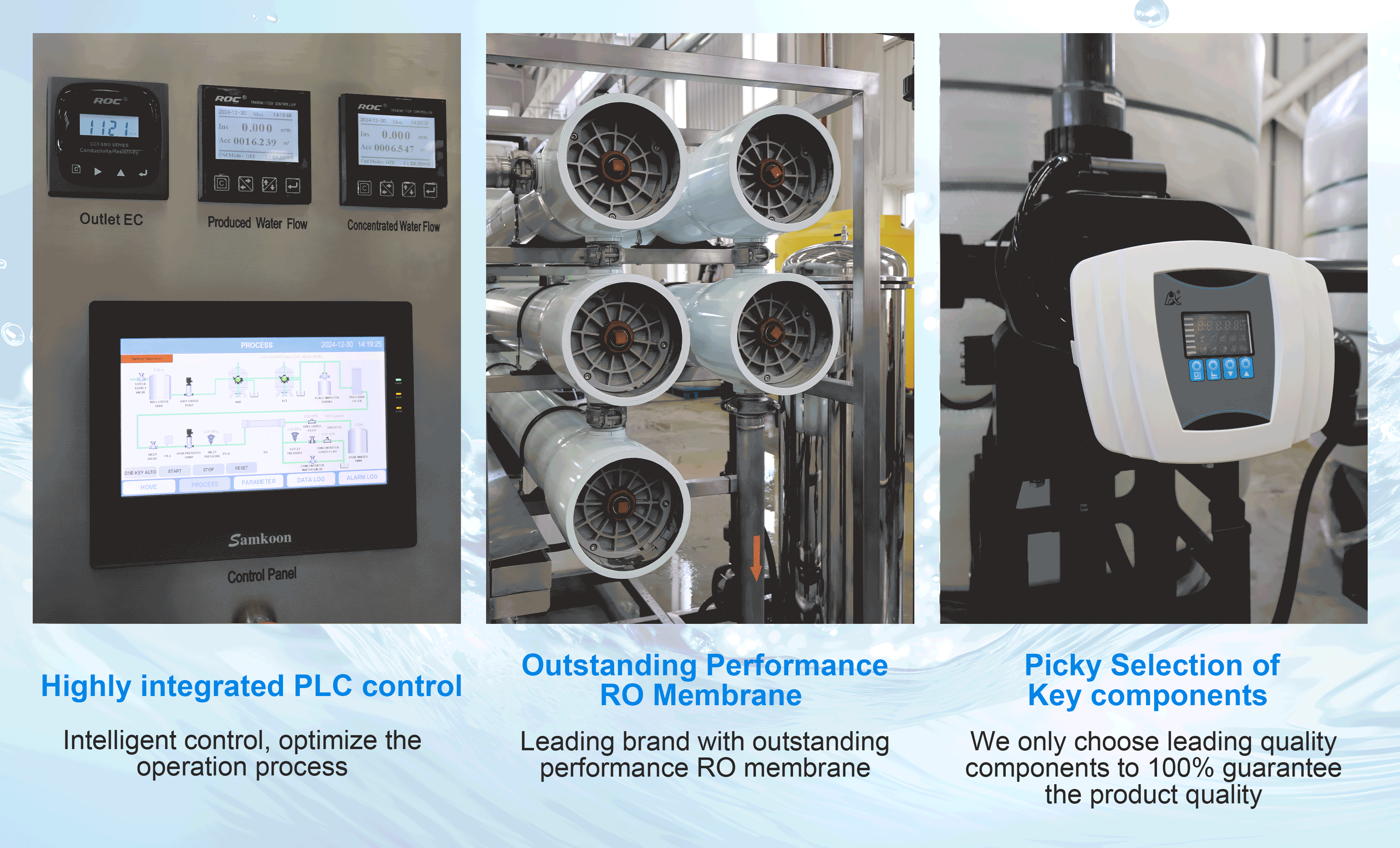

What is PLC control？
Automation and controls for water treatment plants.
JUFU offers a comprehensive range of HMI and PLC controls for our equipment within filtration. All controls are designed,developed and programmed by our experienced engineers. This is our intention to ease your operation and fit your needs.
Chemical Cleaning System(Membrane Cleaning Process)
Reverse Osmosis membrane elements can experience a decline in performance due to the accumulation of deposits on the membrane surface. Mineral scale, colloidal particles, biological matter, and insoluble organic compounds are the usual causes of membrane fouling. When production of a Reverse Osmosis system drops by at least 10 percent, or the differential pressure increases by 15 percent (over normal operating conditions), membrane cleaning should be performed.
What is the requirements for feeding water?
JUFU water 10tph reverse osmosis system can treat the incoming feed water with 2000ppm＜TDS<5000ppm. No matter the water is coming from borehole, well, river.. if the water’s 2000ppm＜TDS<5000ppm, you can directly choose our anti-fouling RO type.If your water TDS above the range, there are still other options to handle your water, contact our sales engineer, the right model will be recommended to solve your water problem.

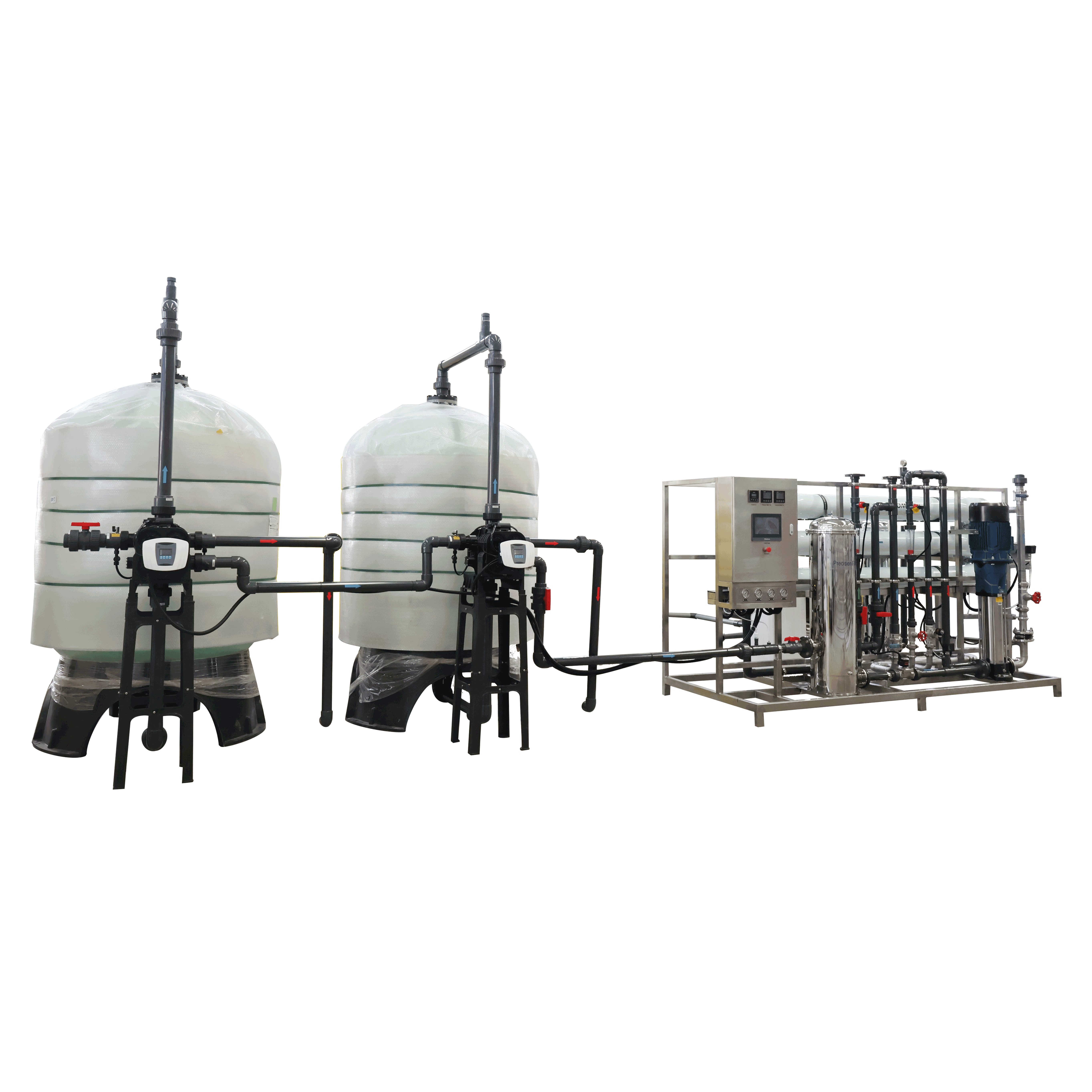

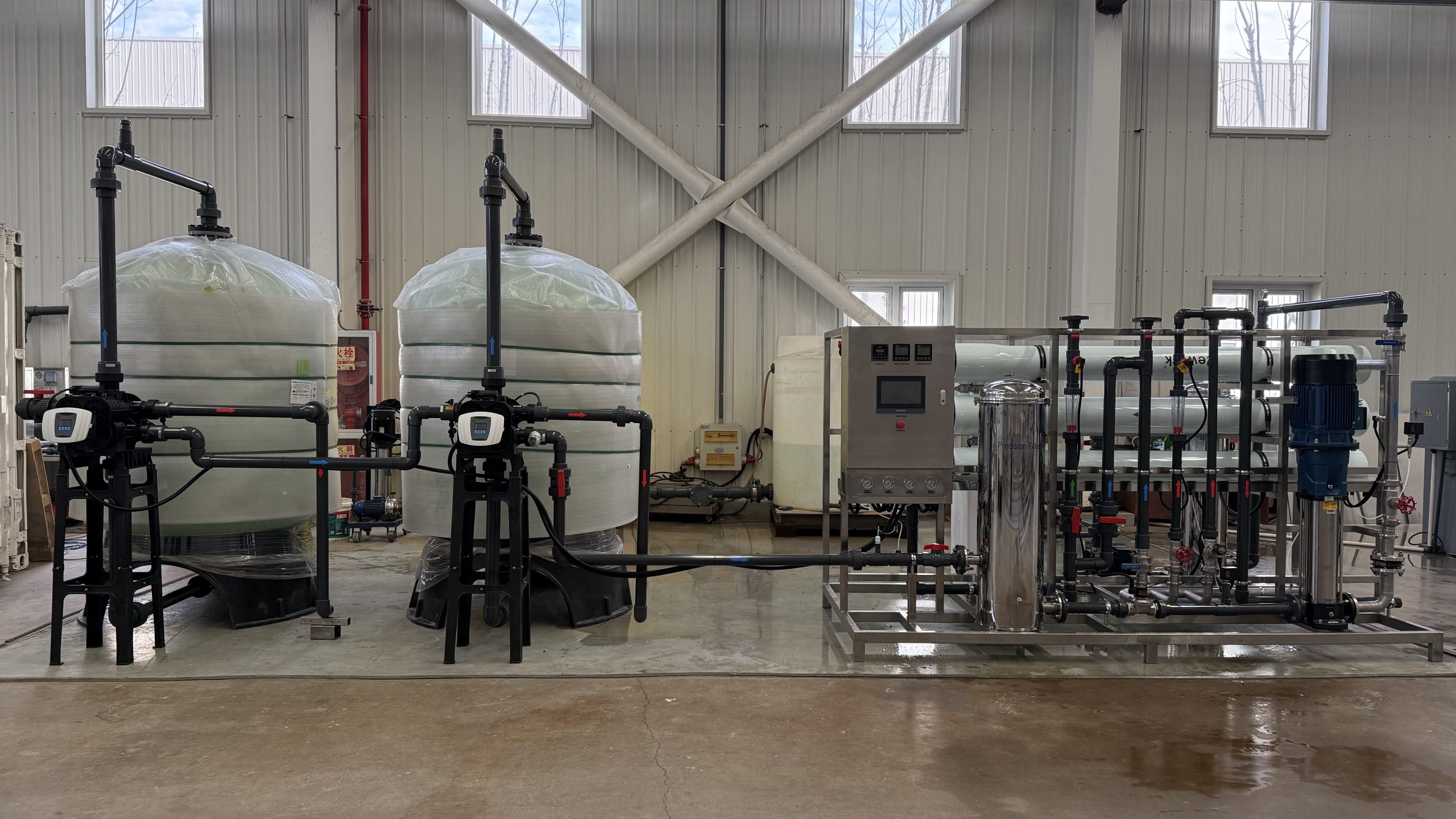

The details of 10TPH reverse osmosis system
The working flow chart of reverse osmosis system
Specification of 10TPH reverse osmosis system
| Model | JFRO-10T | ||
| Producing Capacity | 10T/H | RO membrane | 8″ |
| Recovery Rate | ≥75% | Power Supply | Tri-phase: 110/220/380/415V 50/60Hz |
| Operating Pressure | 1.0-1.6MPa | ||
| Desalination Rate | 99% | Power Consumption | 15kW |
| Filtration Accuracy | 0.0001 micron | Control Type | Manual control / Auto control |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | ||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||
What benefits reverse osmosis can bring?
High Purity Water: Reverse osmosis can filter most of the contaminants,remove impurities, dissolved solids, heavy metals and bacteria. It can treat water to high quality which can meet the safety and required standard for us.
Customizable filtration: Revese osmosis system can be designed based on your actual raw water and your final applications, the proposal can be customized to eliminate each single stage to meet your water use target.
Easy maintenance:JUFU water’s reverse osmosis system with compact design and stable performance can provide maximum comfort and worry-free experience for users.
Environmentally friendly: Sustainable use by reverse osmosis system can reduce reliance on external water supply, can make water use in a green cycle.
