1000LPH Reverse Osmosis System for Water Treatment Industry(SUS304)

Why I need to use stainless steel version reverse osmosis system?

Stainless steel reverse osmosis system are well suited to the requirement of RO as their resistance to aqueous corrosion is high, so avoiding potential membrane-scaling ions contaminating the process.

In some industry especially in food&beverage, pharmautical industries, stainless steel reverse osmosis is the first choice to meet higher standard requirements for materials.

How your pretreatment system designed?

The pretreatment system normally include:Quartz sand filter, Activated carbon filter and water softener.

Quartz sand filter: Remove suspended solids, organic matter, colloidal particles, microorganisms, chlorine, odor and some heavy metal ions.

Activated carbon filter:remove rust; sediment; organic compounds that impart taste, odor or color; chlorine and some other contaminants.

Water Softener: Remove calcium, magnesium, and other minerals from water.

What is special from JUFU water?

JUFU water cares more about user experience, stable performance and worry-free after-sales service for our valued clients.

• Optimized design and Solid stainless steel Skid
• Prioritize well-known brands for key components, like DOW, Grundfos
• Adaptable to various working conditions with stable performance
• Maximum utility at minimum cost
• Rigorous factory pre-shipment testing

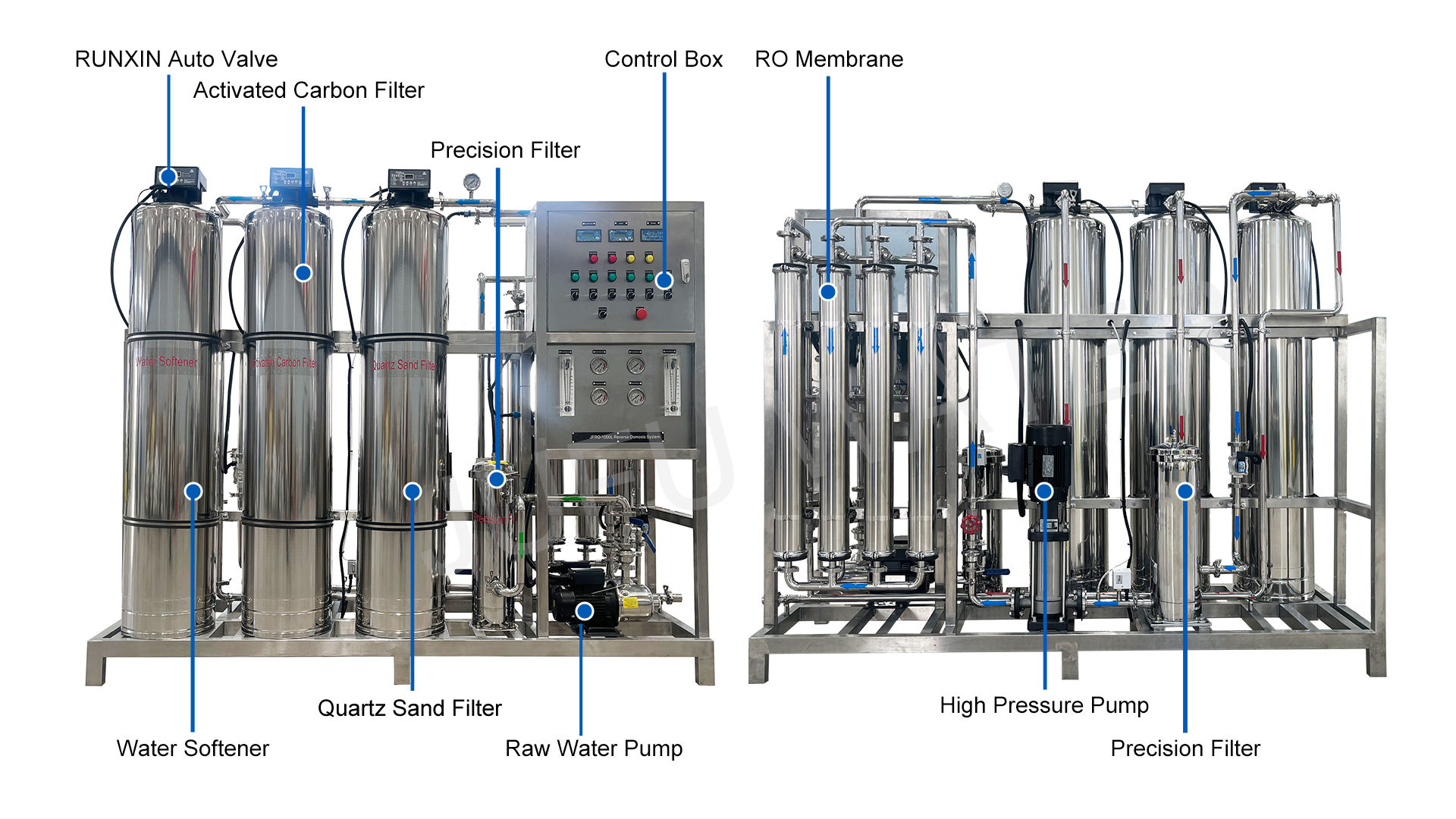

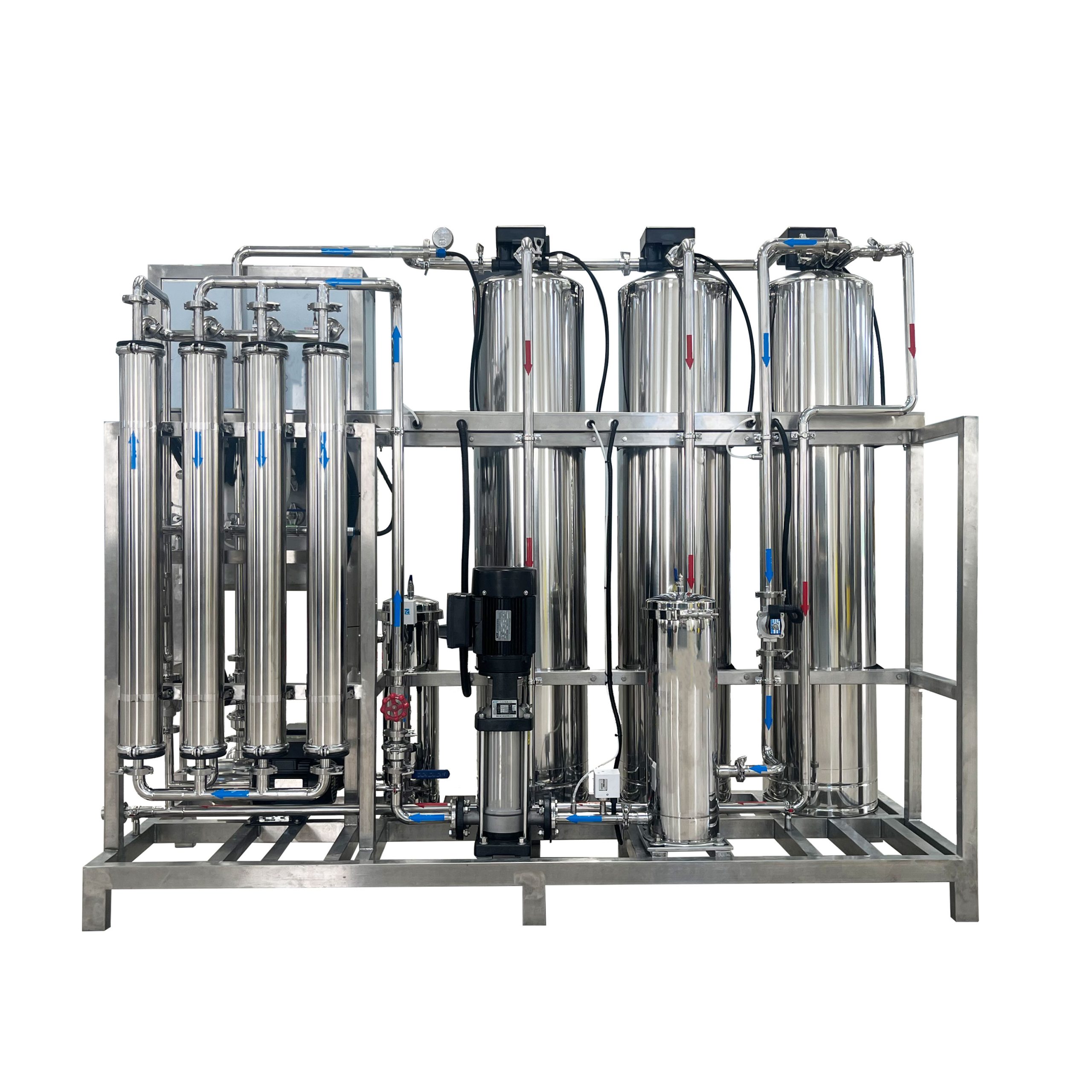

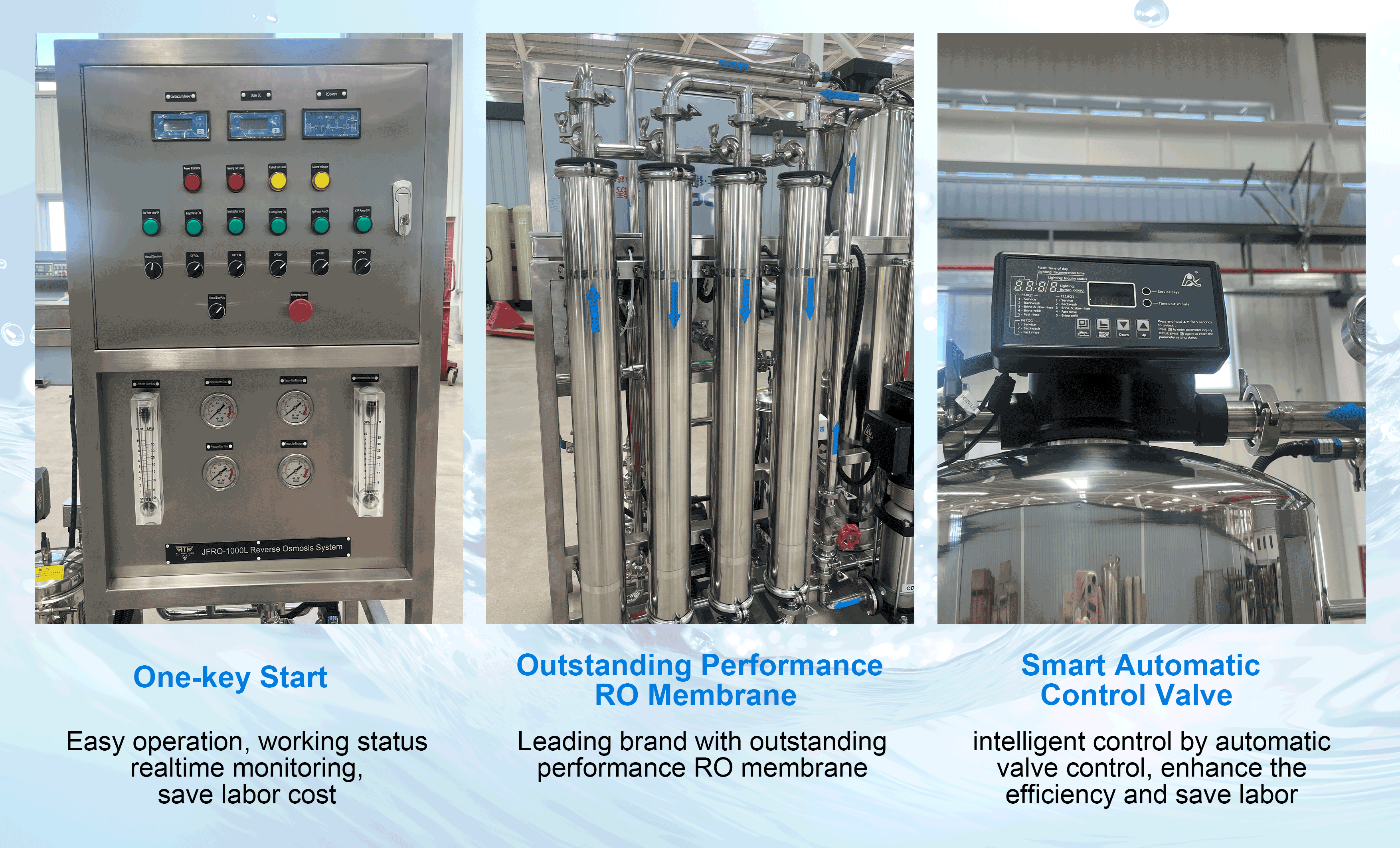

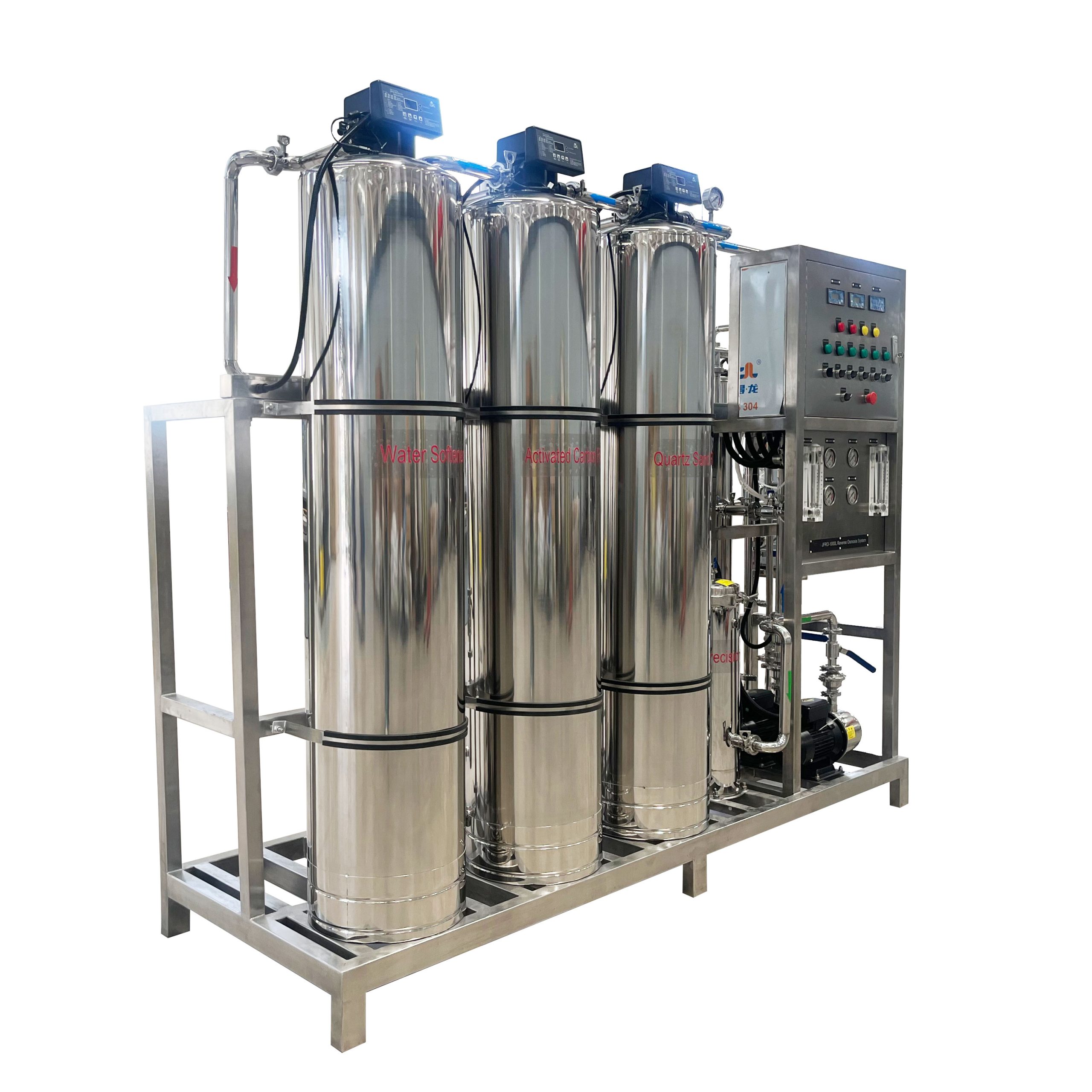

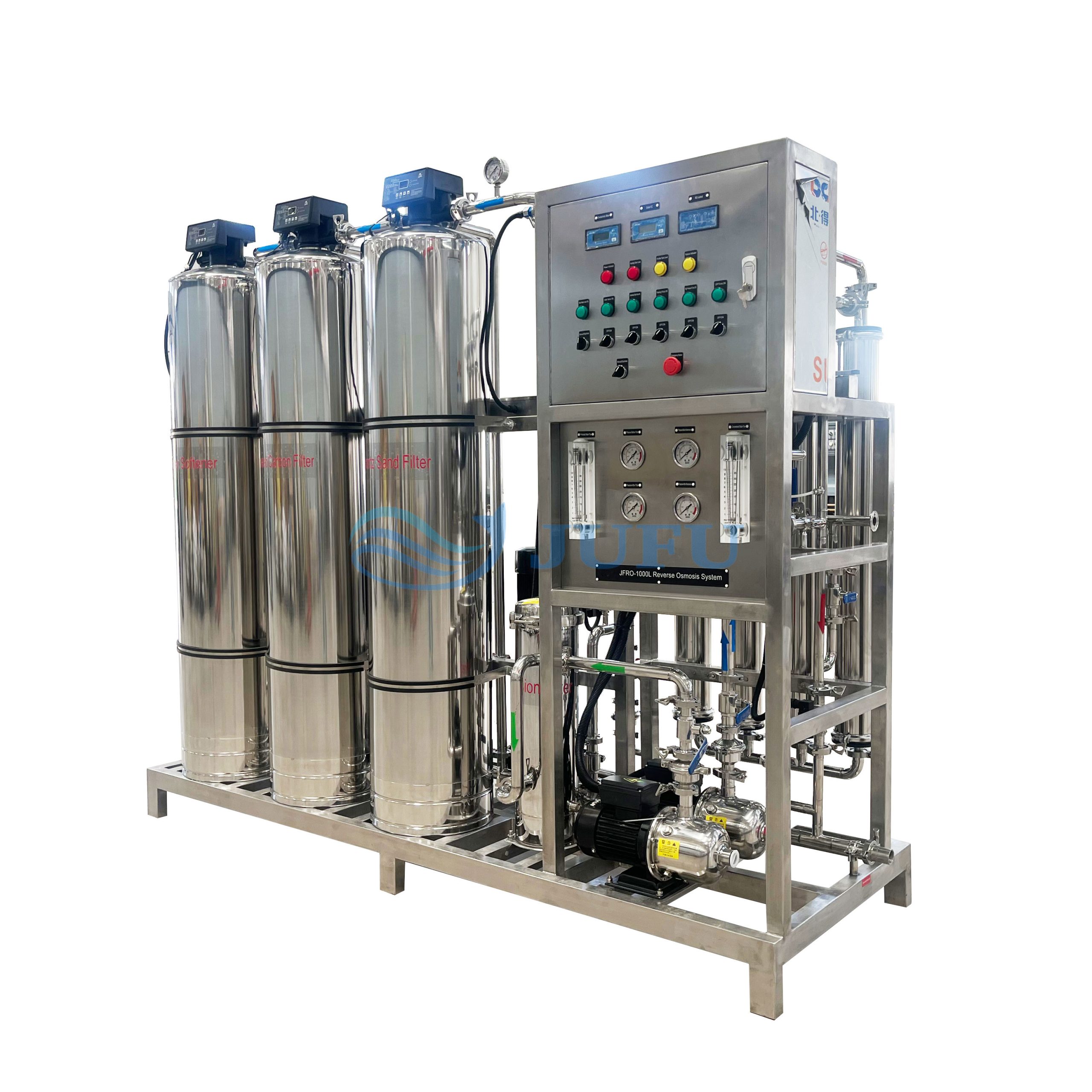

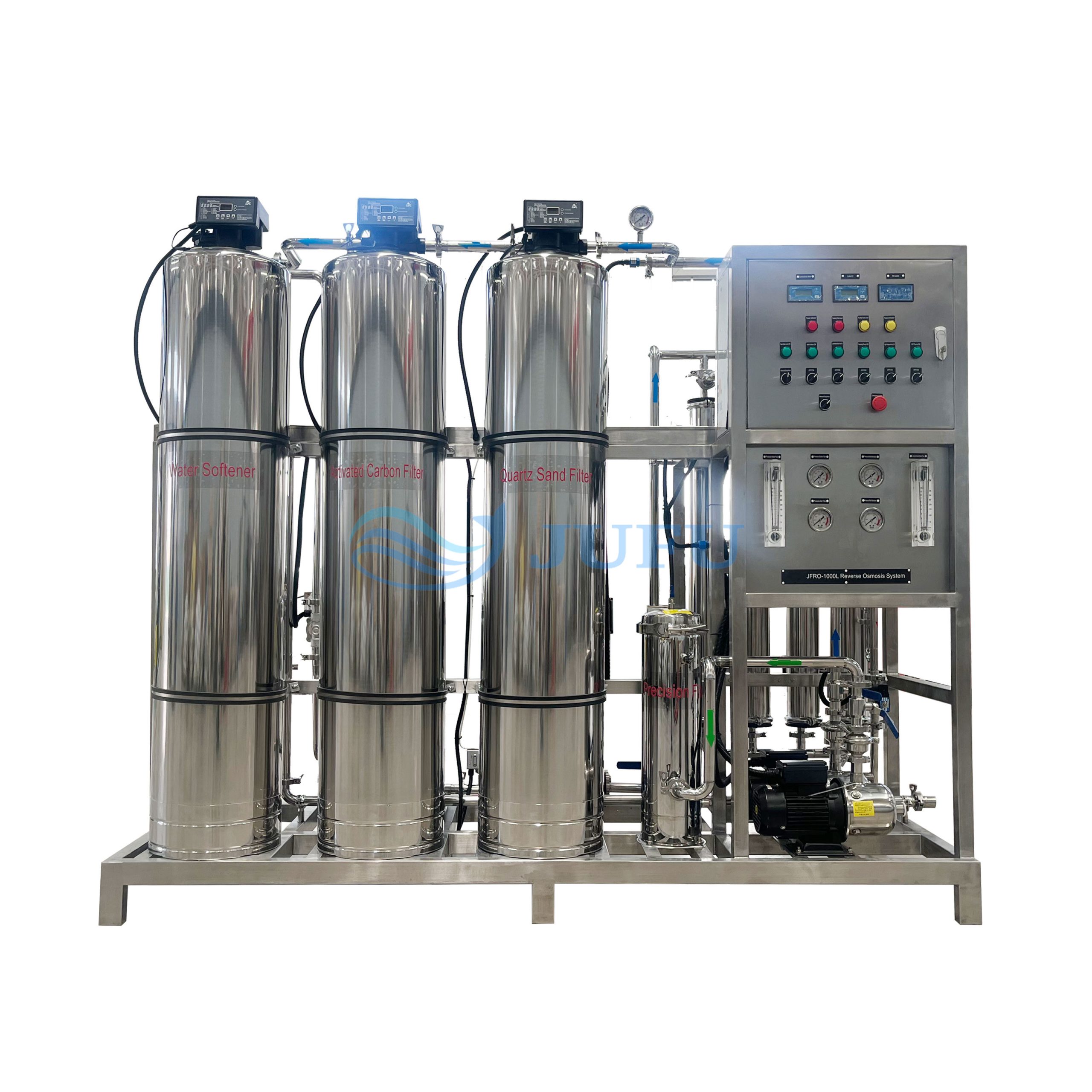

The details of 1000LPH reverse osmosis system

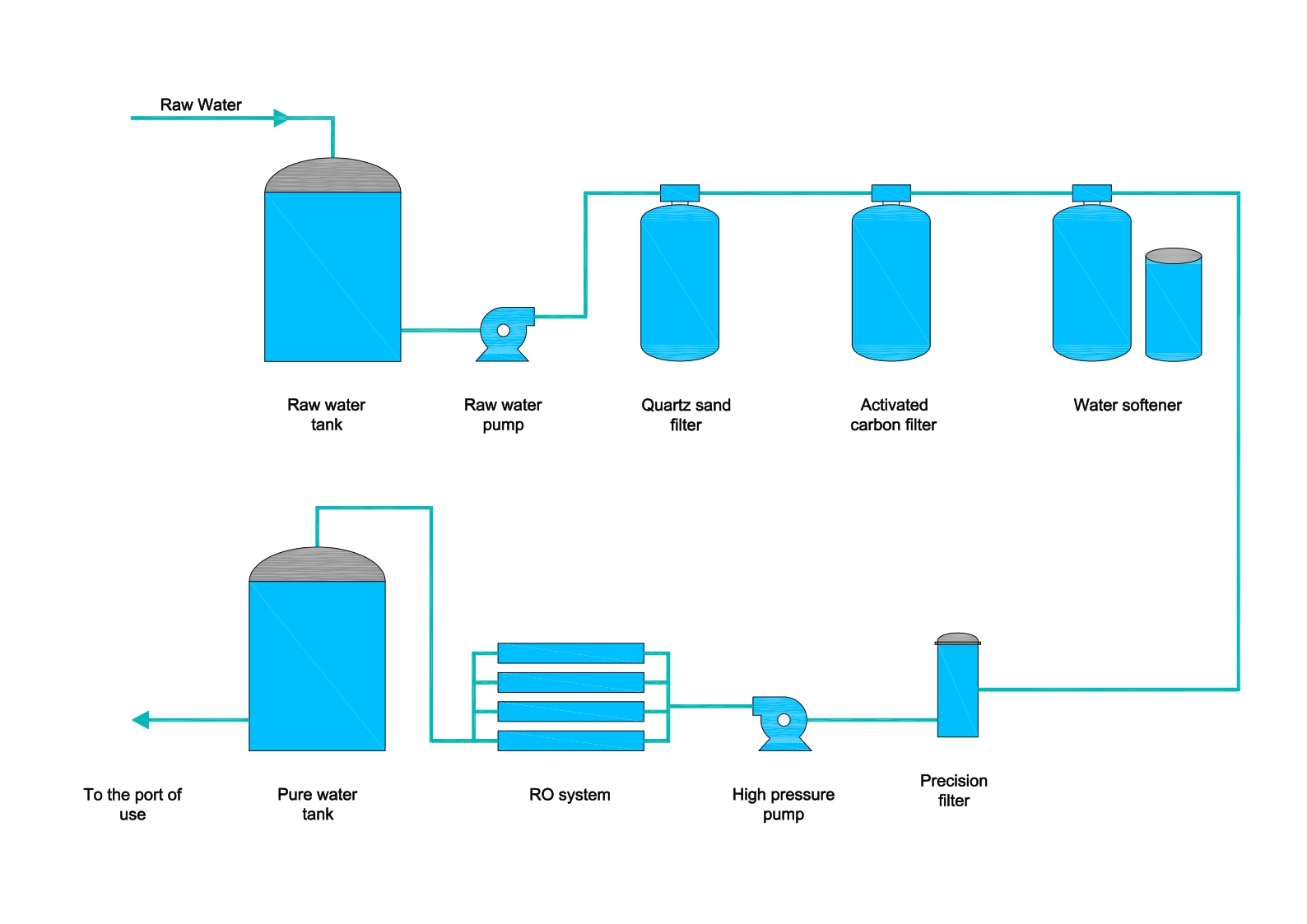

The working flow chart of commercial reverse osmosis system

Specification of 1000LPH reverse osmosis system

Model	JFRO-1000L (SUS304 )
Producing Capacity	1000L/H	RO membrane	4”
Recovery Rate	≥75%	Power Supply	Single-phase:  110/120/220V    50/60Hz
Operating Pressure	0.5-1.0MPa		Tri-phase: 110/220/380/415V  50/60Hz
Desalination Rate	99%	Power Consumption	3kW
Filtration Accuracy	0.0001 micron	Control Type	Manual control / Auto control
Feed Water Quality	SDI＜5    Free Chlorine Concentration<0.1mg/L       TDS＜2000mg/L
Features	Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.

What FACTORS will influnce the cost of Commercial reverse osmosis system?

Commercial reverse osmosis is not a one-size-fits-all system, it can be flexible to change according to the raw water in different working site.

Comprehensive blending system can be more effective in solving water problems.for example: PH dosing, scale inhibitor dosing,chemical dosing …

Here listed several factors that can influnence the costs:

1. Capacity of the commercial reverse osmosis system, lower producing capacity cost lower investment. The bigger the flowrate, the higher the cost;

2. Raw water quality will be the key factors in terms of water solution.Different TDS, conductivity, PH and hardness will be solved by different combinations, the cost will be influnenced accordingly;

3.Required purity of treated water.The tougher the standard, the higher the price will be;

4.Materials and key components applied to produce commercial reverse osmosis system. Solid skid and durable components ensure good operation of the product;

5.Advanced control system including touchscreen, PLC control, wifi connection.
