8000LPH Reverse Osmosis Water Filtration System
1. Model: JFRO-8000L
2. ISO9001 & CE certified
3. Capacity: 8000liter/hour
4. Desalination rate: 99.5%
5. Recovery rate: 50%
6. Membrane size: 8040
7. Control type: Auto
8. Applicable industries: Hotels, Food & Beverage factory, Farms, Restaurant,Water shop
9. Pre-shipment testing: Provided
10. Installation guidance: Online Video meeting
11. Warranty: 12 months
12. Package: Wooden case
13. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
JFRO-8000L is a mature RO system with hourly output of 8000liters.
Core Specifications:
1.Capacity: 8 m³/h continuous output
2.Recovery Rate: 50–75% (adjustable based on feedwater quality)
3.Membrane Configuration: 8″ spiral-wound polyamide elements (DOW Filmtec™/Toray™ compatible)
4.Pressure Vessels: FRP (fiberglass-reinforced) or stainless steel options
5.Modular Design: Skid-mounted for plug-and-play deployment
6.Low CIP Frequency: Anti-scaling pretreatment reduces chemical cleaning needs
Key Features of JFRO-8000L Water Filtration System
1.High-Efficiency Reverse Osmosis (RO) Technology
The system employs state-of-the-art RO technology to produce purified water ensuring compliance with international drinking water standards.
▲Produces 8 metric tons (8,000 liters) of purified water per hour
▲≥99% rejection rate of dissolved salts, bacteria, and organic contaminants
2.Customizable Output and Automation
Designed for flexibility, the equipment supports production capacities from 0.25T/H to 8T/H, making it ideal for both small-scale and large-scale operations. Its automated pretreatment system, minimizes manual intervention, enhancing operational efficiency.
▲PLC-based automation with touchscreen HMI (Optional)
▲Real-time monitoring of TDS, pressure, and flow rate
3.Adaptability to Diverse Water Sources
The system effectively processes municipal tap water, groundwater, and surface water, providing a reliable solution for regions with limited water infrastructure.
4.Industrial-Grade Construction
▲Stainless steel frame with corrosion-resistant piping
▲Compact structure to save space

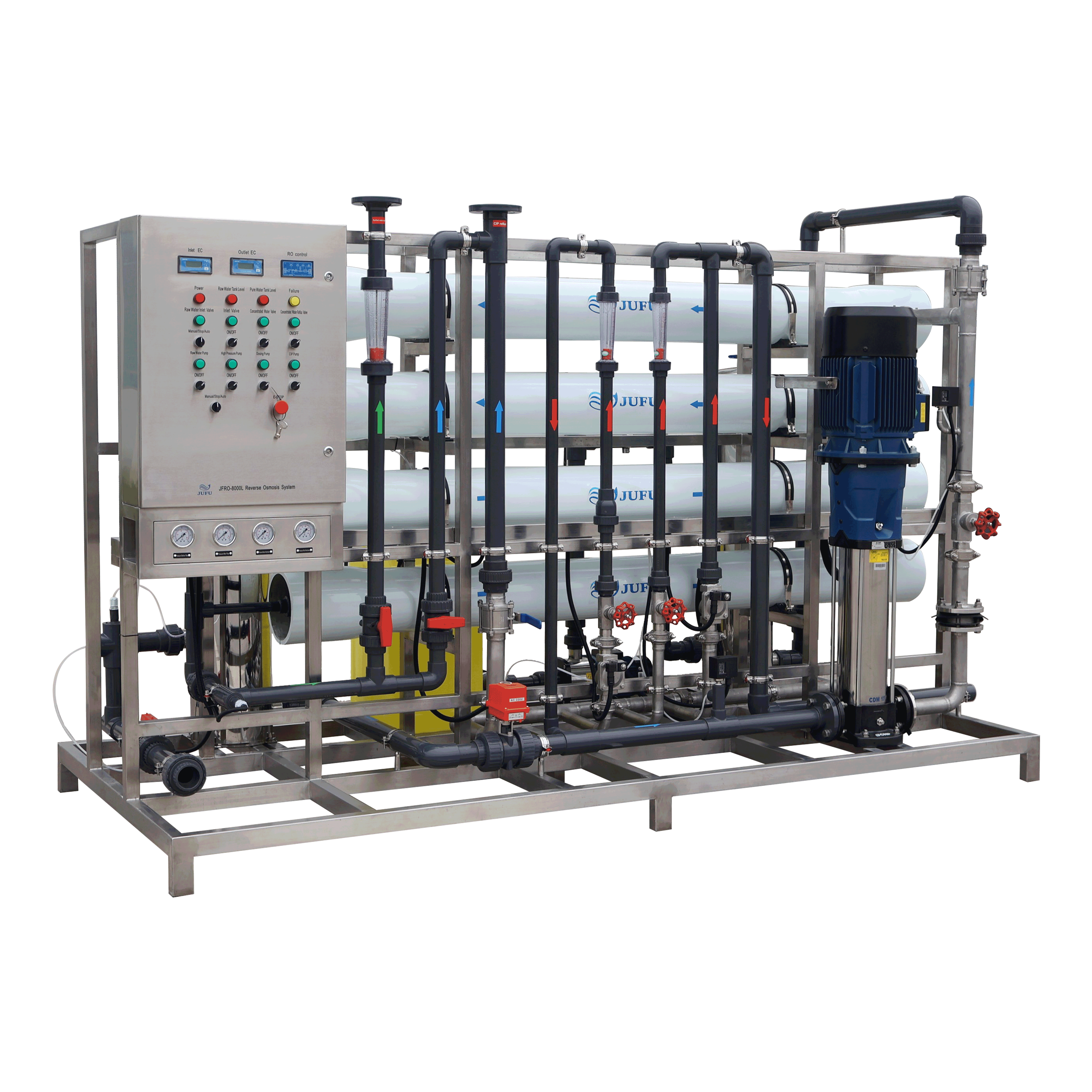

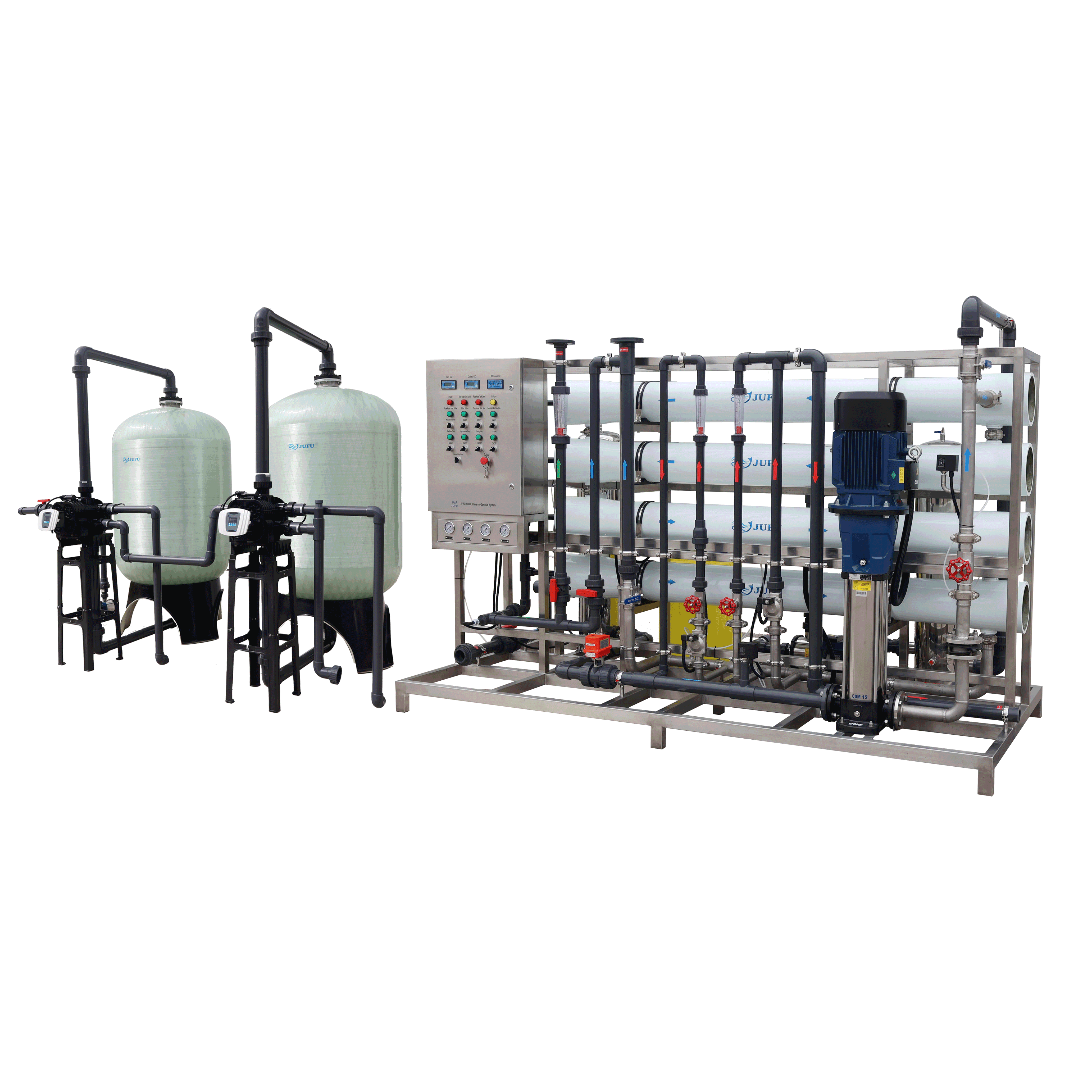

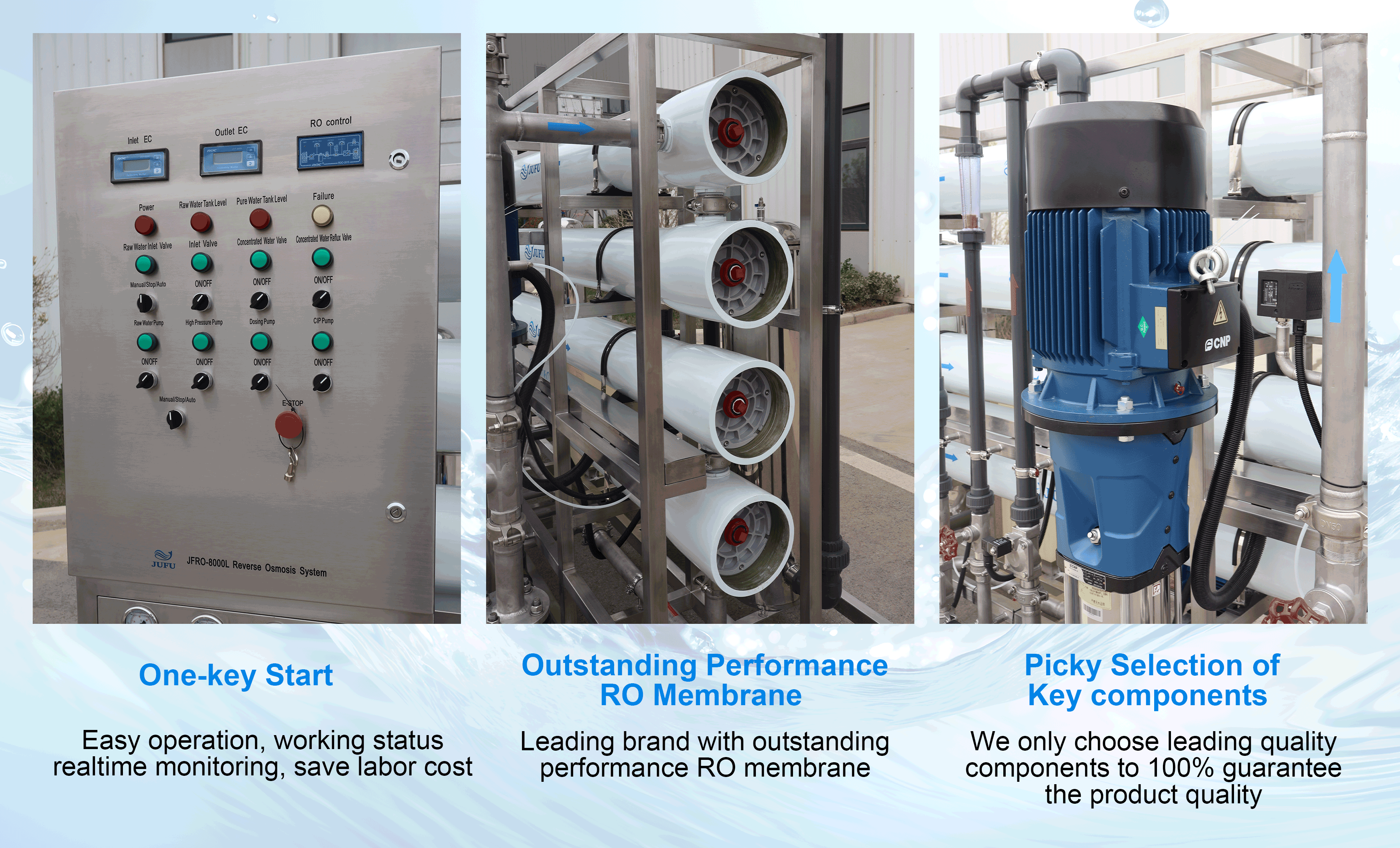

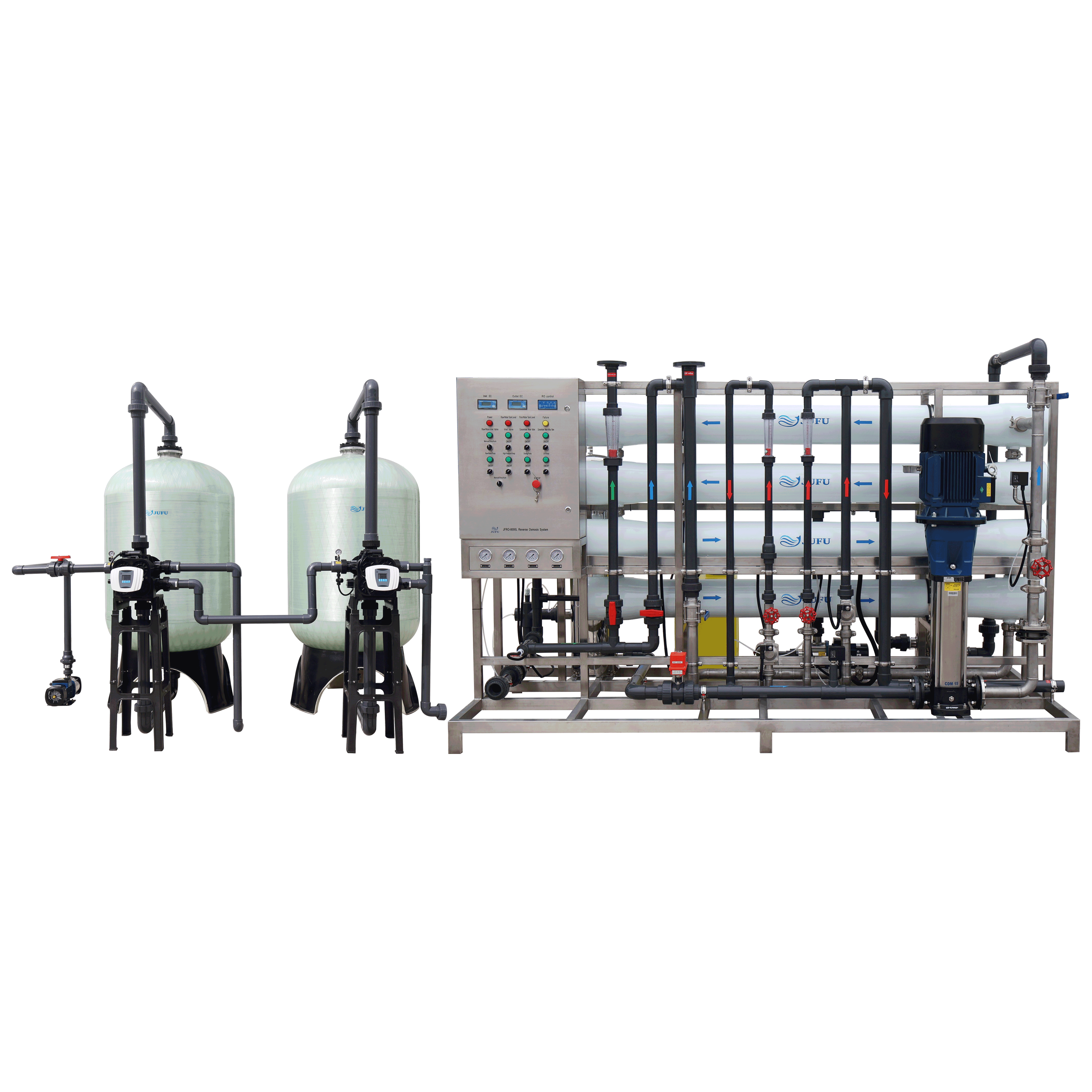

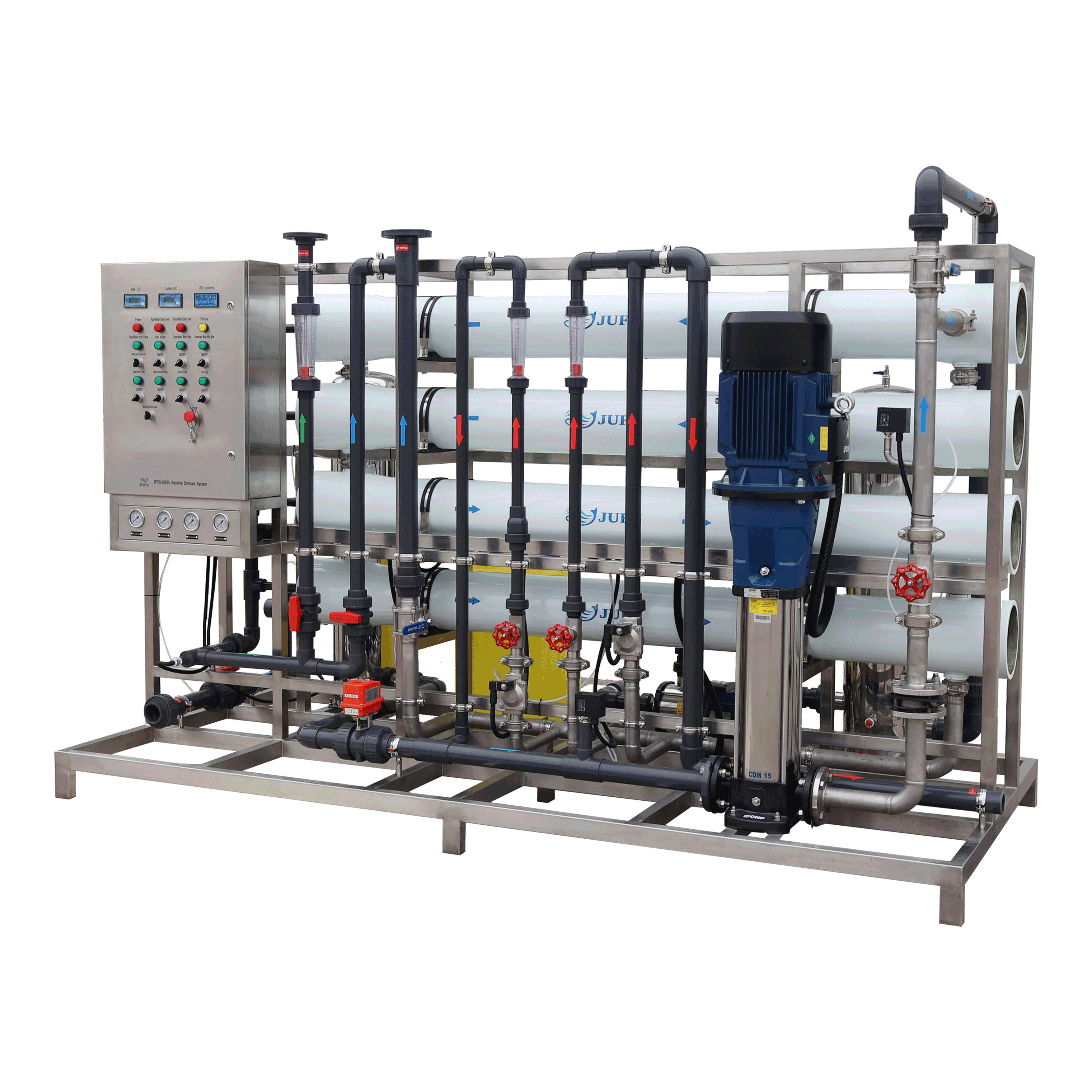

The details of JFRO-8000L Reverse Osmosis System
The Working Flow Chart of JFRO-8000L Reverse Osmosis System
Specification of JFRO-8000L Reverse Osmosis System
| Model | JFRO-8000L | ||
| Producing Capacity | 8000L/H | RO membrane | 8″ |
| Recovery Rate | ≥75% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 0.5-1.0MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Desalination Rate | 99% | Power Consumption | 10kW |
| Filtration Accuracy | 0.0001 micron | Control Type | Manual control / Auto control |
| Feed Water Quality | SDI＜5
Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L |
||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||
Typical Applications:
✓ Pharmaceutical water preparation
✓ Food & beverage production
✓ Boiler feed water treatment
✓ Semiconductor manufacturing
