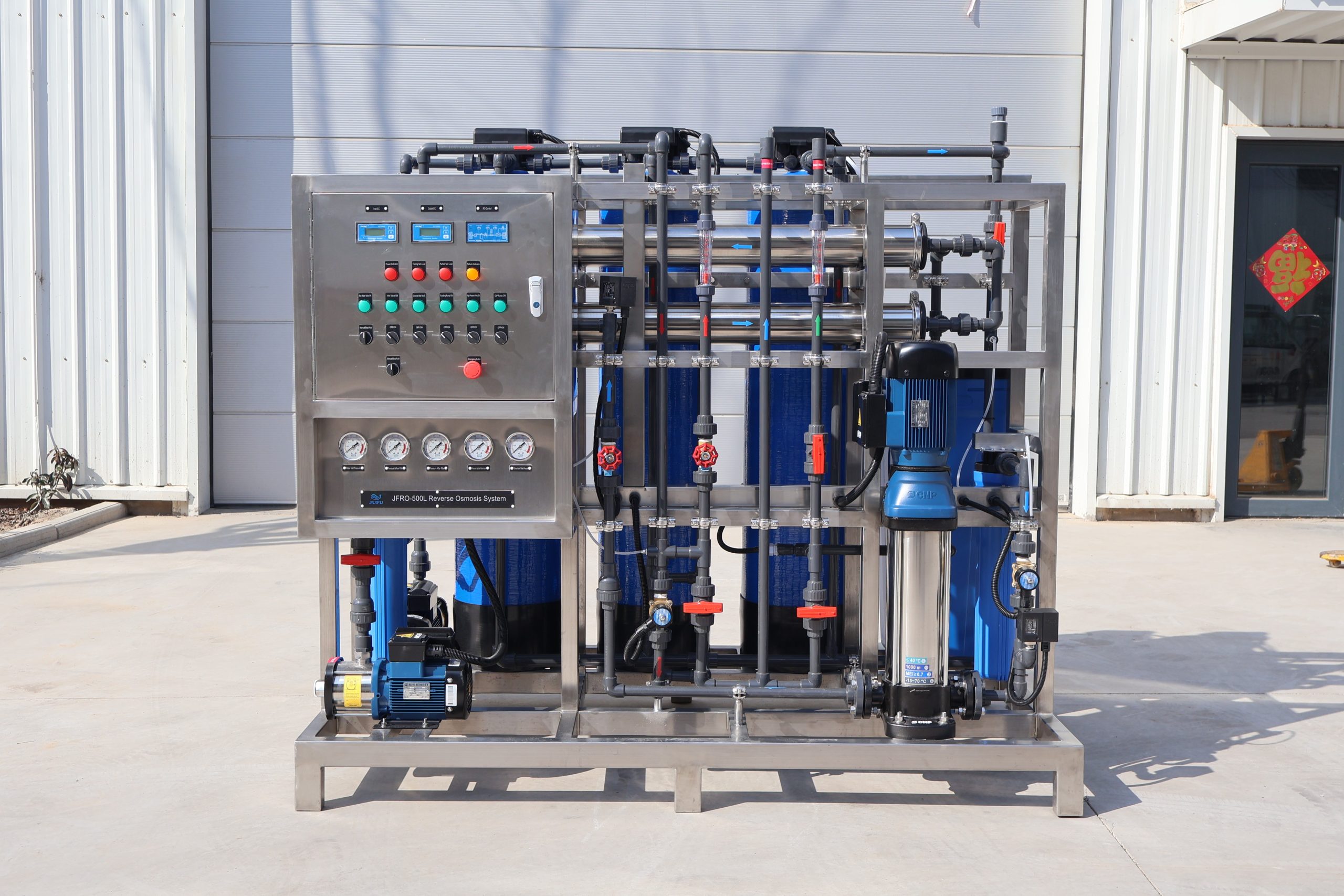

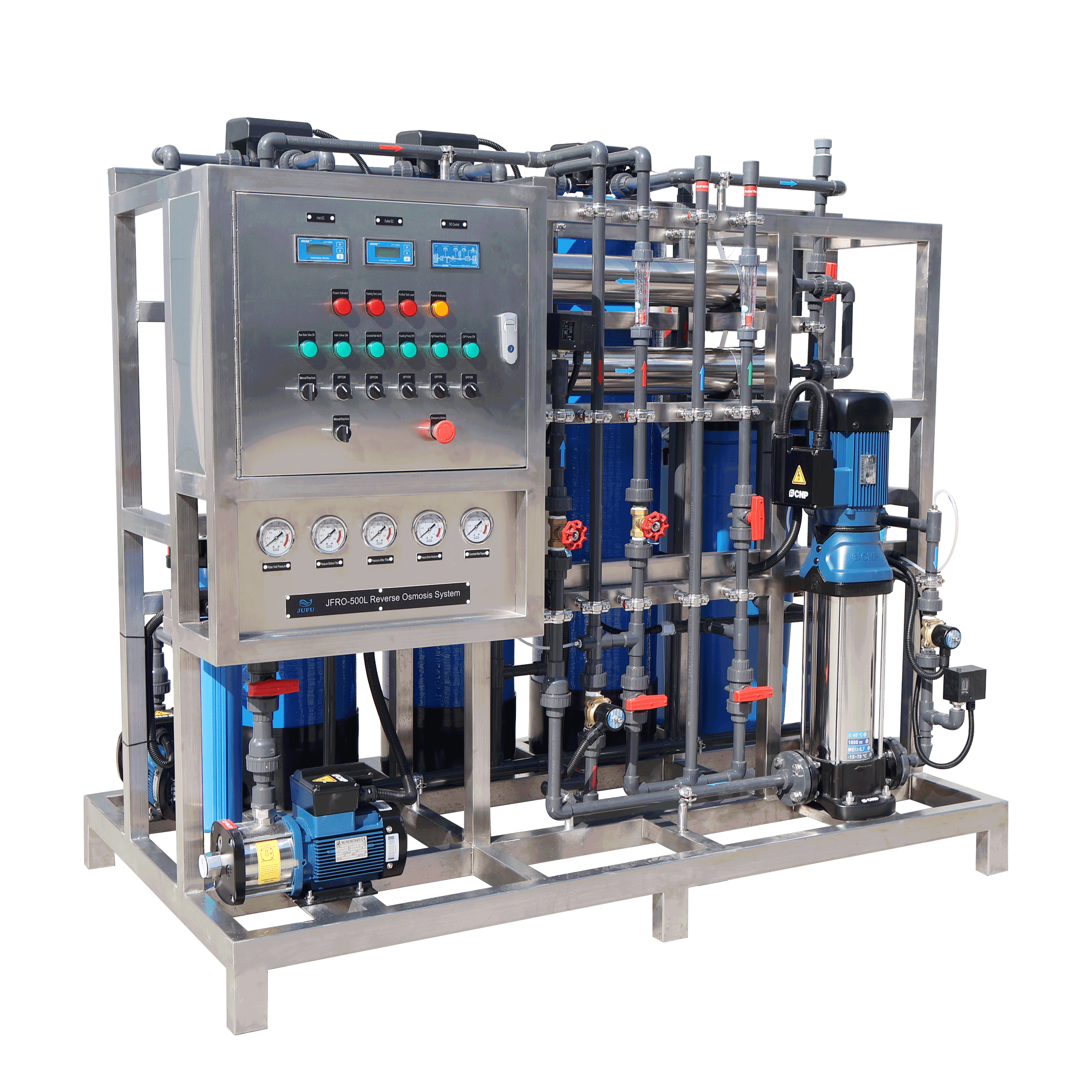

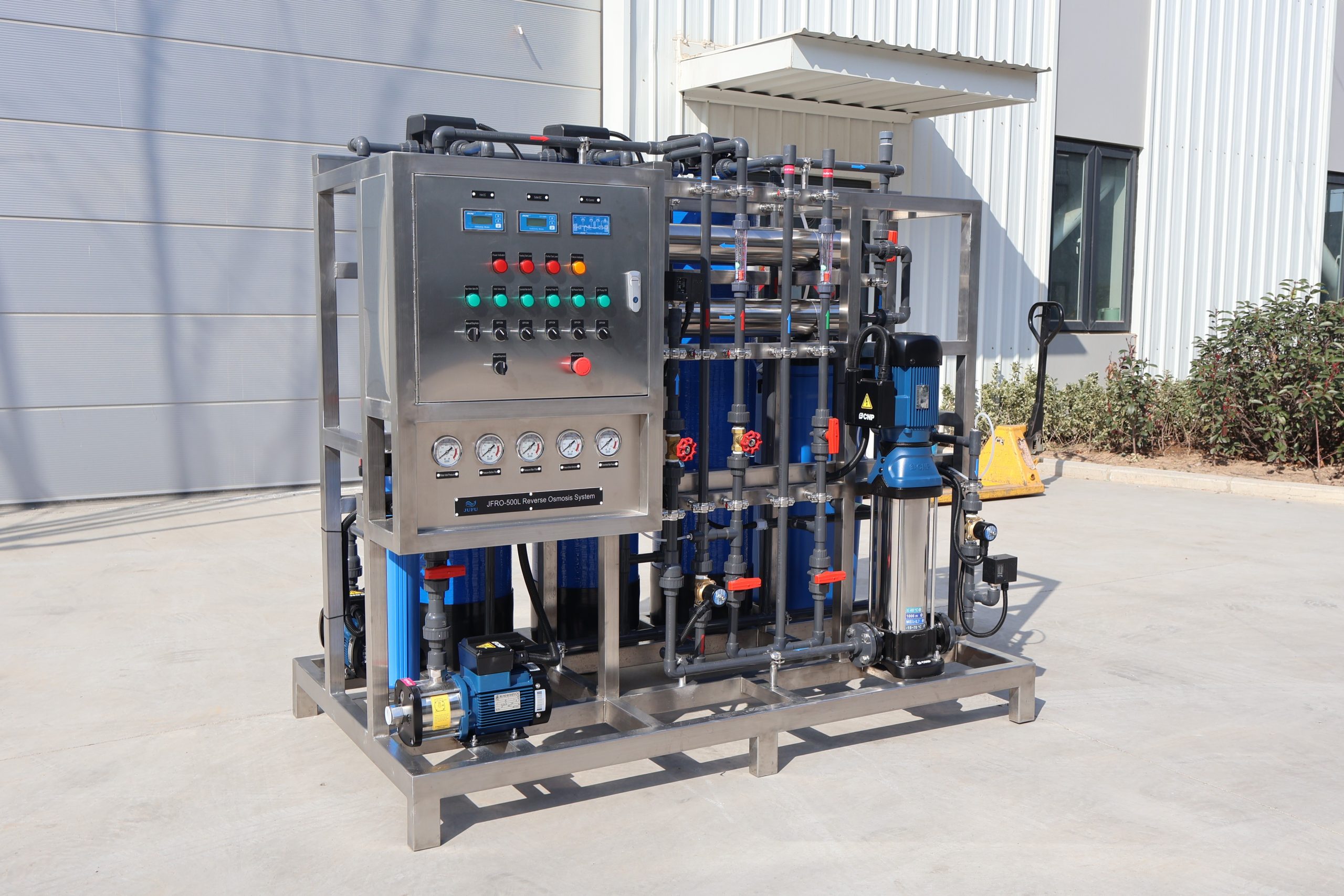

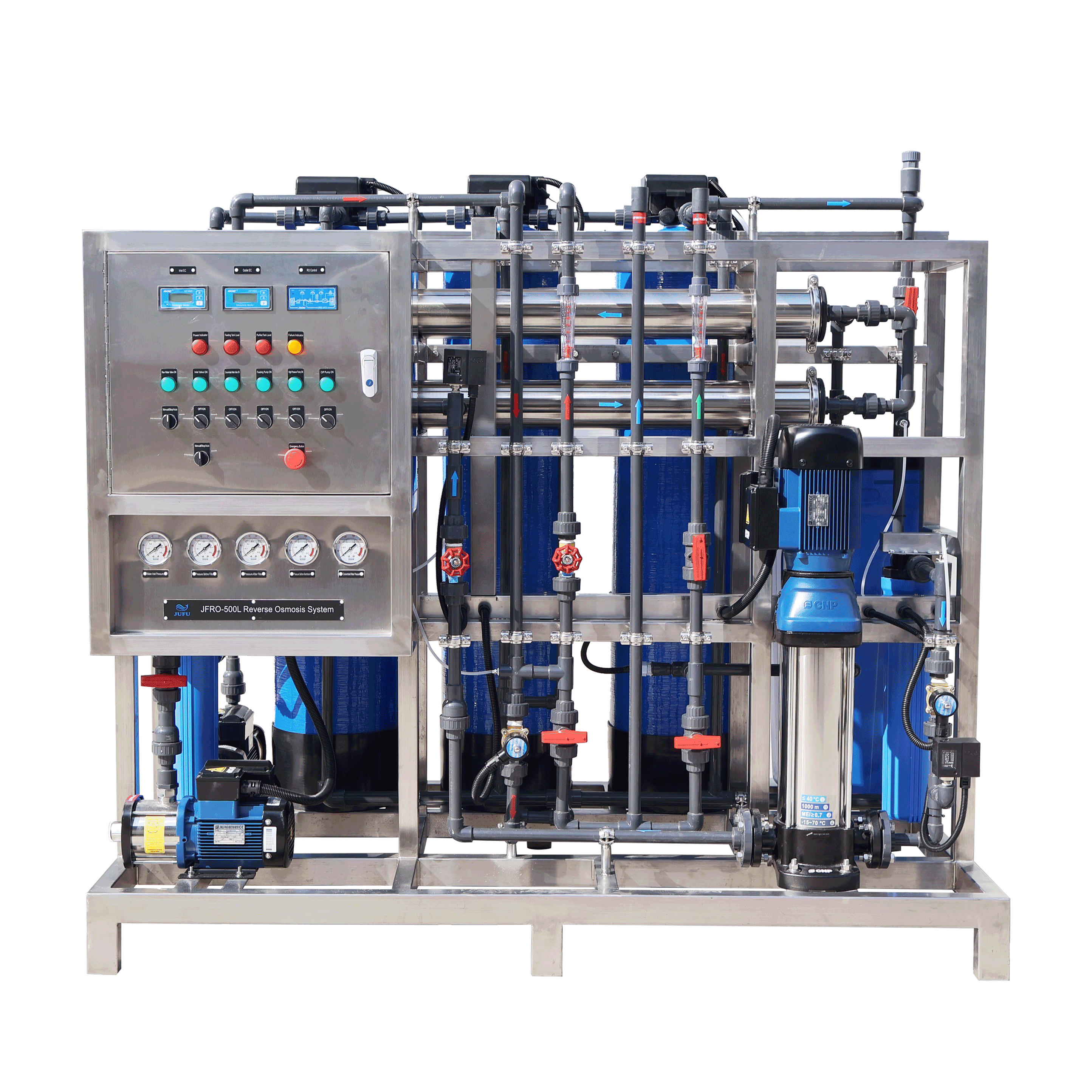

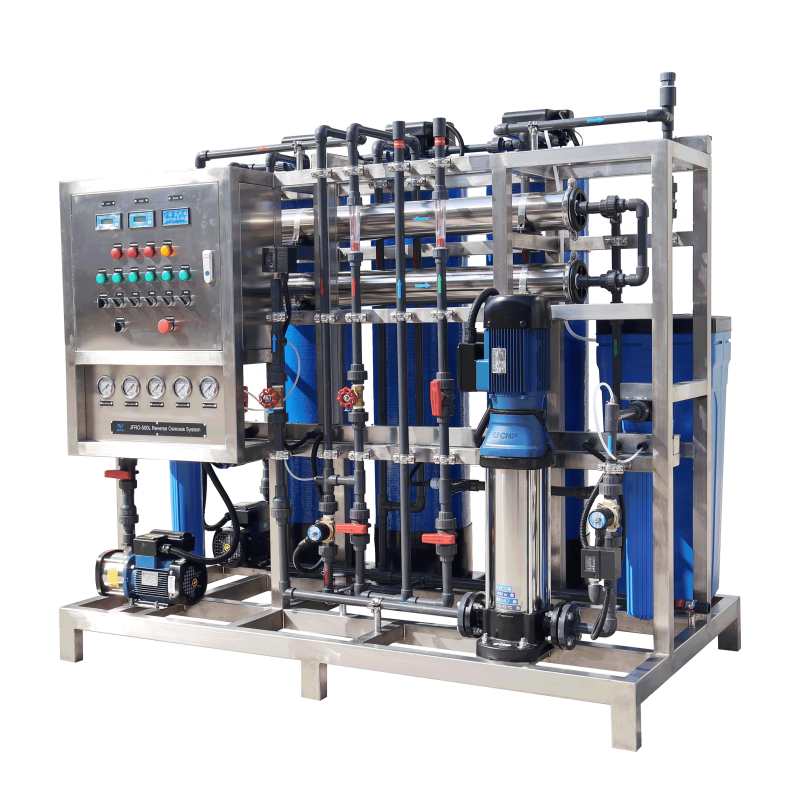

500LPH Reverse Osmosis Water Treatment System（With CIP）

1. Model: JFRO-500L

2. ISO9001 & CE certified

3. Capacity: 500liter/hour

4. Desalination rate: 99.5%

5. Recovery rate: 50%

6. Membrane size: 4040

7. Control type: Auto

8. Applicable industries: Hotels, Food & Beverage factory, Farms, Restaurant,Water shop

9. Pre-shipment testing: Provided

10. Installation guidance: Online Video meeting

11. Warranty: 12 months

12. Package: Wooden case

13. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia

Category:

500LPH Reverse Osomosis Water Treatment System（With CIP）

CIP (Clean-In-Place) chemical cleaning system is a method used in industrial water treatment, food processing, and pharmaceuticals to clean equipment, pipelines, and containers without disassembly.

How CIP Works

CIP circulates cleaning solutions (alkaline, acid, or disinfectant) through equipment to remove contaminants. The typical steps include:

  1. Pre-rinse – Flush with water to remove residues.
  2. Alkaline wash – Removes organic contaminants like grease and proteins.
  3. Intermediate rinse – Washes away the alkaline solution.
  4. Acid wash – Removes inorganic scale and metal oxides.
  5. Final rinse – Ensures no cleaning agent remains.
  6. Disinfection (optional) – Used in industries requiring sterilization.

Applications in Water Treatment

  • Reverse Osmosis (RO) systems – Prevents membrane fouling.
  • Ultrafiltration (UF) systems – Removes biofilms and deposits.
  • EDI systems – Prevents resin contamination.
  • Cooling water systems – Eliminates biofouling and scaling.

Benefits of CIP

  • Increases efficiency – Reduces downtime and improves performance.
  • Lowers maintenance costs – Extends equipment lifespan.
  • Optimizes chemical use – Minimizes waste and environmental impact.
  • Enhances safety – Reduces human exposure to chemicals.

The details of 500LPH reverse osmosis system

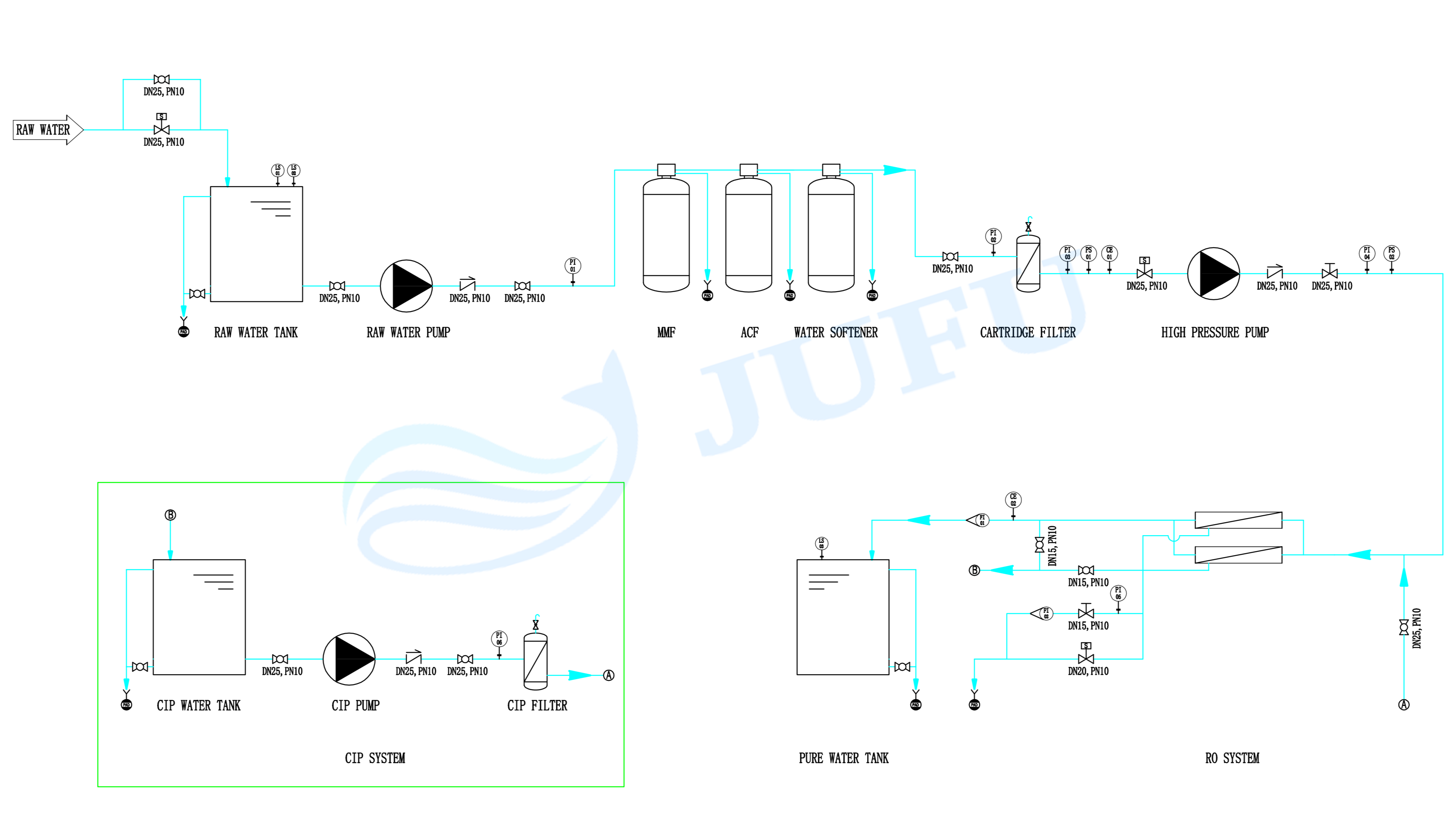

Working Flow Chart

Specification of 500LPH reverse osmosis system

Model JFRO-500L
Producing Capacity 500L/H RO membrane 4″
Recovery Rate ≥75% Power Supply Single-phase:  110/120/220V    50/60Hz
Operating Pressure 0.5-1.0MPa Tri-phase: 110/220/380/415V  50/60Hz
Desalination Rate 99% Power Consumption 2kW
Filtration Accuracy 0.0001 micron Control Type Manual control / Auto control
Feed Water Quality SDI＜5

Free Chlorine Concentration<0.1mg/L

DS＜2000mg/L
Features Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.
