High flux and highly fouling-resistant polyamide reverse osmosis membrane type RO system

High flux and highly fouling-resistant Reverse Osmosis RO system is designed to handle raw water with TDS between 2000-5000ppm.

If your water cannot be handled by our standard RO, which can treat the raw water TDS<2000ppm, our engineer will double check your water report and based on your real scenario to customize solution for you, normally the anti-fouling RO system will work.

The anti-fouling reverse osmosis membrane is suitable for more stringent pretreatment, but the feed water still contains organic pollutants and other pollutants. The new Anti-fouling RO Membrane has excellent anti-fouling ability and cleanability. Because its membrane is electrically neutral, it greatly reduces the adsorption of bacteria and microorganisms on the membrane surface; the widest water supply channel makes it not only strong against pollution, but also effective in recovery after chemical cleaning. It is widely used in the regeneration and utilization of urban sewage and industrial wastewater, as well as the desalination of slightly polluted surface water, the reuse of cooling cycle sewage and other application fields.

Specification of 1000LPH reverse osmosis system

Model	JFRO-500L
Producing Capacity	500L/H	RO membrane	4″
Recovery Rate	≥75%	Power Supply	Single-phase:  110/120/220V    50/60Hz
Operating Pressure	0.5-1.0MPa		Tri-phase: 110/220/380/415V  50/60Hz
Desalination Rate	99%	Power Consumption	2kW
Filtration Accuracy	0.0001 micron	Control Type	Manual control / Auto control
Feed Water Quality	SDI＜5    Free Chlorine Concentration<0.1mg/L       TDS＜2000mg/L
Features	Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.

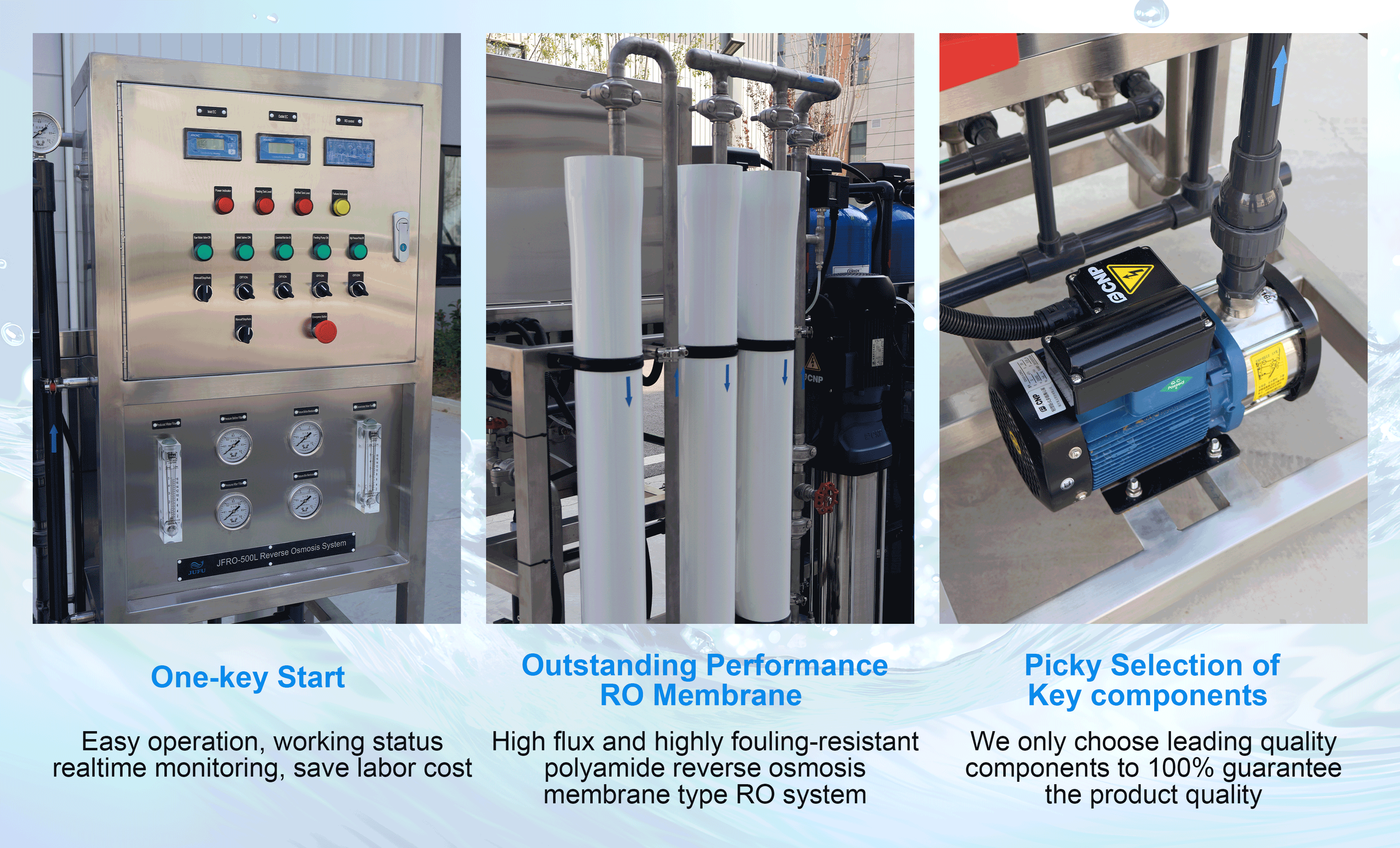

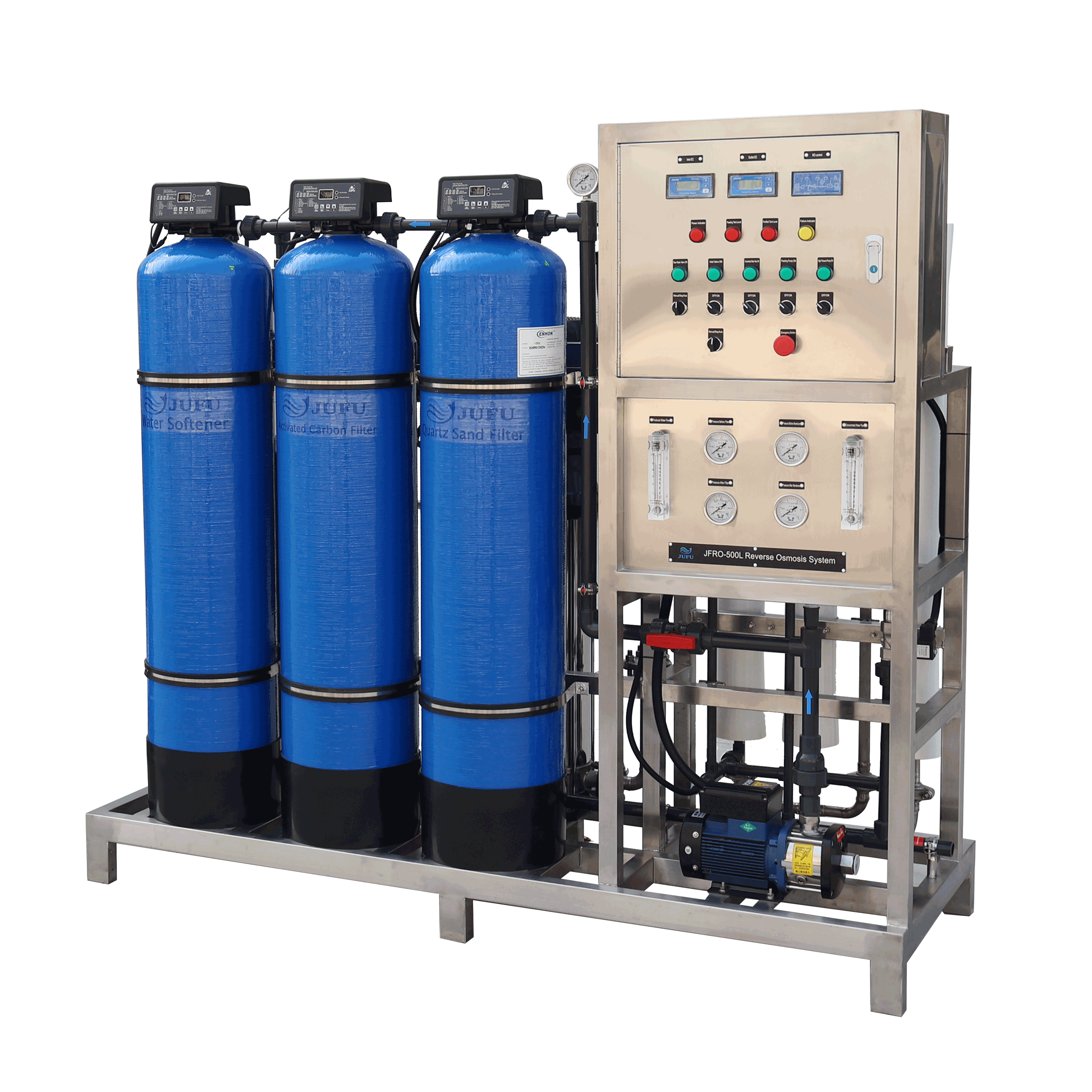

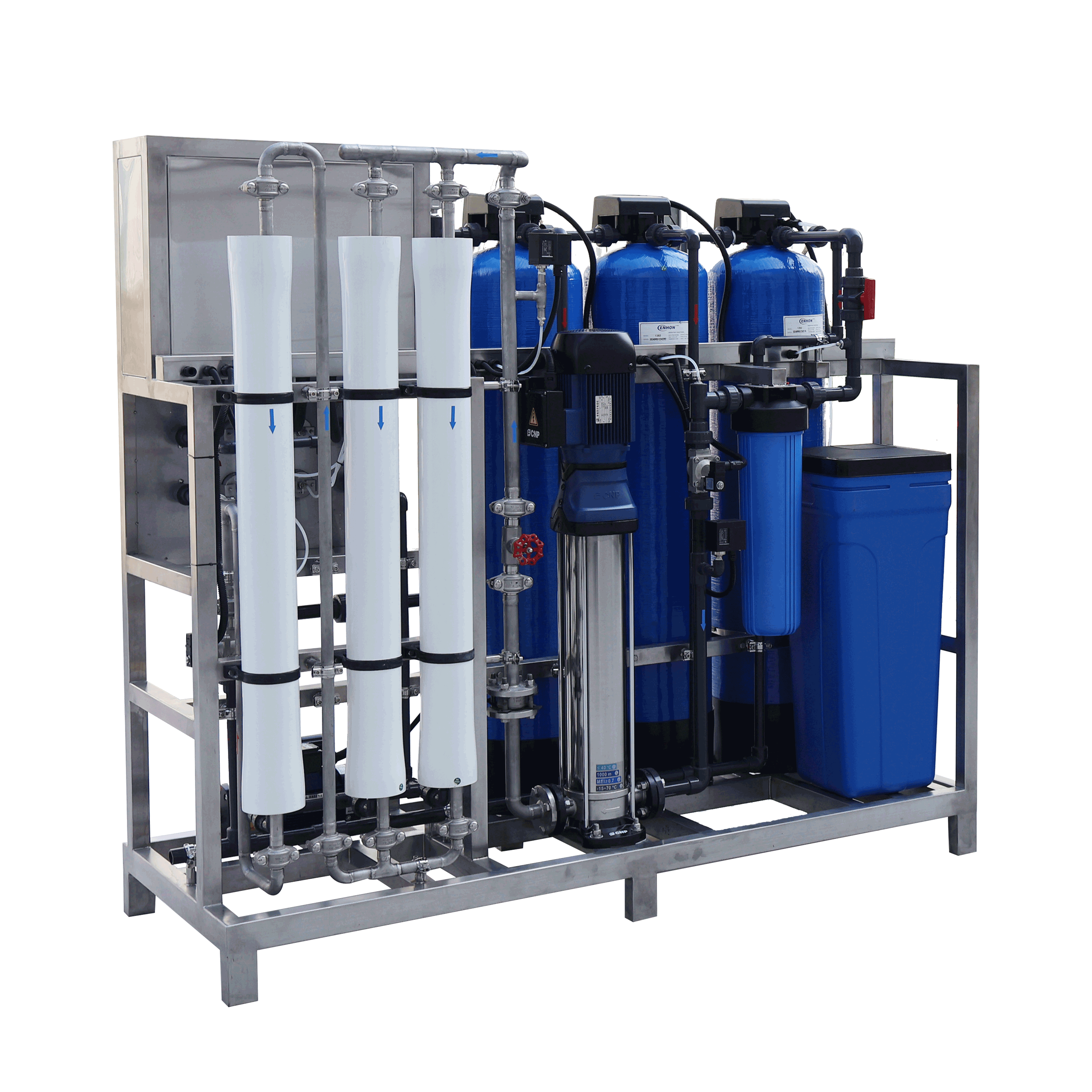

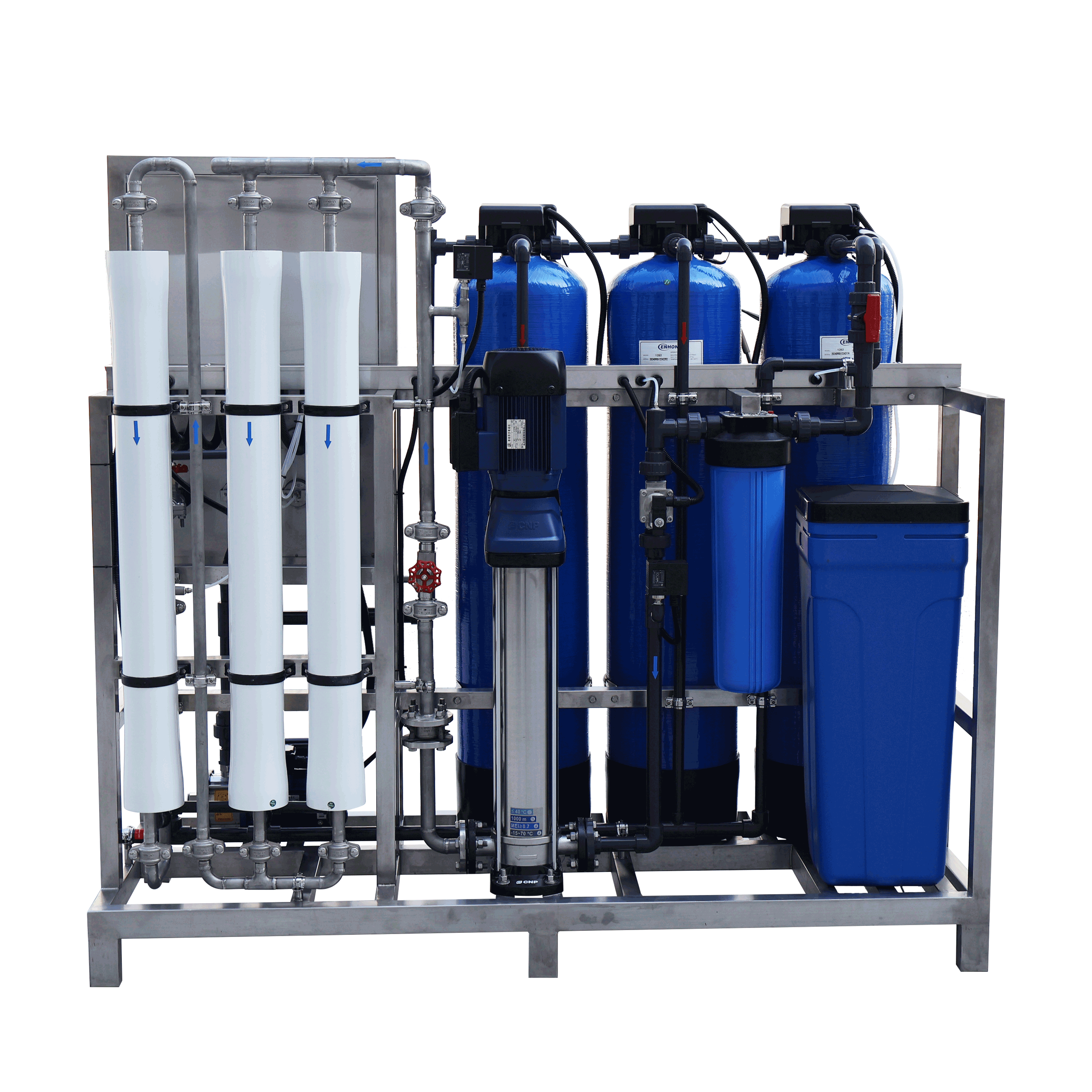

The details of 500LPH reverse osmosis system

Advantages of anti-fouling RO type

1. High rejection membrane that delivers superior water quality
2. Excellent fouling resistance
3. Well suited for low quality feed water across varying operating conditions
4. The membrane has high permeability.

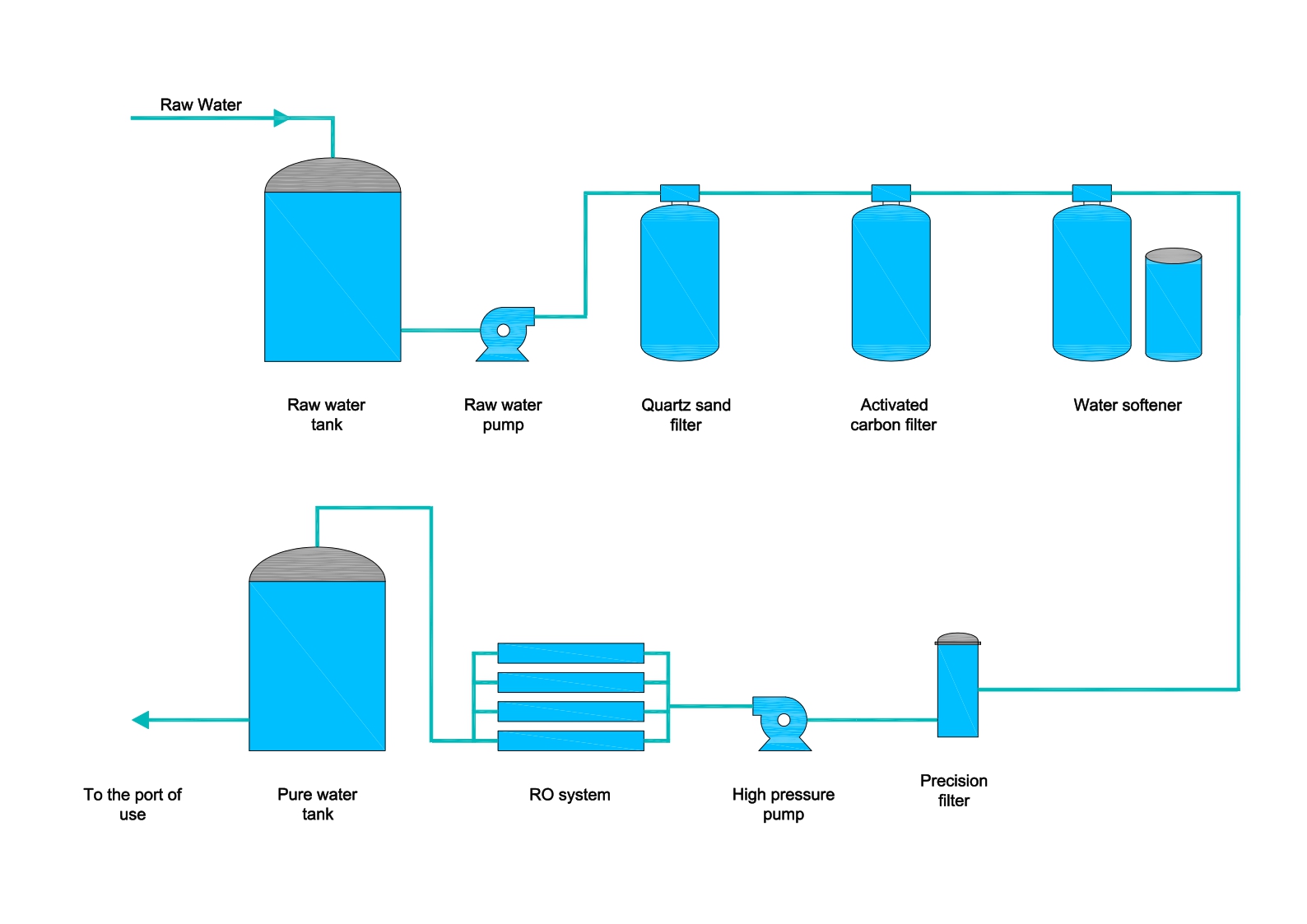

Work flow chart

What is the difference between Ordinary RO membrane and Anti-fouling RO membrane?

1. Compared with ordinary Reverse Osmosis Membrane, the anti-fouling reverse osmosis membrane has improved the membrane surface roughness and electrical properties of the membrane surface, which improves the anti-pollution ability, reduces the number of chemical cleanings, and saves operating costs.
2. Anti-pollution reverse osmosis membrane, as a new type of reverse osmosis membrane technology, is widely used in projects such as concentration, purification, separation, etc., especially in waste water recovery, reclaimed water reuse and other projects, playing a key role.
3. It is hardly affected by the adsorption of charged substances such as surfactants. Different from the structure and material of the conventional filter, it effectively improves the anti-biological fouling performance of the Reverse Osmosis Membrane Element and ensures the stable operation of the water treatment system.
4. Anti-pollution reverse osmosis membrane has good anti-pollution ability and cleaning performance, which greatly reduces the adsorption of bacteria and microorganisms on the membrane surface. The water supply channel is very wide, so the water flow is large.
