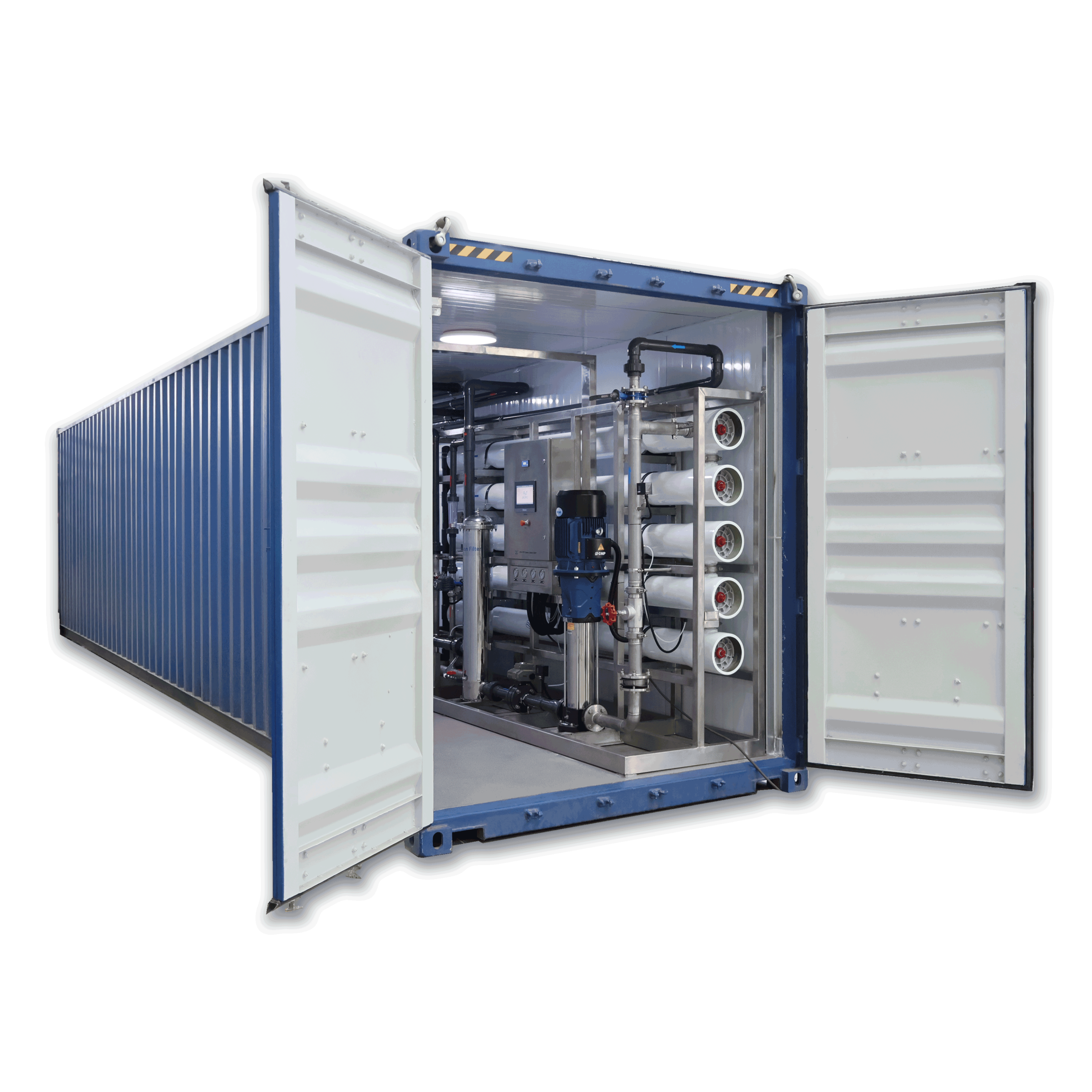

15TPH Containerized Reverse Osmosis Water Treatement System

15TPH Containerized Reverse Osmosis Water Treatement System

JFRO-15T Containerized RO system introduces the world’s most advanced membrane separation technology – reverse osmosis RO membrane technology. It relies on the reverse osmosis membrane under pressure to make the solvent in solution and solute separation process. As the pore size of reverse osmosis membrane is less than 0.0005μm, the equipment effectively removes bacteria, inorganic salts, viruses and pesticides and other carcinogens from the water, removal rate: >98%.

The main parts of the system are made of stainless steel, with compact size, easy operation, low energy consumption, a full set of water quality online testing, can monitor the water quality in time; complete high and low pressure protection system, effectively protect the high-pressure pumps and RO membranes, to extend the service life of the equipment. It is the ideal equipment for manufacturing pure water.

The system includes a raw water pump, a quartz sand filter, an activated carbon filter, a set of scale inhibitor dosing system, a 5m security filter, a set of single-stage RO membrane, which is designed on a stainless steel frame. The complete set of equipment has a variety of valves and leave a variety of instrumentation interfaces, to facilitate the user site maintenance and automation of water station operation.

Working Flow

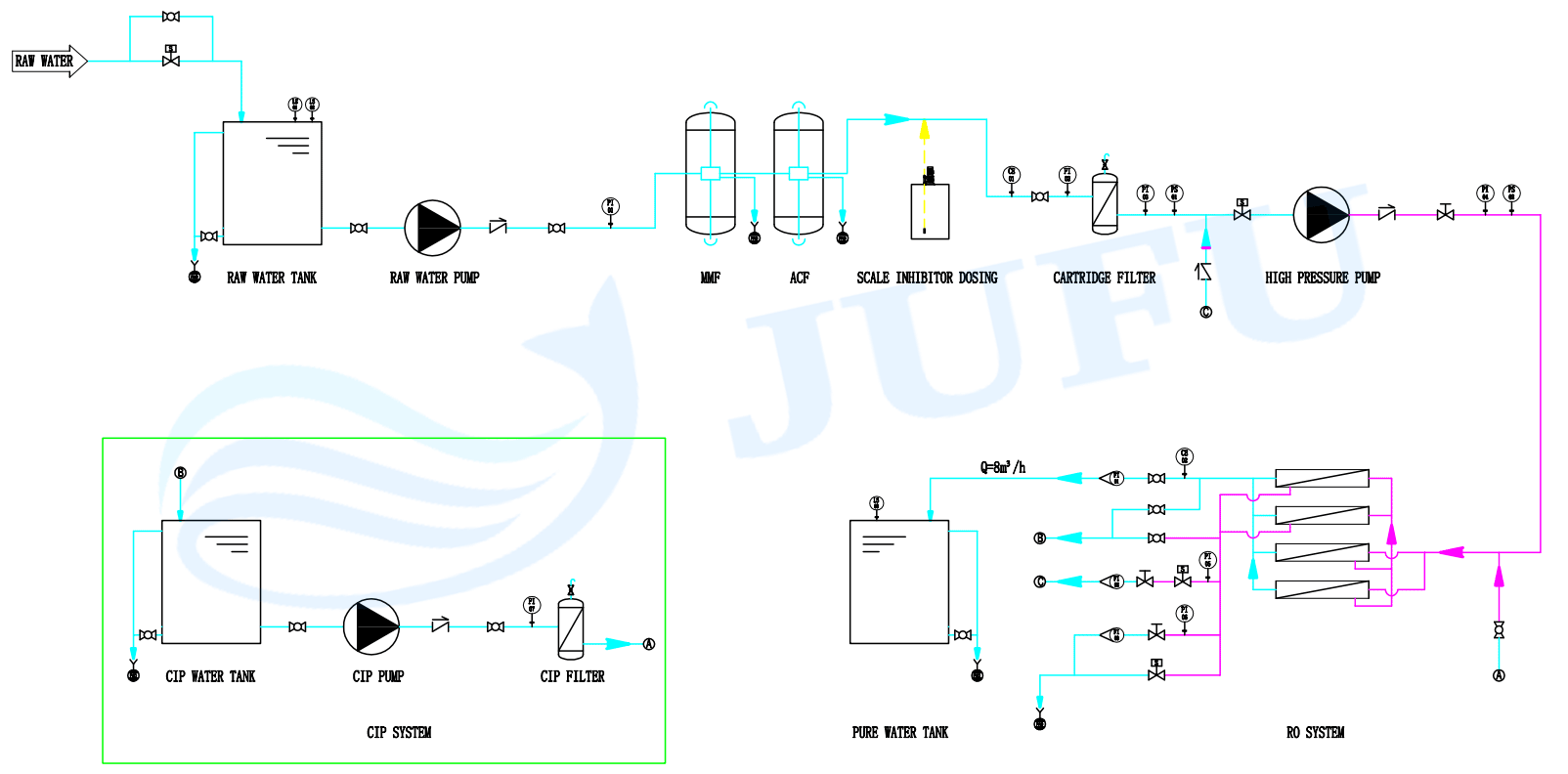

The working flow chart of the system:

Raw water tank→Booster pump→Quartz sand filter→Activated carbon filter→Scale inhibitor dosing→Precision filter→High pressure pump→Reverse Osmosis System→Pure water tank

Remarks: Raw water tank and pure water tank need to prepared by customer.

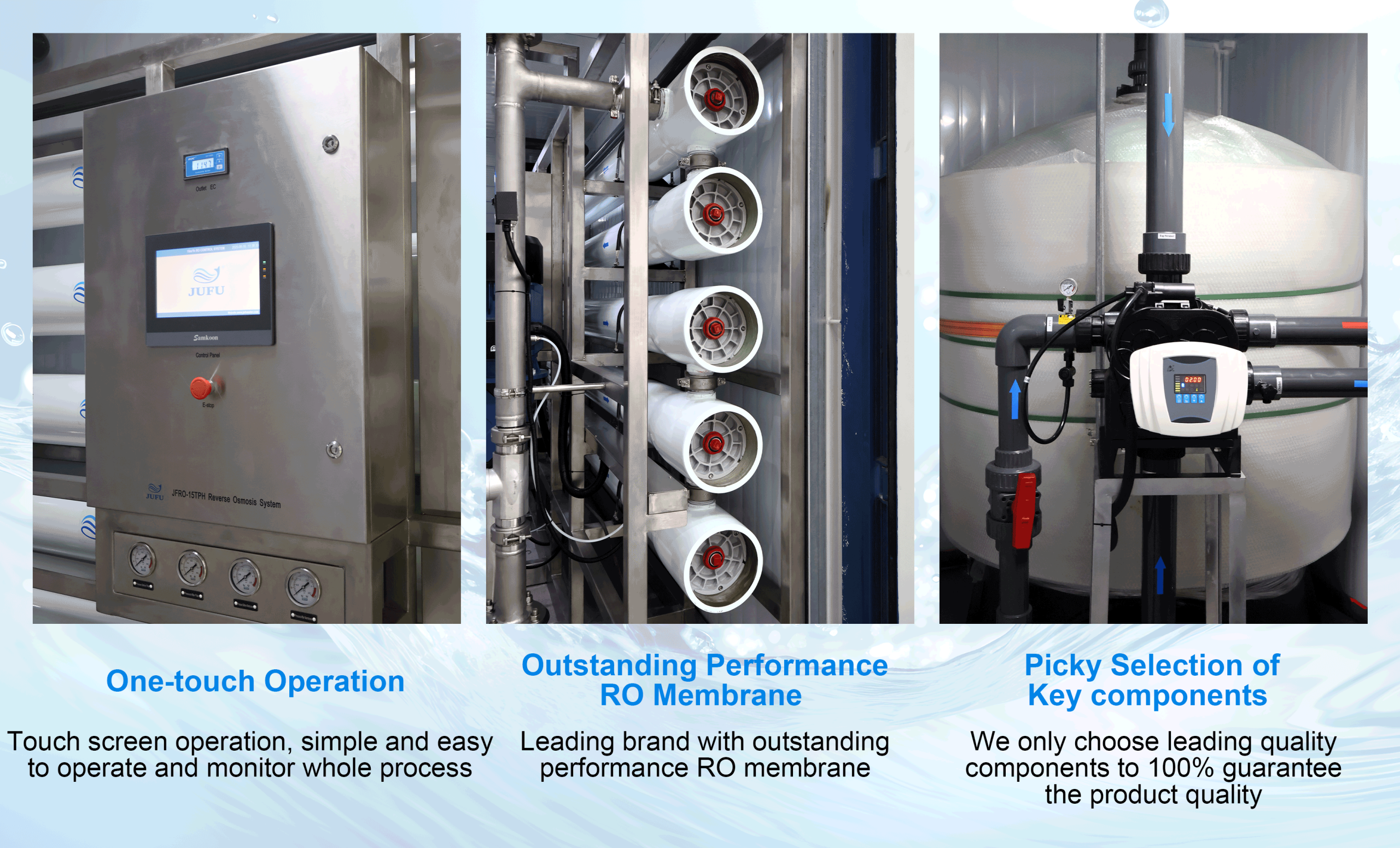

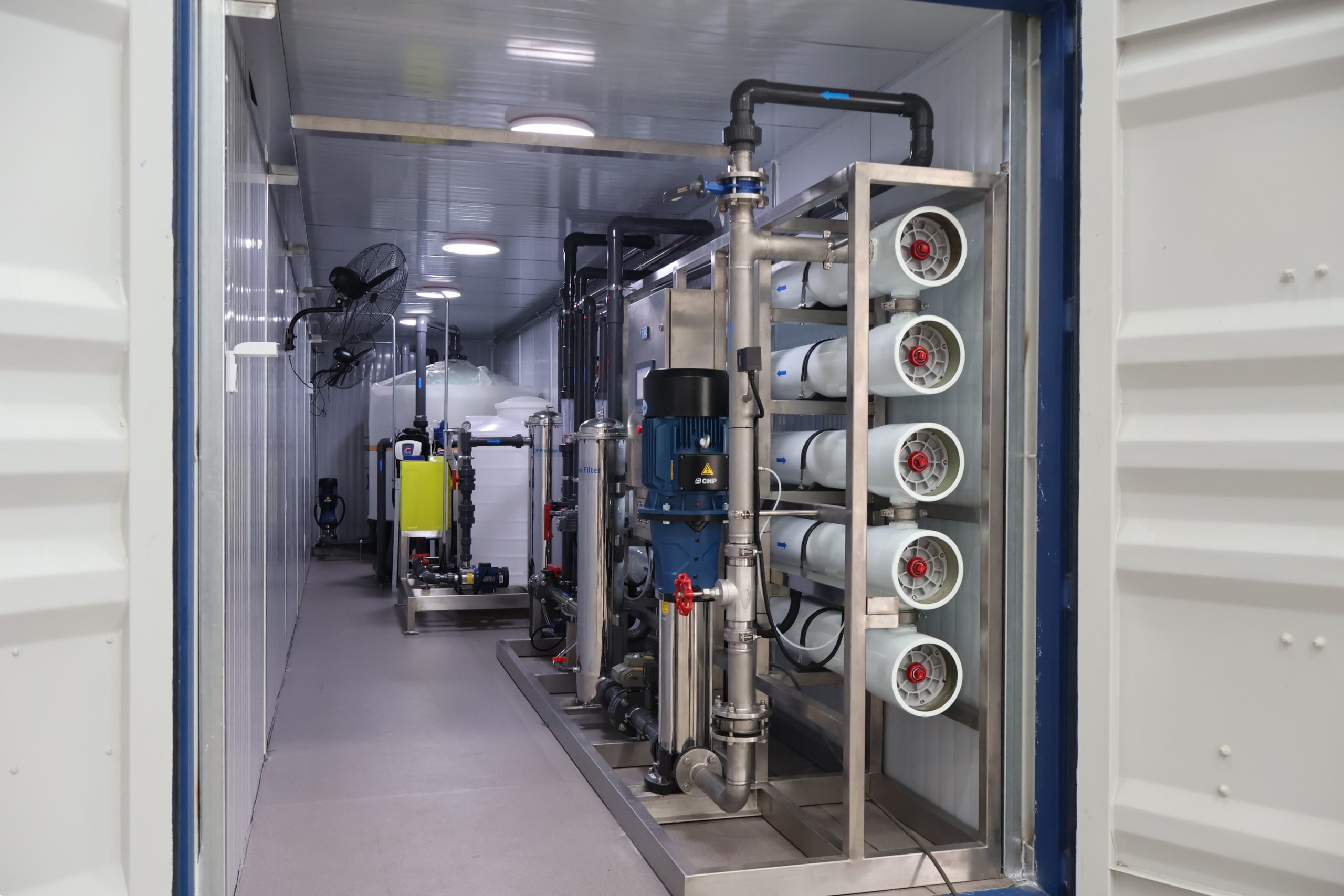

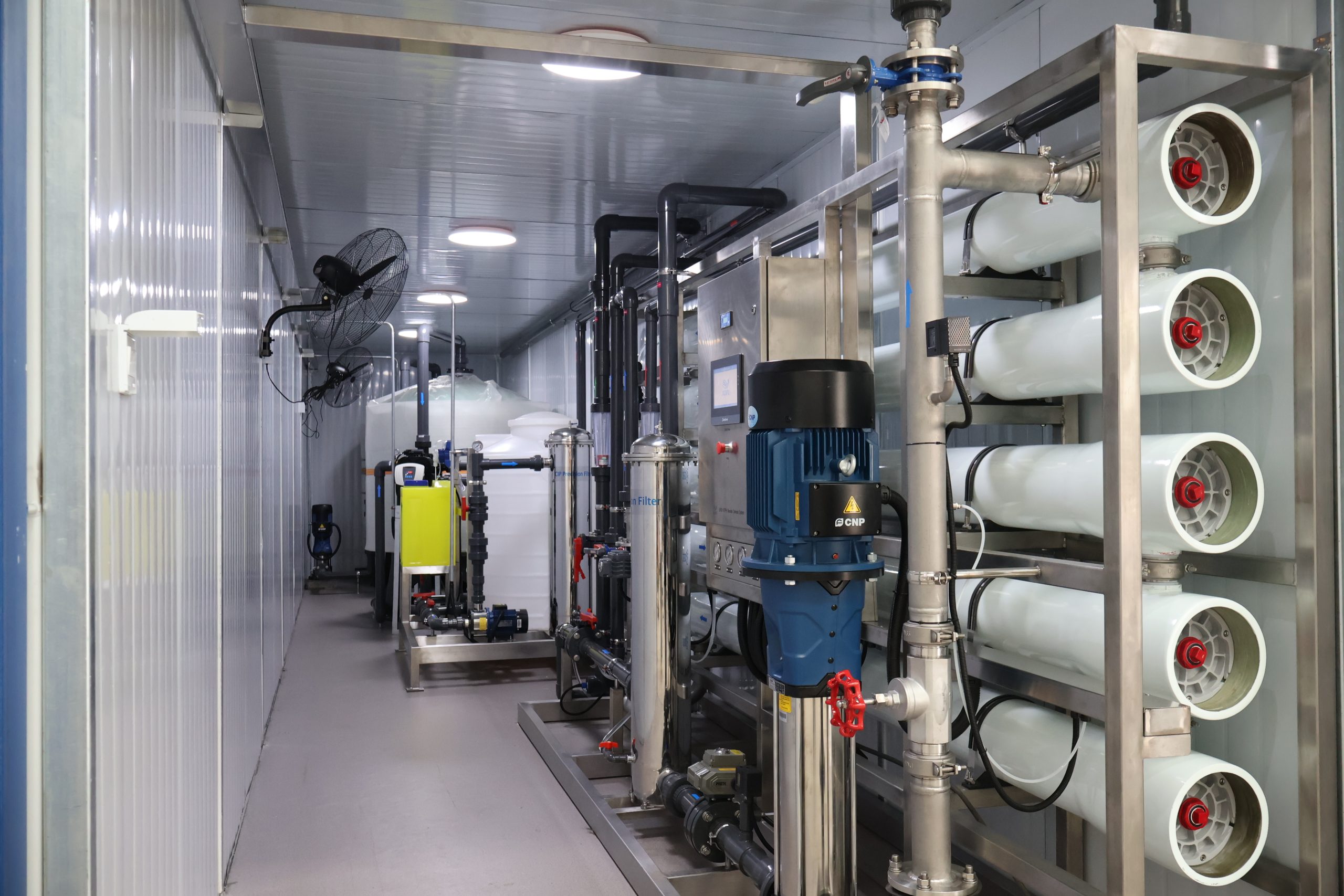

The details of containerized water treatment system

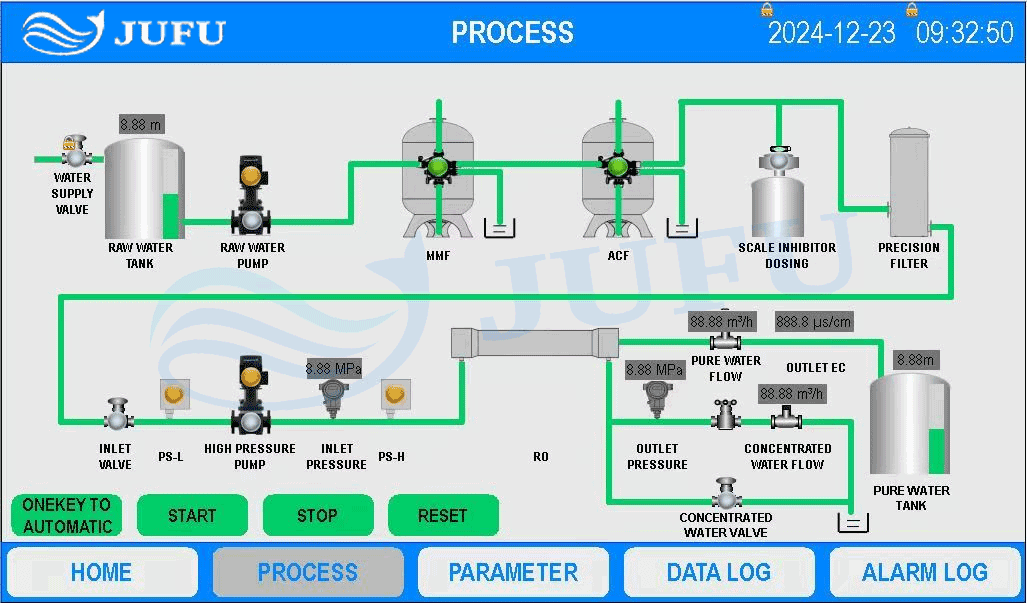

PLC Touchscreen Operation

RO Feed Water Condition

The RO system should be operated under the following raw water conditions. It is very important to check that your raw water is within these limits.RO feed water conditions that do not meet these criteria will result in permanent and irreversible contamination and damage to the membrane packaged elements. Contamination and damage resulting from this condition is not covered by the system warranty.

• Water temperature: 4℃-45℃
• PH range: 4-9
• Hardness: 17mg/L (in CaCO3）
• Turbidity: SDI<5
• TDS<1500mg/L
• Iron<0.1mg/L
• Free chlorine: not detectable
• Manganese<0.5mg/L
• Organic matters<1mg/L
• Tap water

Tap water has been chlorinated as a result of disinfection, so a filter must be installed before RO to remove residual chlorine from the water. The reverse osmosis membrane on this commercial RO system is a polyamide composite membrane, which is irreversibly damaged if free chlorine is present in the source water. Damage to the membrane due to chlorine in the source water is not covered by the warranty.

• Hard water

Raw water hardness must be below 17mg/L. To meet this requirement, it is recommended that a suitable water softener or scale inhibitor dosing device be installed before the reverse osmosis system. Damage to the reverse osmosis membrane due to scaling caused by excessive raw water hardness is not covered by the warranty.

• Raw Water Temperature and Water Production

The rated water production of the equipment is calculated at a raw water temperature of 25℃. The water production of the reverse osmosis system decreases as the raw water temperature decreases. Generally, for every 1℃ decrease in water temperature, the water production will decrease by 3%.

• Iron in raw water

As soon as the iron content in the raw water is greater than 0.1mg/L, you will need to add a filter for iron removal.

Specification of 15TPH reverse osmosis system

Model	JFRO-15T
Producing Capacity	15m³/h	RO membrane	8″
Recovery Rate	75%	Power Supply	Tri-phase: 110/220/380/415V  50/60Hz
Operating Pressure	1.0-1.6MPa
Desalination Rate	99%	Power Consumption	21KW/22KW
Filtration Accuracy	0.0001 micron	Control Type	Manual control / Auto control
Feed Water Quality	SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L
Features	Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water.
