500LPH Double Stage Reverse Osmosis Water Filter Plant
1. Model: JFRO-500L
2. ISO9001 & CE certified
3. Capacity: 500liter/hour
4. Desalination rate: 99.5%
5. Recovery rate: 50%
6. Membrane size: 4040
7. Control type: Auto
8. Applicable industries: Hotels, Food & Beverage factory, Farms, Restaurant,Water shop
9. Pre-shipment testing: Provided
10. Installation guidance: Online Video meeting
11. Warranty: 12 months
12. Package: Wooden case
13. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
500LPH Double Stage Reverse Osmosis Water Filter Plant
The 500LPH Double-stage reverse osmosis (RO) water treatment system is a compact, high-efficiency purification solution designed for industries requiring stringent water quality standards.It ensures superior corrosion resistance and hygiene compliance. This system utilizes dual-stage RO technology to remove over 98% of dissolved salts, heavy metals, organic compounds, and bacteria, delivering ultra-pure water at a rate of 0.5 tons per hour. Ideal for food/beverage production, pharmaceutical labs, and electronics manufacturing, it combines durability with advanced pretreatment (multimedia/activated carbon filters) and optional post-treatment (UV sterilization) for tailored purity. Automated controls and energy-efficient operation further enhance its reliability for small-scale industrial applications.
Key Features
Dual-Stage Purification: Two-pass RO process significantly reduces residual impurities, achieving low conductivity critical applications.
Compact & Smart: With a small footprint and automated controls, it ensures hassle-free operation and low maintenance.
Versatile Applications: Suitable for laboratories, small-scale production lines, and boiler feed water where high-purity water is essential.

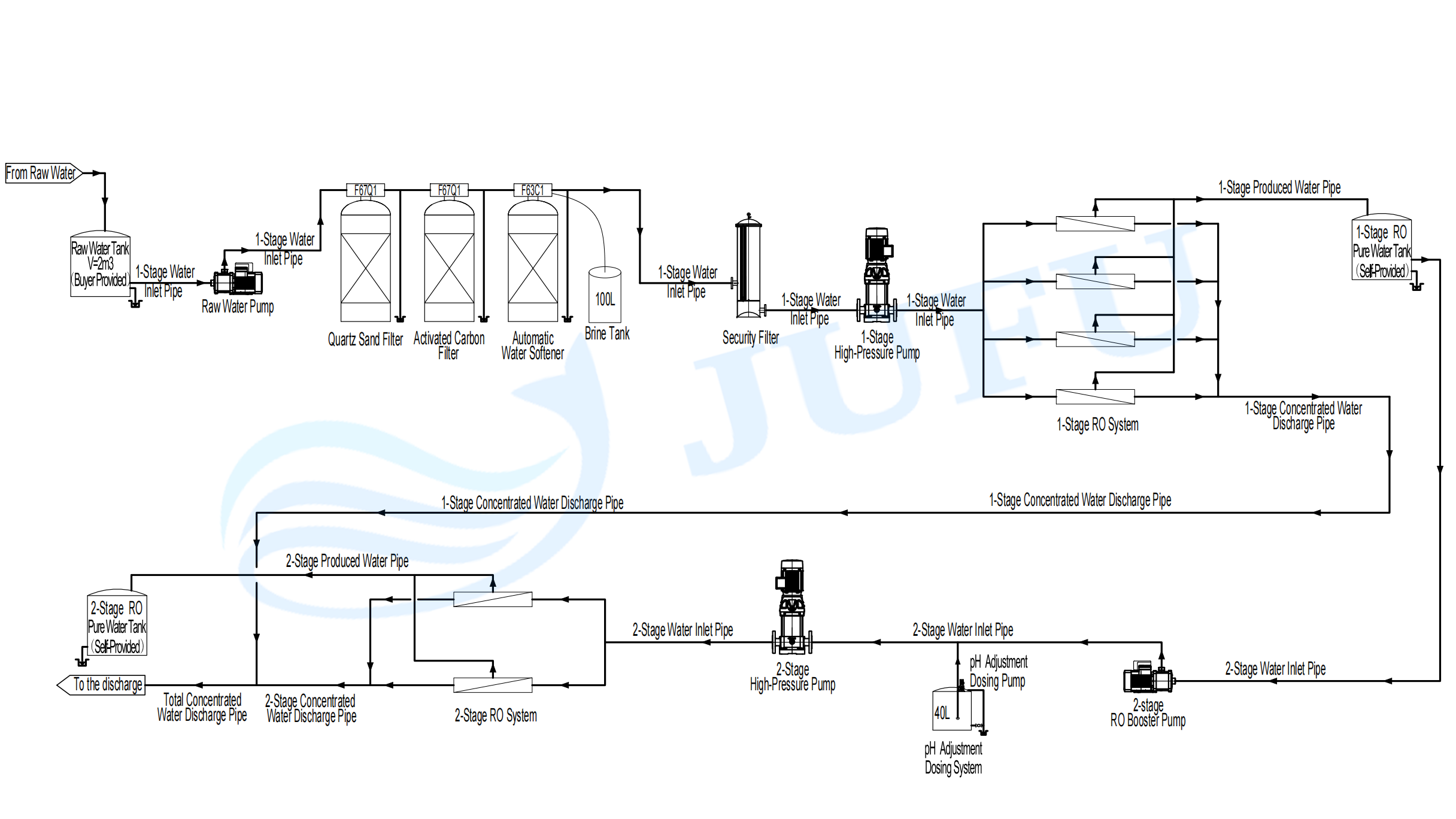

The working flow chart of commercial reverse osmosis system
Specification
| Model | JFRO-II-500L | ||
| Producing Capacity | 500L/H | RO membrane | 4” |
| Recovery Rate | 70% | Power Supply | Single-phase: 110/120/220V 50/60Hz |
| Operating Pressure | 1.0-1.6MPa | Tri-phase: 110/220/380/415V 50/60Hz | |
| Desalination Rate | 99% | Power Consumption | 5KW/5KW |
| Filtration Accuracy | 0.0001 micron | Control Type | Manual control / Auto control |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | ||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||
Technical Highlights
Pretreatment: Includes quartz sand filters, activated carbon adsorption, and optional softeners to protect RO membranes.
Post-Treatment Options: UV sterilizers or ozone generators eliminate microbial regrowth
Eco-Friendly: Low energy consumption and minimal wastewater discharge align with sustainable practices.
Typical Applications:
✔ Electronics manufacturing (semiconductor/PCB production)
✔ Pharmaceutical water
✔ Laboratory research
✔ Food & beverage processing
