450LPH RO Seawater Desalination Water Treatment System

What is Seawater Desalination Equipment?

Seawater desalination equipment is a device used to convert seawater into drinkable water or freshwater for other uses. As global water resources become scarcer, especially in arid regions, seawater desalination technology is becoming increasingly important.

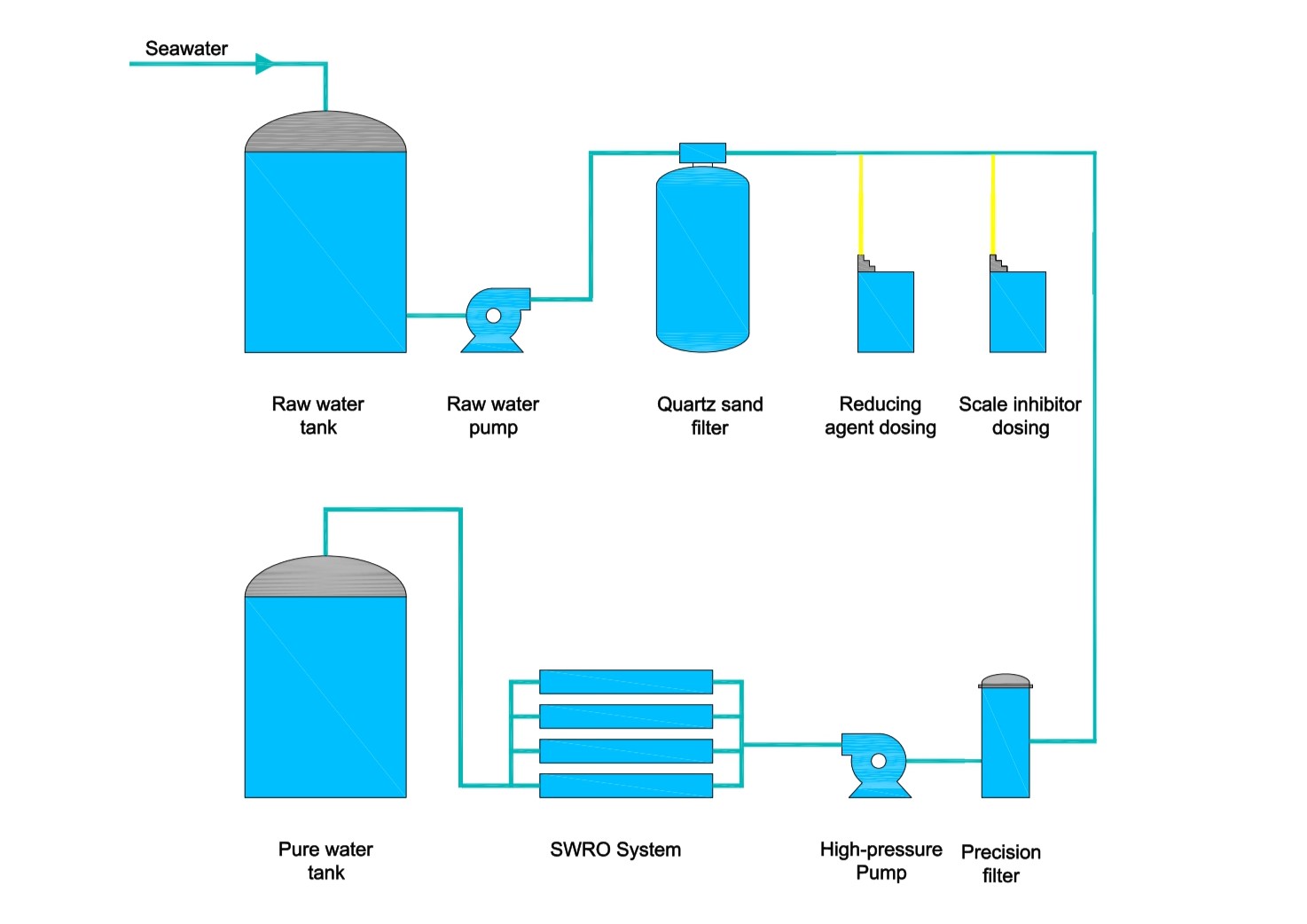

The working flow chart of Seawater Desalination

Specification of seawater desalination

Model	JFSW-450L
Producing Capacity	450L/H	RO membrane	4”
Recovery Rate	40%	Power Supply	Single-phase:  110/120/220V    50/60Hz
Operating Pressure	3-5.5MPa		Tri-phase: 110/220/380/415V  50/60Hz
Desalination Rate	98%	Power Consumption	9kW
Filtration Accuracy	0.0001 micron	Control Type	Manual control / Auto control
Feed Water Quality	SDI＜5    Free Chlorine Concentration<0.1mg/L     TDS＜40000mg/L

Working Principle

Seawater desalination primarily involves removing salts and other impurities from water. Common methods include:

1. Reverse Osmosis (RO):Uses a semi-permeable membrane, pushing seawater through it under high pressure. Water molecules can pass through while salts and contaminants are blocked.
2. Distillation:Heats seawater to evaporate it, then condenses the vapor to collect freshwater. Common types include Multi-Effect Distillation (MED) and Multi-Stage Flash Distillation (MSF).
3. Electrodialysis:Utilizes an electric field to separate charged ions, making it suitable for low-salinity water.

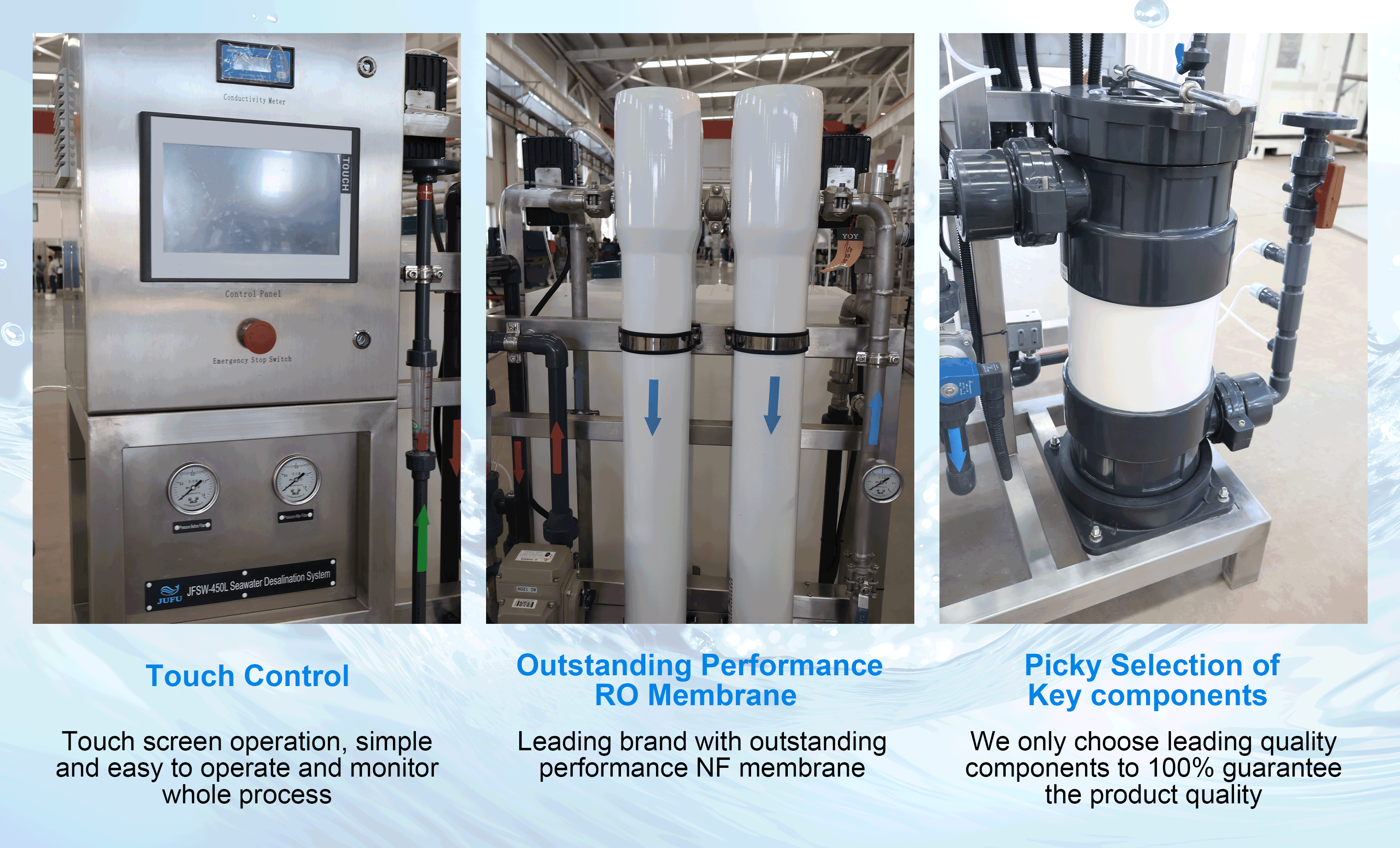

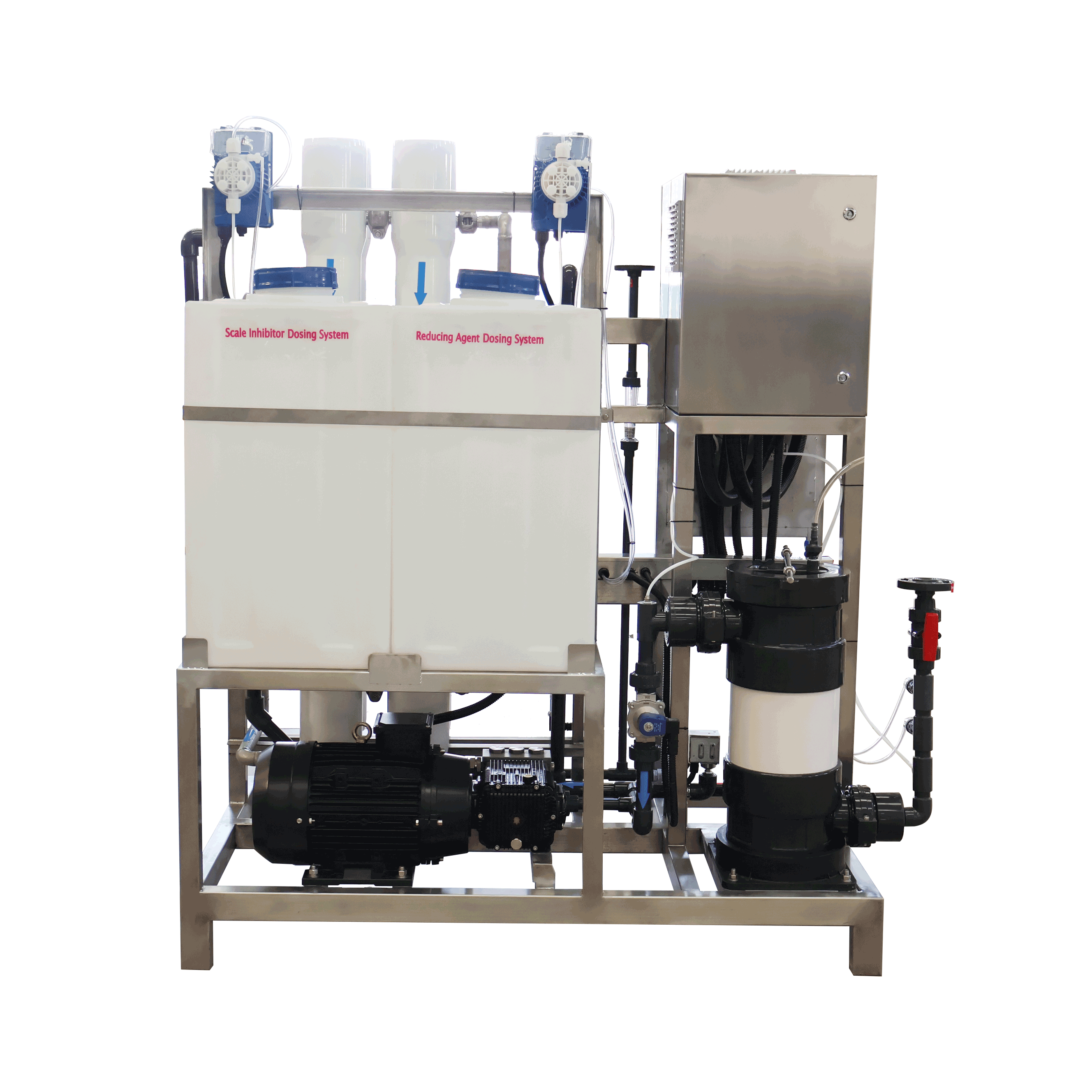

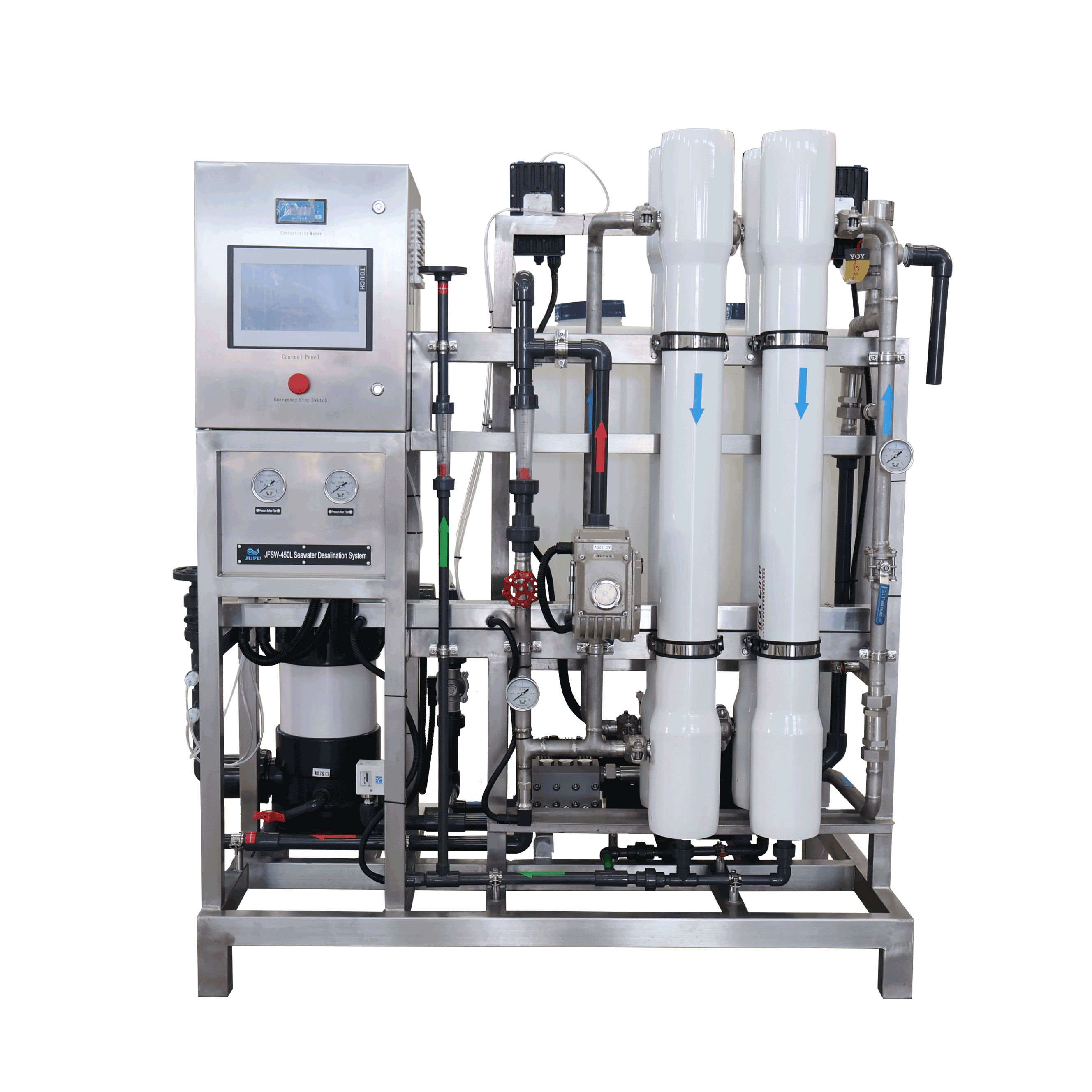

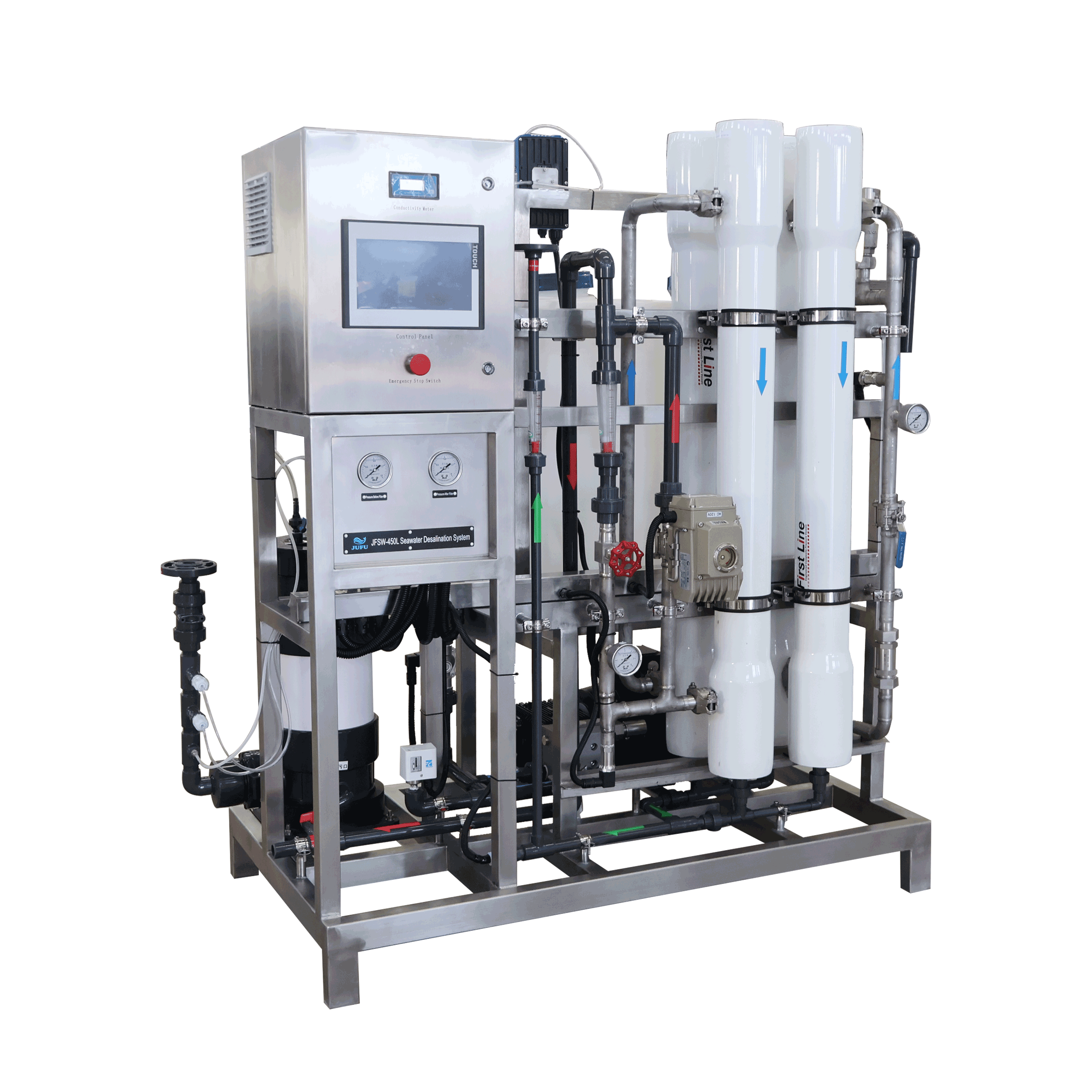

The details of 450LPD RO seawater desalination

Equipment Components

Seawater desalination equipment typically includes the following parts:

• Intake System: Draws in seawater.
• Desalination Unit: Such as reverse osmosis membranes or distillation units.
• Energy Recovery System: Increases energy efficiency and reduces energy consumption.
• Freshwater and Brine Separation System: Separates treated freshwater from concentrated brine.

Advantages

• Effectively provides freshwater, especially in areas lacking water resources.
• Technology is increasingly mature and widely applicable.

Seawater desalination equipment plays a vital role in global water resource management, particularly in addressing climate change and the growing demand for water.

Applications of Seawater Desalination Equipment

1. Drinking Water Supply:Provides safe drinking water for residents in water-scarce or arid regions, ensuring basic living needs are met.
2. Agricultural Irrigation:Supplies freshwater for irrigation, especially in areas with limited water resources, enhancing agricultural yields.
3. Industrial Water Use:Meets the water needs of industrial production, satisfying requirements for manufacturing, cooling, and cleaning processes.
4. Tourism and Resort Areas:In coastal regions with a developed tourism industry, desalination equipment can provide the necessary water resources for resorts and hotels.
5. Vessels and Offshore Platforms:Supplies potable water for ships and offshore drilling platforms, ensuring the basic needs of personnel are met.
6. Emergency Water Supply:Quickly provides drinkable water in the event of natural disasters or water source contamination, aiding recovery in affected areas.

These application scenarios highlight the importance of seawater desalination technology in addressing water resource scarcity.
