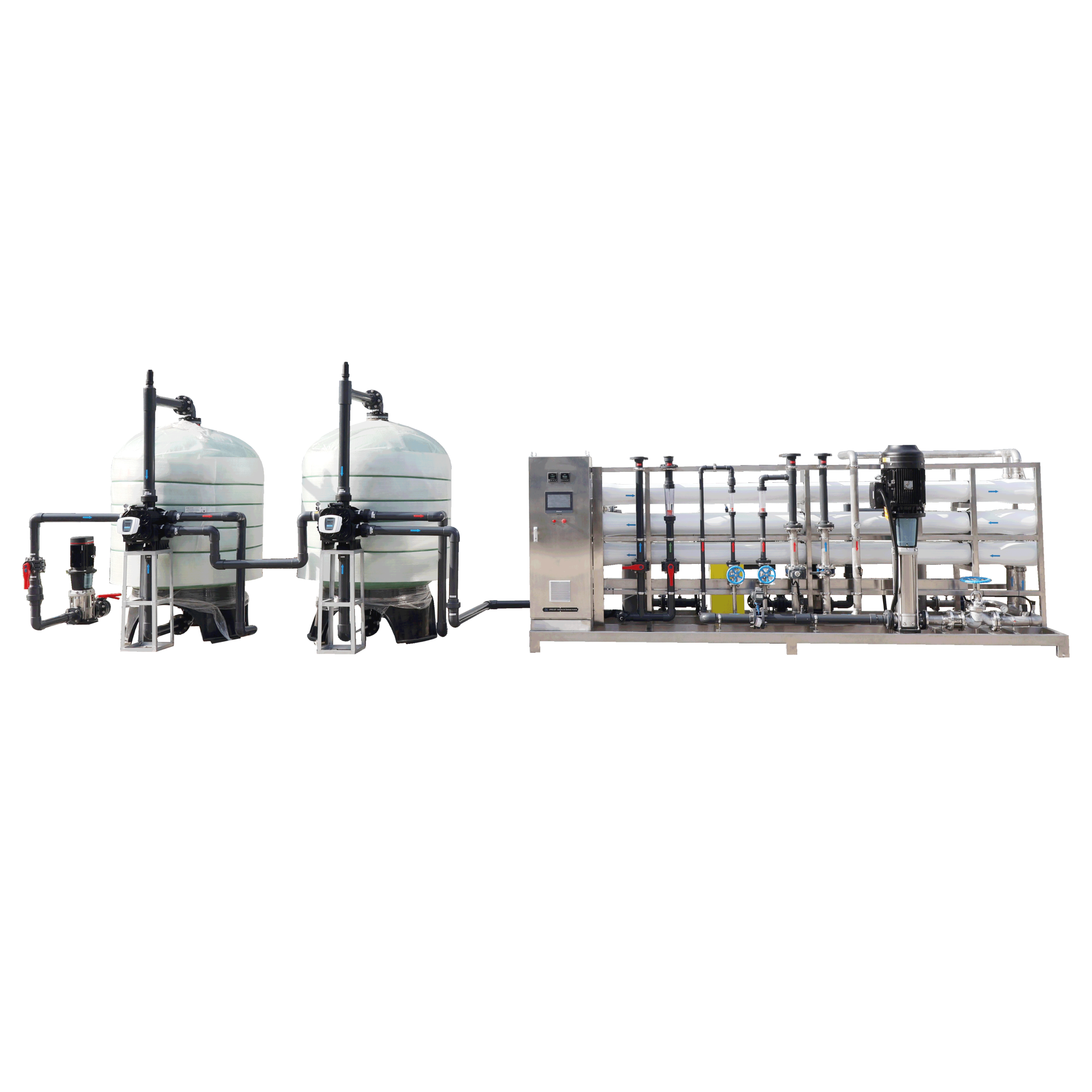

20T/H Reverse Osmosis Water Purification System
1. Model: JFRO-20T
2. ISO9001 & CE certified
3. Capacity: 20t/hour
4. Desalination rate: 99%
5. Recovery rate: 75%
6. Membrane size: 8040
7. Control type: Auto
8. Applicable industries: Hotels, Food & Beverage factory, Farms, Restaurant,Water shop
9. Pre-shipment testing: Provide
10. Installation guidance: Online Video meeting
11. Warranty: 12 months
12. Package: Wooden case
13. Export market: United States, Spain, Poland, Italy, Australia, Canada, Mexico, Philippines, Peru, Saudi Arabia, Jamaica, Columbia, Chile, Peru,Bolivia, Argentina,Indonesia,Malaysia,Vietnam, Nigeria, Tanzania, Kenya, Morocco,Kyrgyzstan, Russia
**Elevate Your Bottled Water Quality with Advanced RO Technology**
Designed specifically for bottled water manufacturers, our 20 T/H Reverse Osmosis (RO) System delivers exceptional purity, efficiency, and reliability—critical for meeting stringent drinking water standards and consumer trust.
Why Reverse Osmosis is Indispensable for Bottled Water?
Removes 99.9% of contaminants (including bacteria, viruses, dissolved solids, and heavy metals) through a 0.0001-micron semipermeable membrane, ensuring product safety and crystal-clear taste.
*CONSISTENT QUALITY*: Stable water production with low conductivity (<10 μS/cm) and TDS levels, maintaining uniform taste profiles across every batch.
*HIGH EFFCIENCY*: Equipped with energy-saving pumps and automatic flushing systems, reducing operational costs while maximizing output (20 tons per hour) to meet large-scale production demands.
*REGULATORY COMPLIANCE*: Complies with global standards (FDA, WHO, EU Drinking Water Directive) and supports easy integration into existing bottling lines.
Technical Highlights
-8-inch high-rejection RO membranes
-PLC control with touchscreen interface for real-time monitoring and auto-shutdown protection
-Integrated multimedia filtration + activated carbon adsorption + antiscalant dosing to extend membrane lifespan
The details of JFRO-20T Reverse Osmosis System
Specification
| Model | JFRO-20T | ||
| Producing Capacity | 20m³/h | RO membrane | 8″ |
| Recovery Rate | 75% | Power Supply | Tri-phase: 220/380/415V 50/60Hz |
| Operating Pressure | 0.5-1.6MPa | ||
| Desalination Rate | 99% | Power Consumption | 40KW/36KW |
| Filtration Accuracy | 0.0001 micron | Control Type | Manual control / Auto control |
| Feed Water Quality | SDI＜5 Free Chlorine Concentration<0.1mg/L TDS＜2000mg/L | ||
| Features | Removes impurities such as inorganic ions, bacteria, viruses, organic matter and colloids from raw water. | ||

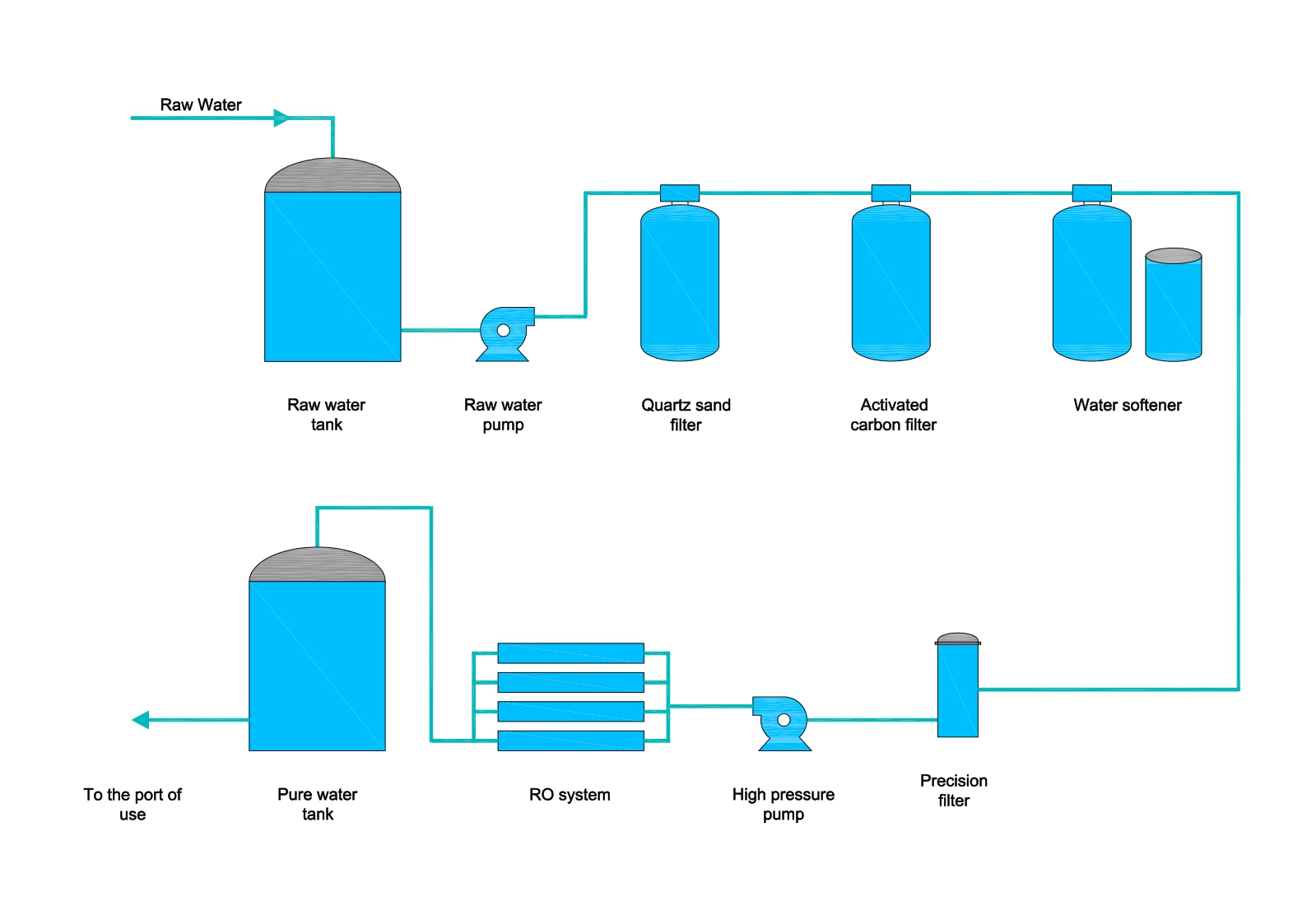

The working flow chart of reverse osmosis system
Technical Highlights
-8-inch high-rejection RO membranes
-PLC control with touchscreen interface for real-time monitoring and auto-shutdown protection
-Integrated multimedia filtration + activated carbon adsorption + antiscalant dosing to extend membrane lifespan
Your Partner in Bottled Water Excellence
Whether you’re producing mineral water, purified water, or functional beverages, our RO system is engineered to enhance product quality, reduce waste, and boost your brand reputation. Backed by 24/7 technical support and a 12-month warranty, we ensure seamless operation from installation to long-term maintenance.
